COLLECTOR ASSEMBLY
Install Cover and Bags

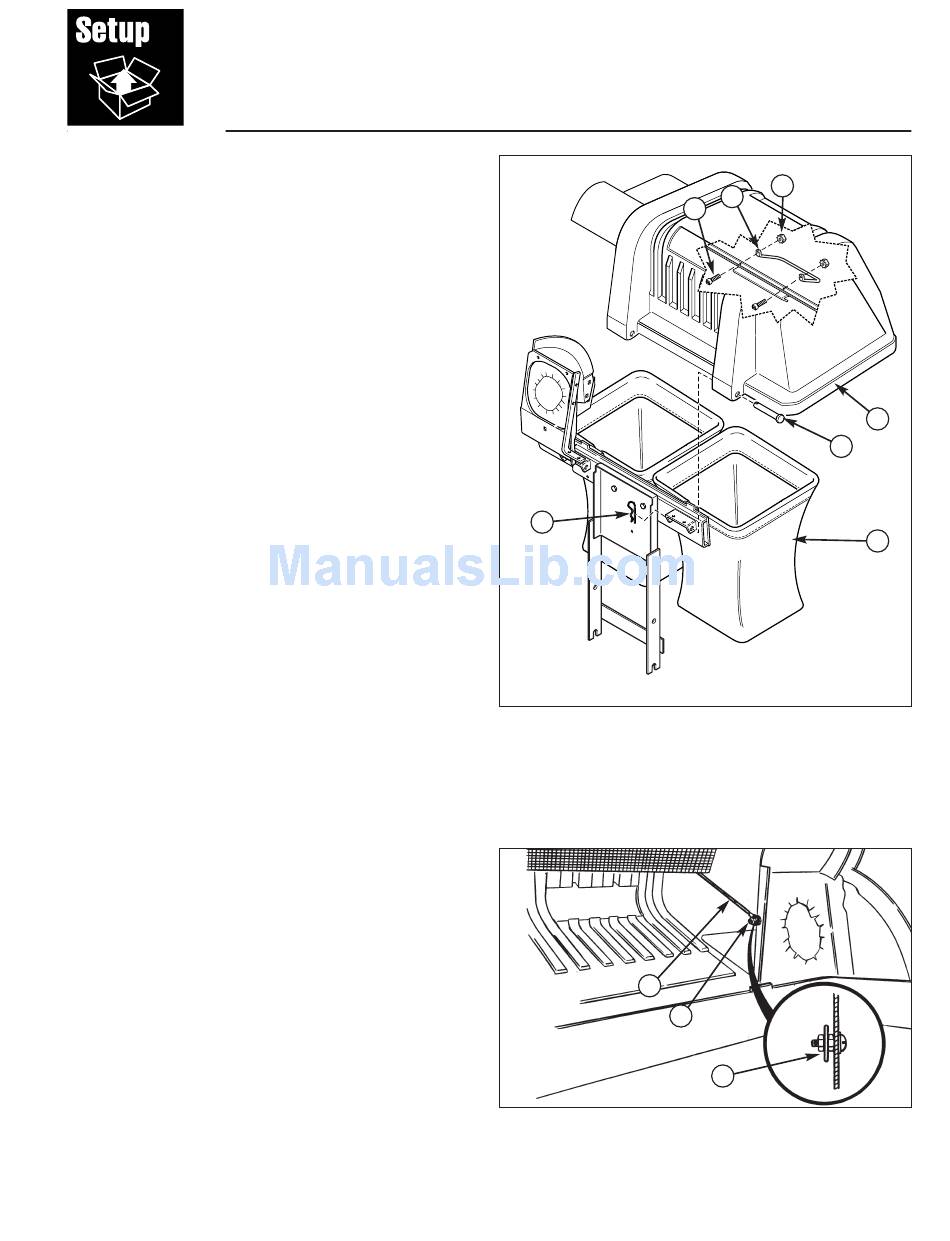

1. Hang the bags (F, Figure 7) on the horizontal sup-
port.
Note: If desired, the bags can be lined with 30 gallon
trash bags for easy disposal.
2. Install the handle (B) inside the cover. Secure with
two #10-32 x 1/2 screws (C) and nuts (A).
3. Rest the cover assembly (D) on the bags (F).
4. Install the two hinge pins (E) and secure with hair pin
clips (G).
5. Open the cover and fasten cable (A, Figure 8) to sup-
port (B). The looped cable end fits over washer (C).
NOTE: Push the hair pin clips all the way on or they will
be bent by the hinge when the cover is opened.
Initial Collector
G
Figure 7. Install Catcher
A. Nut, #10-32
B. Handle
C. Screw, #10-32 x 1/2
D. Cover
A
Figure 8. Install Cable
A. Cable
B. Support
13
Assembly
A
B
C
E
E. Hinge Pin
F. Bags
G. Hair Pin Clip
B
C
C. Washer
D
F
