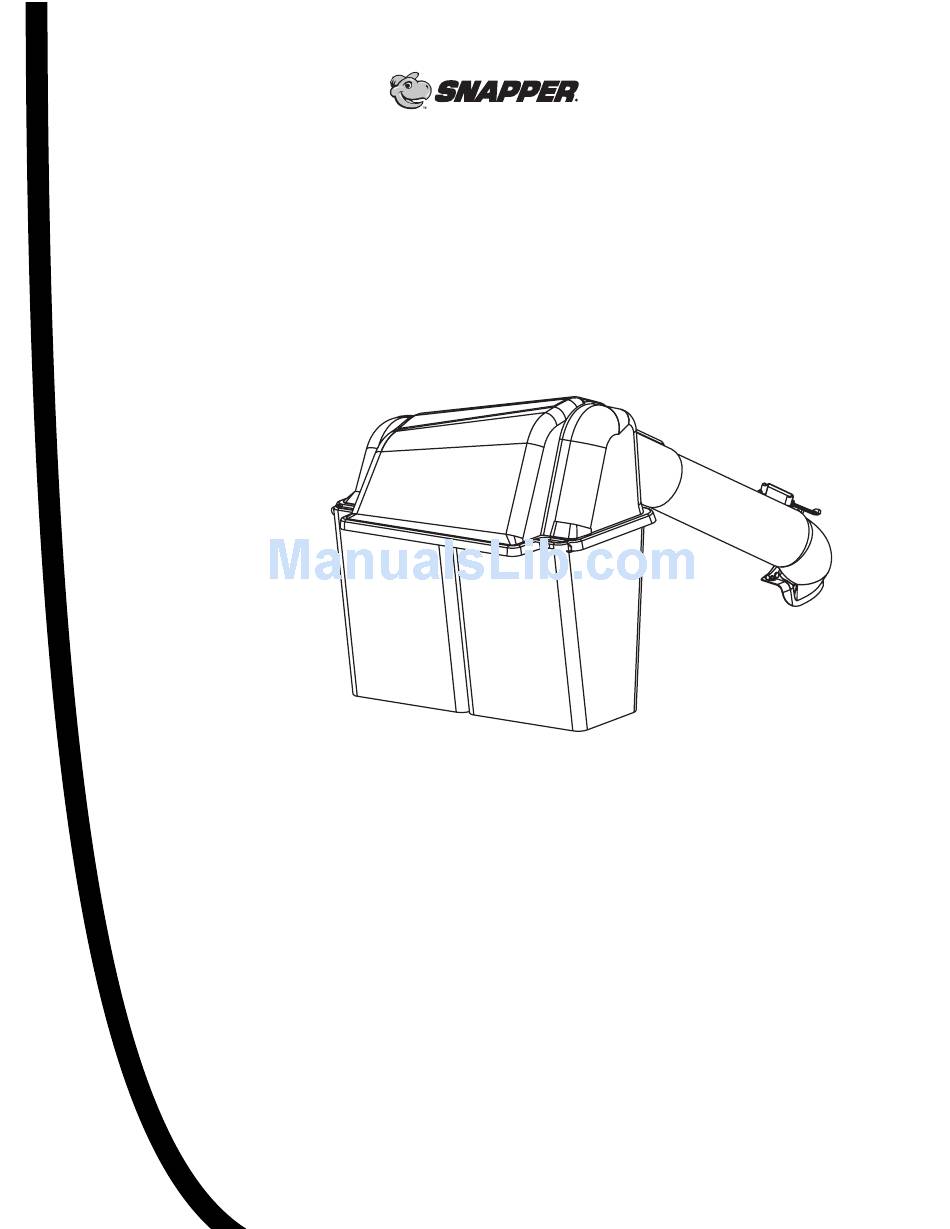

ATTACHMENT
OPERATOR'S
MANUAL
Clean Sweep
Twin Catcher
Clean Sweep Twin Catcher
Mfg. No.
Description
1695164
Clean Sweep Twin Catcher
1733420
Rev. 00
Rev. Date 05/2006
TP 100-4297-00-AT-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1695164 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper 1695164

Summary of Contents for Snapper 1695164

  • Page 1 ATTACHMENT OPERATOR’S MANUAL Clean Sweep Twin Catcher Clean Sweep Twin Catcher Mfg. No. Description 1695164 Clean Sweep Twin Catcher 1733420 Rev. 00 Rev. Date 05/2006 TP 100-4297-00-AT-N...

  • Page 3: Table Of Contents

    Safety Rules & Information General Warnings...2 Safety Decals ...2 General Operating Instructions Before Operation ...3 Mowing with the Catcher ...3 After Operation ...3 Storing the Grass Catcher ...3 Initial Installation Hitch Installation ...4 Component Installation...5 Bag, Chute and Tube Installation ...8 Normal Removal &...

  • Page 4: Safety Rules & Information

    Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The triangle in text signifies important cautions or warnings which must be followed.

  • Page 5: General Operating Instructions

    Mowing with the Catcher Always operate with throttle at full speed when mowing. Grass should be cut often, and not too short. If grass is too long or lush it may be necessary to keep ground speed to a minimum or to cut only half the width of the mower to prevent clogging.

  • Page 6: Initial Installation

    Initial Installation WARNING Before beginning any service work turn off the PTO, set the parking brake, turn off the ignition, and disconnect the spark plug wire(s). Initial Installation Hitch Installation 1. Slide the 5/16-18 speed nut (A, Figure 1) onto rear frame support (E) through square hole (C) so that the threaded side (B) is on the inside of tractor.

  • Page 7: Component Installation

    Figure 3. Install Pin A. Lower Chute B. Locknut, 1/4-20 C. Pin D. Carriage Bolt, 1/4-20 x 5/8 Component Installation PIN INSTALLATION ON LOWER CHUTE 1. Insert the head of pin (C, Figure 3) through front hole of lower chute (A). Secure with 1/4-20 x 5/8 carriage bolt (D) and 1/4-20 lock nut (B) as shown.

  • Page 8: Latch Installation

    Latch Installation INSTALL LATCH AND HINGE TO COVER ASSEMBLY 1. Install the latch (B, Figure 6) to the cover assembly (A) securing with #10-24 x 5/8 screws (D) and #10-24 locknuts (C) as shown. 2. Install the hinge (E) to cover assembly securing with 1/4-20 x 1/2 screws (G) and 1/4-20 locknuts (F).

  • Page 9: Tube Installation

    Figure 8. Install “U” Tube A. “U” Tube B. Channel Assembly C. Carriage Bolts, 5/16-18 x 1-3/4 D. Nuts, Nylock, 5/16-18 E. “L” Channel F. Saddle Brackets G. Capscrew, 5/16-18 x 3/4 INSTALL TUBES AND END PLUGS 1. Install the center tube (A, Figure 9) to RH side of channel assembly (B) as shown.

  • Page 10: Bag, Chute And Tube Installation

    Bag, Chute and Tube Installation Bag, Chute and Tube Installation INSTALL COLLECTOR BAGS 1. Raise the cover (A, Figure 12). 2. Slide collector bags (B) onto tubes (C) with the white bar towards the rear. Note: It may be necessary to fold seat forward to allow cover to stay in the raised position.
  • Page 11 CONNECTING UPPER & MIDDLE TUBE 1. Slide the upper tube (A, Figure 14) into cover (B) aligning ridge (C) with cutout (D) as shown. 2. Slide middle tube (D, Figure 15) into upper tube (E). 3. Slide middle tube (D) over boot (A). Pull strap (B) and place hole completely over pin (C).

  • Page 12: Collector Installation

    Normal Removal & Installation Normal Removal & Installation Collector Installation Note: See previous pages for more detailed installation and operation instructions if necessary. 1. Lift discharge deflector up (E, Figure 16). 2. Place the front hole of the lower chute (A) onto carriage bolt (C) as shown.

  • Page 13: Normal Removal & Installation Collector Installation

    Figure 17. Normal Installation & Removal Collector Removal WARNING OPERATION WITHOUT BAGGER For operation without bagger, the mower deflector MUST be properly installed in the down position and retained by the spring latch. 1. Unhook strap (K, Figure 17) from pin (I). Remove middle and upper tube (J) from cover (B).
  • Page 14 Simplicity Mfg. Inc. - Snapper Products 535 Macon Street McDonough, GA 30253 www.Snapper.com © Copyright 2006 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
