Snapper 1695169 Operator's Manual

Snapper 1695169 Operator's Manual

Clean sweep triple catcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

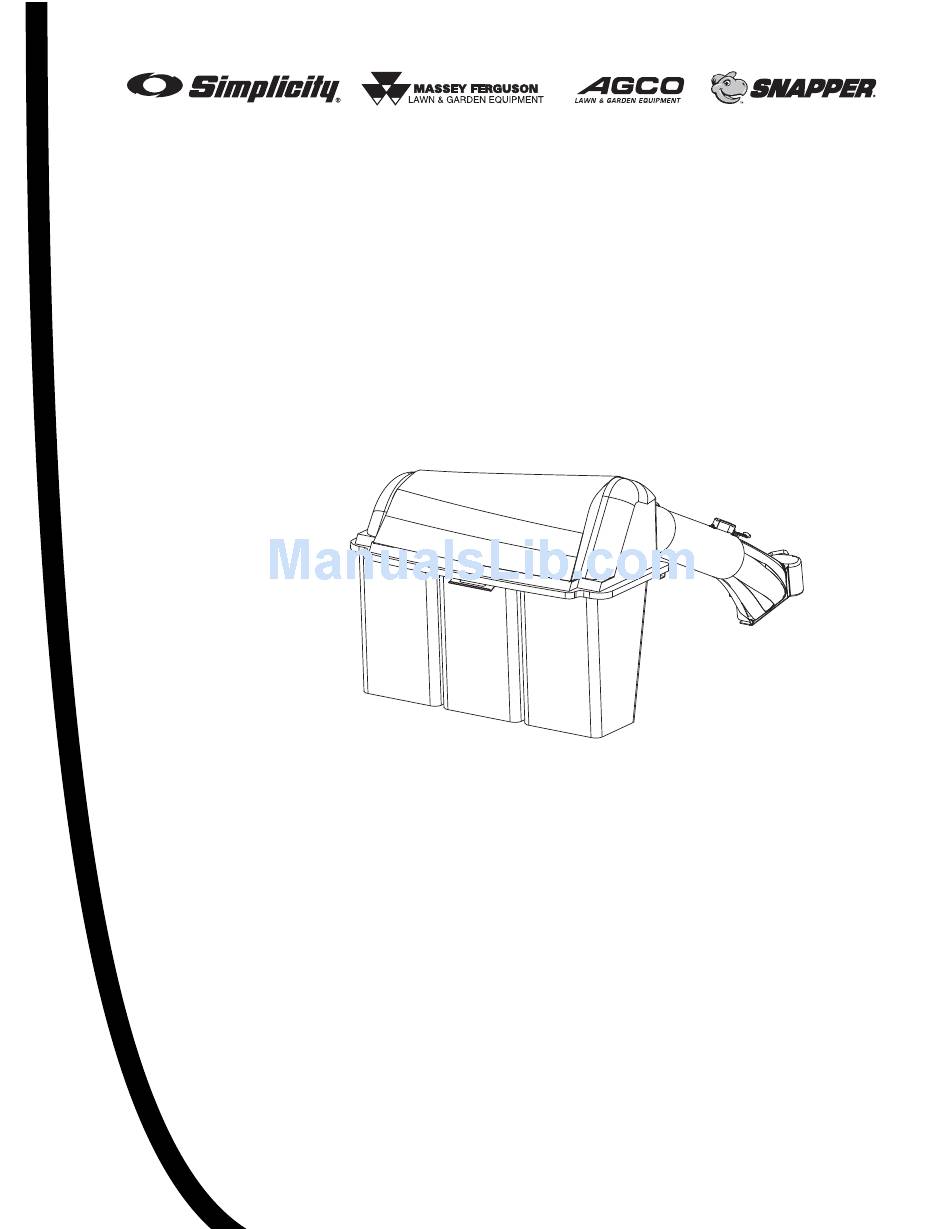

ATTACHMENT
OPERATOR'S
MANUAL
Clean Sweep
Triple Catcher
Clean Sweep Triple Catcher
Mfg. No.
Description
1695169
Clean Sweep Triple Catcher
1733866
Rev. 04
Rev. Date 12/2006
TP 100-4405-04-AT-SMAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1695169 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper 1695169

Summary of Contents for Snapper 1695169

  • Page 1 ATTACHMENT OPERATOR’S MANUAL Clean Sweep Triple Catcher Clean Sweep Triple Catcher Mfg. No. Description 1695169 Clean Sweep Triple Catcher 1733866 Rev. 04 Rev. Date 12/2006 TP 100-4405-04-AT-SMAN...
  • Page 2 THIS PAGE INTENTIONALLY BLANK (FOR PLACEMENT ONLY - DO NOT PRINT)

  • Page 3: Table Of Contents

    Safety Rules & Information General Warnings...2 Safety Decals ...2 Storing the Grass Catcher ...3 General Operating Information Before Operation ...3 Mowing with the Catcher ...3 Required Accessories...3 After Operation ...3 Storing the Grass Catcher ...3 Initial Installation Hitch Installation ...4 Baffle Installation Baffle Installation ...5 Component Installation...

  • Page 4: Safety Rules & Information

    Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The trian- in text signifies important cautions or warnings which must be followed.

  • Page 5: Storing The Grass Catcher

    Mowing with the Catcher Always operate with throttle at full speed when mowing. Grass should be cut often, and not too short. If grass is too long or lush it may be necessary to keep ground speed to a minimum or to cut only half the width of the mower to prevent clogging.

  • Page 6: Initial Installation

    Initial Installation WARNING Before beginning any service work turn off the PTO, set the parking brake, turn off the ignition, and disconnect the spark plug wire(s). Initial Installation HITCH INSTALLATION 1. Slide the 5/16-18 speed nut (A, Figure 1) onto rear frame support (E) through square hole (C) so that the threaded side (B) is on the inside of tractor.

  • Page 7: Baffle Installation

    Baffle Installation 1. Determine which baffle to use. See Figure 4 Chart. 2. Lift side discharge chute (H, Figure 4). 3. Insert baffle (F) through discharge opening and posi- tion baffle into place. 4. Tighten carriage bolts (A) and nuts (E) on baffle (F). 5.

  • Page 8: Component Installation

    Component Installation Figure 5. Install Mounting Plate A. Mounting Plate B. Locknuts, 5/16-18 C. Carriage Bolts, 5/16-18 x 5/8 Component Installation INSTALL MOUNTING PLATE 1. Install mounting plate (A, Figure 5) to mower deck as shown. Secure with 5/16-18 x 5/8 carriage bolts (C) and 5/16-18 locknuts (A).

  • Page 9: Install Bag And Cover Support

    INSTALL UPRIGHT SUPPORT TO HITCH 1. Install the upright support (B, Figure 8) to hitch (A) and secure with 3/8-16 x 1 capscrews (C) and lock- nuts (D) as shown. Figure 8. Install Upright Support A. Hitch B. Upright Support C.

  • Page 10: Cover And Bag Installation

    Cover and Bag Installation INSTALL COVER ASSEMBLY 1. Attach cover assembly (B, Figure 10) to bag support bracket (A) using hinge pivots (E). Secure cover using cover hinge pins (C) and hair pins (D) as shown. Figure 10. Install Cover Assembly A.
  • Page 11 Figure 12. Install Lower Tube A. Lower Chute Rod B. Mounting Plate C. Rubber Strap D. Discharge Deflector E. Locknut LOWER TUBE INSTALLATION 1. Lift discharge deflector up (D, Figure 12). 2. Insert lower chute rod (A) into mounting plate (B). 3.

  • Page 12: Normal Removal & Installation Collector Installation

    Normal Removal & Installation Figure 15. Normal Installation & Removal Normal Removal & Installation Collector Installation Note: See previous pages for more detailed installation and operation instructions if necessary. 1. Mount the hitch support assembly (A, Figure 15) onto rear tractor frame. 2.

  • Page 13: Collector Removal

    Collector Removal WARNING OPERATION WITHOUT BAGGER For operation without bagger, the mower deflector MUST be properly installed in the down position and retained by the spring latch. 1. Unhook strap (P, Figure 15) from pin (O). Slide mid- dle tube (H) into upper tube (G) and remove middle tube (H).
  • Page 14 M A N U F A C T U R I N G , I N C . Simplicity Mfg. Inc.500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.SimplicityMfg.com Simplicity Mfg. Inc. - Snapper Products 535 Macon Street McDonough, GA 30253 www.Snapper.com Briggs & Stratton Yard Power Products Group Copyright ©...
