Snapper Z-VAC 7600004 User Manual

Clamshell grass catcher kit for nzm mid mount riders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

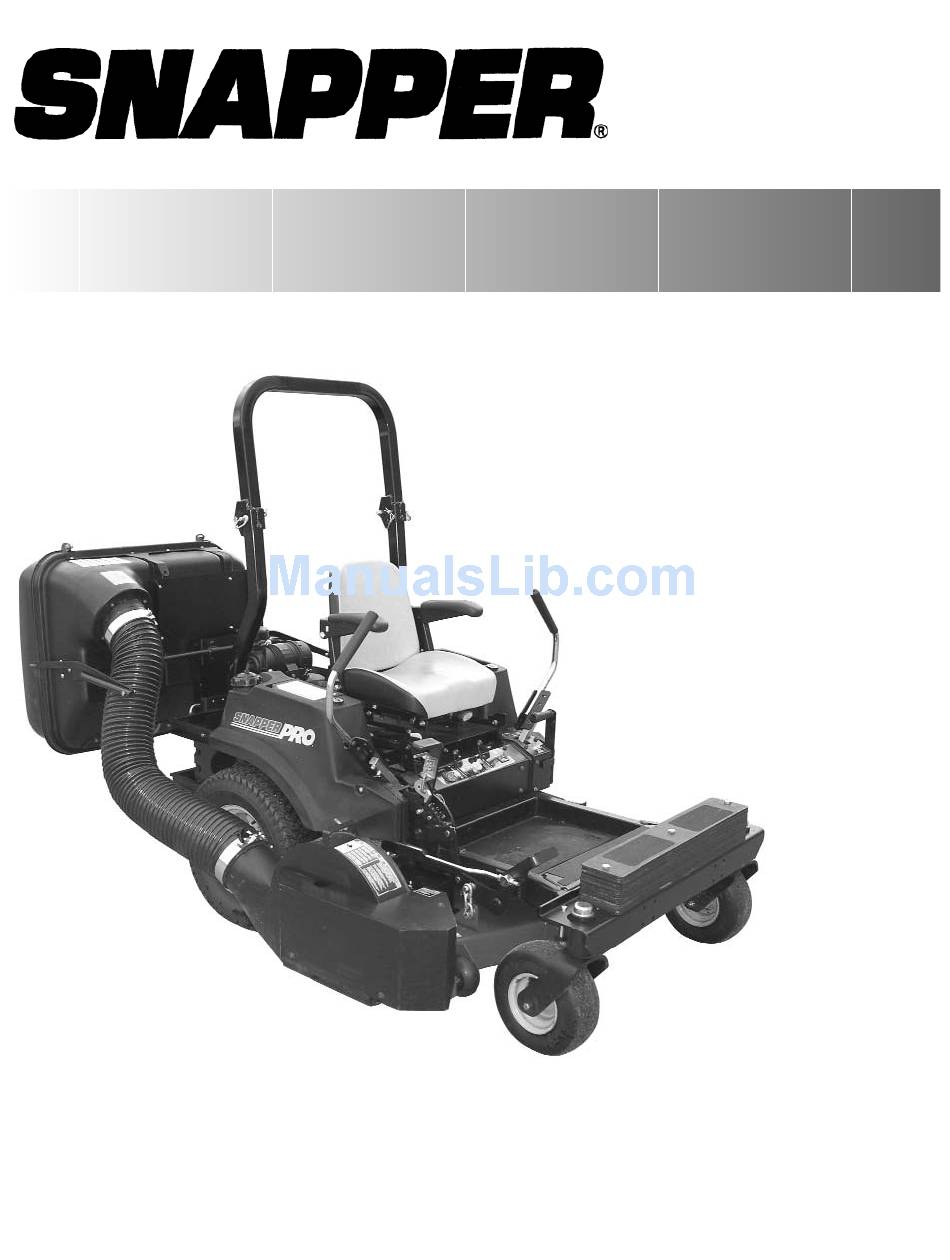

A A S S S S E E M M B B L L Y Y I I N N S S T T R R U U C C T T I I O O N N S S
O O P P E E R R A A T T O O R R ' ' S S M M A A N N U U A A L L
P P A A R R T T S S L L I I S S T T
Manual No. 7011299 (I.R. 03/11/05)

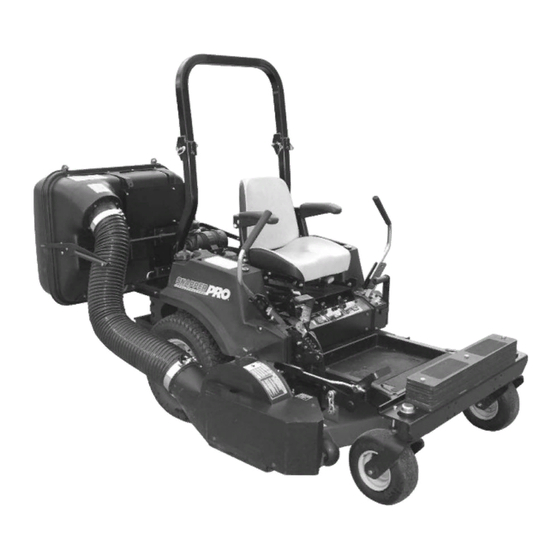

Actual product may differ from product pictured above
Z Z
- - V V A A C C
Clamshell
Grass Catcher
Kit for NZM
Mid Mount
Riders
Models covered:
Includes Clamshell, Blower
and Weight Kits
48" Kit
52" Kit
61" Kit
P/N 7600003
P/N 7600004
P/N 7600005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-VAC 7600004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snapper Z-VAC 7600004

Summary of Contents for Snapper Z-VAC 7600004

  • Page 1 A A S S S S E E M M B B L L Y Y I I N N S S T T R R U U C C T T I I O O N N S S O O P P E E R R A A T T O O R R ' ' S S M M A A N N U U A A L L P P A A R R T T S S L L I I S S T T Actual product may differ from product pictured above...
  • Page 2 preliminaries C C o o n n g g r r a a t t u u l l a a t t i i o o n n s s ! ! You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for, your new Z-Vac Grass Catcher Kit will provide years of dependable service.

  • Page 3: Slope Operation

    safety rules regarding outdoor power equipment I I M M P P O O R R T T A A N N T T ! ! R R E E A A D D C C A A R R E E F F U U L L L L Y Y T T H H E E F F O O L L L L O O W W I I N N G G S S A A F F E E T T Y Y R R U U L L E E S S B B E E F F O O R R E E A A S S S S E E M M B B L L I I N N G G O O R R O O P P E E R R A A T T I I N N G G U U N N I I T T .

  • Page 4: Maintenance And Storage

    safety rules regarding outdoor power equipment CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and its activity. Never assume that children will remain where you last saw them. -- Keep children out of the mowing area and under the watchful care...

  • Page 5: Blower Kit Installation

    BLOWER KIT INSTALLATION STEP 1: Remove pin, rod and spring securing dis- charge deflector to mower deck, and remove deflector. Set rod and pin aside for future assem- bly step. Store deflector for future use. IMPOR- TANT: Never operate mower without discharge deflector or grass catcher securely in place.
  • Page 6 unit assembly REMOVE BOLTS, THEN REMOVE COVER CHECK TO SEE THAT BELT IS ON PULLEYS DRILL HOLES & INSTALL BOLTS INSTALL BOLTS STEP 6a: Remove bolts securing impeller pulley cover to blower, and remove cover. STEP 6b: Check to see that blower belt is routed around impeller pulley and idler pulleys after belt is installed onto deck pulley.

  • Page 7: Weight Kit Installation

    STEP 9: Install belt guard between pulley guard and belt guard support clip on front part of blower mount. Secure with two 5/16 nylon wing nuts. Tighten nuts securely. WEIGHT KIT INSTALLATION !! Warning: Weight kit must be installed prior to installing clamshell kit.
  • Page 8 unit assembly RAISE UNIT HOOK CLAMSHELL MOUNT ONTO BUMPER MOUNT PLATE PINS SLIDE ROD THROUGH HOLES MAKE SURE BEND IS UP BOLT ARM TO INSIDE OF HANDLE PUSH HANDLE DOWN TO LOCK COVER STEP 13: Hook bottom of clamshell mount onto pins in bottom of bumper mount plate, then raise clamshell assembly up against bumper mount.
  • Page 9 Tighten both clamps securely. INTRODUCTION Follow operation and maintenance instructions in the Operator’s Manual provided with the Snapper Mid- Mount Z-Rider. GRASS CATCHER OPERATION 1. Select desired cutting height. Choose a setting that will not attempt to cut off too much at once, overloading the machine.

  • Page 10: If The Grass Catcher Becomes Clogged

    6. Grass is too wet from rain or dew – allow grass to dry. 7. Blades are dull or worn – inspect blades and replace as necessary. Use only genuine SNAPPER replacement blades. 8. Deck, blower, or hose has clipping build up – clean all clippings from all internal surfaces.

  • Page 11: Year Limited Warranty

    For two (2) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
  • Page 12 unit breakdown & parts list...
  • Page 13 Item Part No. Description 3046782 WELDMENT, Blower Belt Guard 91121 NUT, 1/2-13 Hex Nyloc 90183 WASHER, 1/2" Flat SAE 3021097 PULLEY, A Groove Idler, Steel 44995 IDLER STUD (3/8-24 thread) 91804 FLAT WASHER, 9/16 Type Narrow 14409 FLANGE BEARING, 9/16" I.D. (powdered metal) 10776 RETAINING RING, 1/2"...
  • Page 14 unit breakdown & parts list...
  • Page 15 Item Part No. Description 3036323 BELT, A Section, 91.125" effective length (used on 48” & 52” Models) 3022844 BELT, A Section, 92.0" effective length (used on 61” Models) 3037161 WELDMENT, Belt Cover, Deck (used on 48” & 52” Models) 33867 WELDMENT, Belt Cover, Deck (used on 61”...
  • Page 16 unit breakdown & parts list...
  • Page 17 TUBE ADAPTER WELDMENT 91814 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR5 91315 WASHER, 1/4” Split Lock 91576 NUT, 1/4-20 Hex 3022833 HOSE, Snapper Fast Vac 3022875 HOSE CLAMP, Upper 3022876 HOSE CLAMP, Lower 11293 BRACKET, Handle Mount 27198 BOLT, 3/8-16 x 1” Hex Flange...
  • Page 18 unit breakdown & parts list...
  • Page 19 Item Part No. Description 50551 STANDOFF, Bumper Mount (weldment) 1723436 WELDMENT, Bumper Mount Plate 91318 SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5 91601 NUT, 5/16-18 Hex Flange Lock, GR5 1717085 ROD, Hitch 15067 HAIR PIN, 3/32 x 1-1/2" Cotter unit breakdown &...
  • Page 20 unit breakdown & parts list...
  • Page 21 Item Part No. Description 3027501 CHANNEL, Weight Mounting 3046992 BAR, Clamp 91131 BOLT, 3/8-16 x 4" Hex Tap, GR5 90546 NUT, 3/8-16 Hex Center Lock, GR5 or B 3027502 BAR, Weight 3031021 SCREW, 1/2-13 x 4-1/2" Hex Head Cap 90619 NUT, 1/2-13 Hex Flange Lock 3032142 PAD, Anti-Skid, Self-Adhesive...
  • Page 22 unit breakdown & parts list...
  • Page 23 Item Part No. Description 3079231 DECAL, Z-Vac 3046850 DECAL, Danger, Fast-Vac 3046851 DECAL, Warning, Fast Vac 3046883 DECAL, Warning, Fast-Vac 73956 DECAL, Warning, Billboard (on clamshell unit) unit breakdown & parts list S S n n a a p p p p e e r r Z Z - - V V a a c c D D e e c c a a l l G G r r o o u u p p...
  • Page 24 A A S S S S E E M M B B L L Y Y I I N N S S T T R R U U C C T T I I O O N N S S O O P P E E R R A A T T O O R R ' ' S S M M A A N N U U A A L L P P A A R R T T S S L L I I S S T T - - V V A A C C...
