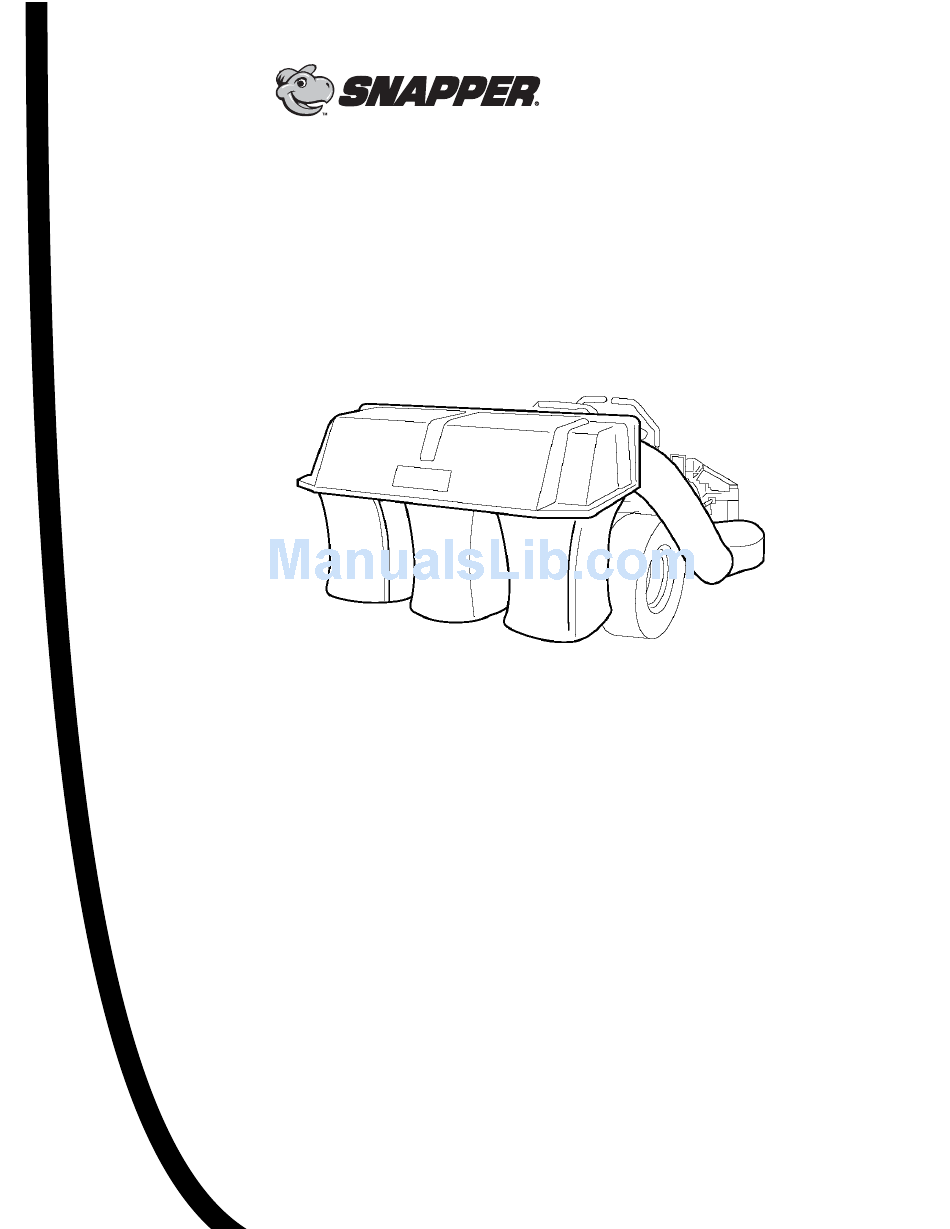

ATTACHMENT
OPERATOR'S
MANUAL
Triple Bag Catcher
with Turbo

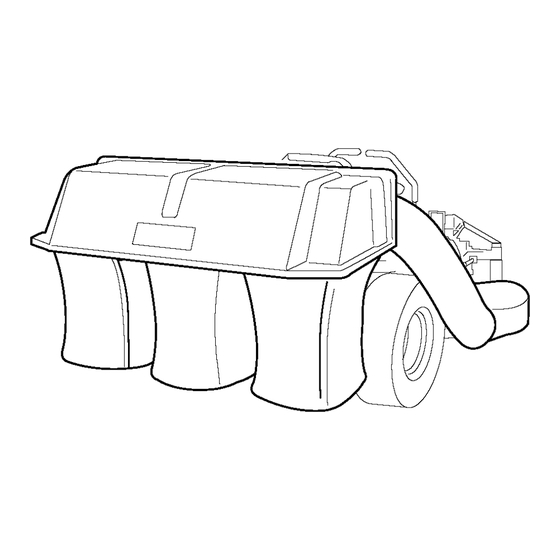

Triple Bag Catcher with Turbo
(For use on 54-Inch Mower Deck)
Mfg. No.
Description
1695464
Triple Bag Catcher with Turbo
1736061
Rev. 00
Rev. Date 7/2008
TP 100-4881-00-AT-UV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1695464 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper 1695464

Summary of Contents for Snapper 1695464

  • Page 1 ATTACHMENT OPERATOR’S MANUAL Triple Bag Catcher with Turbo Triple Bag Catcher with Turbo (For use on 54-Inch Mower Deck) Mfg. No. Description 1695464 Triple Bag Catcher with Turbo 1736061 Rev. 00 Rev. Date 7/2008 TP 100-4881-00-AT-UV...
  • Page 2 THIS PAGE INTENTIONALLY BLANK (FOR PLACEMENT ONLY - DO NOT PRINT)

  • Page 3: Table Of Contents

    Safety Rules and Information General Warnings...2 Safety Decals ...3 Attachment Safety Decal ...3 General Operating Instructions Before Operation ...4 Operating with the Turbo ...4 Operating without the Turbo ...4 Mowing with the Catcher ...4 After Operation ...5 Storing the Grass Catcher ...5 Turbo Installation Install Front Baffles ...6 Install Hook Plate...6...

  • Page 4: Safety Rules And Information

    Safety Rules and Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The triangle in text signifies important cautions or warnings which must be followed.

  • Page 5: Safety Decals

    SAFETY DECALS This unit has been designed and manufactured to pro- vide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effec- tively, we have placed several safety labels on the unit to remind you of this important information while you are...

  • Page 6: General Operating Instructions

    General Operating Instructions Operating with the Turbo • Grass should be cut often but not too short. If grass is too long or lush, it may be necessary to keep ground speed to a minimum or to cut only half the width to prevent clogging.

  • Page 7: After Operation

    CAUTION Before you begin operating the unit be certain you have read all of the safety and operational information of this instruction sheet, as well as the Operator’s Manual for the tractor and any other attachments. Never operate on slopes greater than 17.6% (10°).

  • Page 8: Turbo Installation

    Turbo Installation Install Front Baffles 1. Remove and discard existing baffle from the left side of the mower deck. It is replaced by turbo baffles. 2. Install the left (23-1/2” long) baffle and right (26-1/2” front baffle (A and B, Figure 1) using six carriage bolts (C), lockwashers (D), and nuts (E).

  • Page 9: Install Deflector And Hinge

    Install Deflector and Hinge 1. Install the new deflector and hinge assembly (A, Figure 3) onto 54-inch mower deck. 2. Secure front of hinge bracket using a new carriage bolt (B), cylinder spacer (C), lockwasher (D), and nut (E). 3. Secure back of hinge bracket using carriage bolt (F), tapered spacer (G), cylinder spacer (C), lockwasher (D), and nut (E).

  • Page 10: Install Hitch Plate

    Turbo Installation / Triple Catcher Bag Installation Install Hitch Plate 1. Place the hitch plate (A, Figure 6) onto the bumper (B) and loosely tighten with U-bolts (C) and locknuts (D). 2. After the hitch plate is properly centered on the bumper, tighten the locknuts securely.

  • Page 11: Install Cover Assembly

    Install Cover Assembly 1. Attach the collector cover (A, Figure 9) to bag and cover support (B) using hinge pivots (C). 2. Secure the collector cover using cover hinge pins (D) and hair pins (E). Figure 9. Install Cover Assembly A.

  • Page 12: Connect Upper And Lower Tubes

    Triple Catcher Bag Installation Connect Upper and Lower Tubes 1. Slide upper tube (A, Figure 11) into opening in col- lector cover (B). 2. Slide lower tube (C) over opening in turbo assembly (D). 3. Slip one end of rubber strap (E) through clamp (F) on lower tube.

  • Page 13: Install Carrier And Front Weight(S)

    Install Carrier and Front Weight(s) 1. Install carrier (A, Figure 12) as shown and secure with capscrews (B) and locknuts (C). 2. Secure weight(s) (D) using rod (E) and safety clips (F). Figure 12. Install Carrier and Front Weight(s) A. Carrier, Weight D.
  • Page 16 Briggs & Stratton Power Products Group, L.L.C. Copyright © 2008 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved www.BRIGGSandSTRATTON.com...
