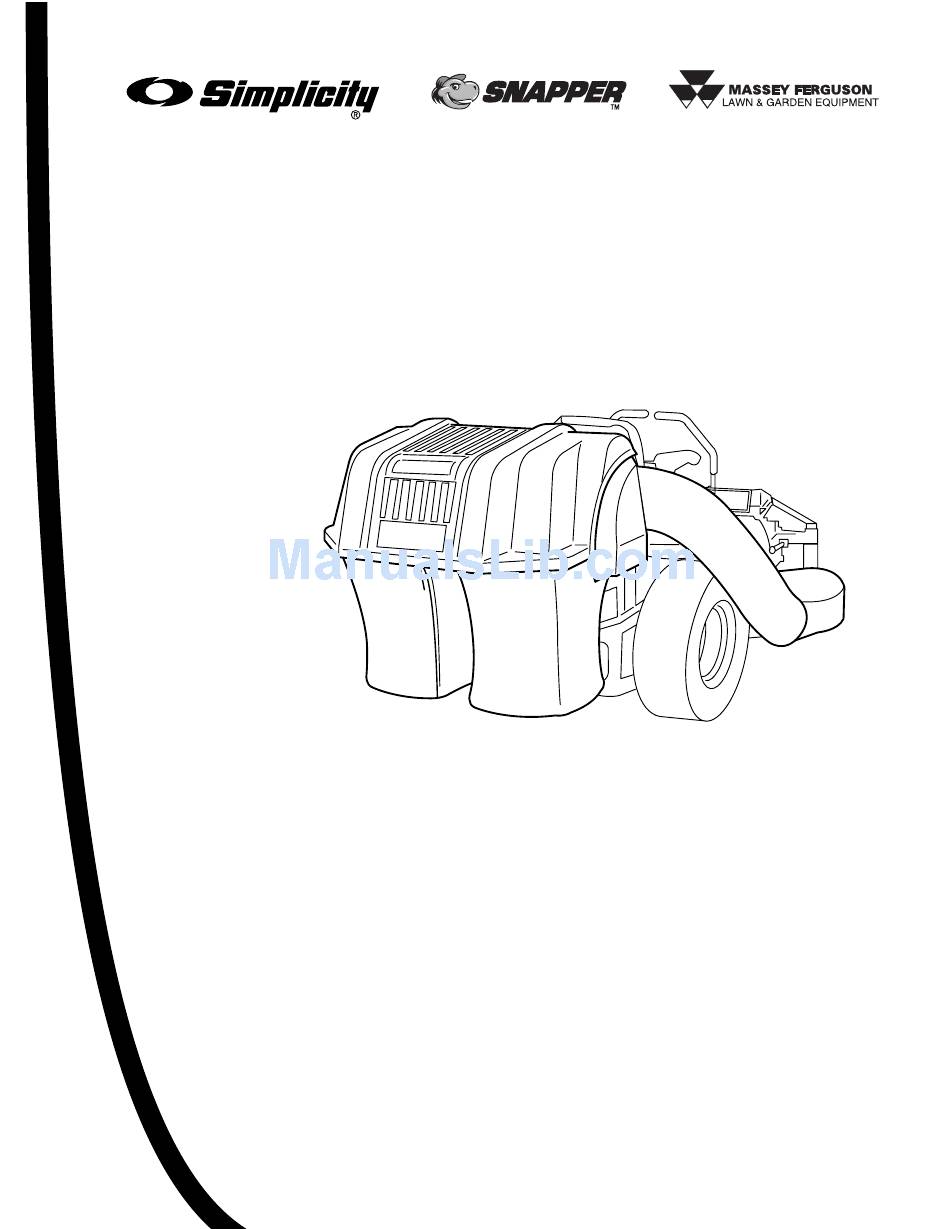

- Page 1 ATTACHMENT OPERATOR’S MANUAL Clean Sweep Twin Catcher Clean Sweep Twin Catcher Mfg. No. Description 1695064 Clean Sweep Twin Catcher 1732614 Rev. 00 Rev. Date 01/2006 TP 100-4267-00-AT-SMN...
- Page 2 THIS PAGE INTENTIONALLY BLANK (FOR PLACEMENT ONLY - DO NOT PRINT)
-
Page 3: Table Of Contents
Safety Rules & Information General Warnings...2 Safety Decals ...2 Storing the Grass Catcher ...3 General Operating Information Before Operation ...3 Mowing with the Catcher ...3 Required Accessories...3 After Operation ...3 Storing the Grass Catcher ...3 Initial Turbo Installation Contents Turbo Installation Kit...4 Turbo Installation ...5 Initial Counter Balance &... -
Page 4: Safety Rules & Information
Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The trian- in text signifies important cautions or warnings which must be followed. -
Page 5: Storing The Grass Catcher
MOWING WITH THE CATCHER Always operate with throttle at full speed when mowing. Grass should be cut often, and not too short. If grass is too long or lush it may be necessary to keep ground speed to a minimum or to cut only half the width of the mower to prevent clogging. -
Page 6: Initial Turbo Installation
Initial Turbo Installation 27 34 Ref. Qty. Description CAPSCREW, Hex Head, 5/16-18 x 1 WASHER, 5/16 SUPPORT, Belt Cover NUT, Hex, Nylon Lock, #10-24 ROD, Deflector SCREW, Truss Head, #10-24 x 3/4 PIVOT ASSEMBLY NUT, Hex Whizlock, 5/16-18 NUT, Nylock, Hex 5/16-18 COVER-BELT 50"... -
Page 7: Turbo Installation
TURBO INSTALLATION Remove Mower Deck Remove the mower deck from the unit (see Operator’s Manual for instructions). Deflector Removal 1. Remove and retain the carriage bolts, washers, lock- washers, and nuts (A, Figure 3) holding the deflector rod to the deck. Remove and discard the deflector rod. - Page 8 Initial Turbo Installation Install Deflector 1. See Figure 6. Drill four 13/64” holes from the bottom of the deflector at the pre-molded drill points (A, bot- tom of deflector). 2. Attach the deflector to the support rod wire-form using four #10-14 x 3/4 truss head screws and nylock nuts.
- Page 9 Figure 9. Install Idler Assembly A. Idler Assembly. B. Belt Guide C. Capscrew, 5/16-18 x 7/8 Install Idler Assembly & Belt Guider 1. See Figure 9. Remove and discard the two taptite screws from locations (E). 2. Insert two 5/16-18 x 7/8 capscrews (C) through the mower deck and arbor.
-
Page 10: Install Mounting Bracket
Initial Turbo Installation 50" Figure 13. Belt Cover Plates A. Belt Cover Plate for 50” Mower B. Belt Cover Plate for 44” Mower WARNING When the turbo blower assembly is removed from the mower deck, the deflector MUST be properly installed. - Page 11 Install Turbo Blower 1. Install the turbo unit by sliding the turbo pivot rod into the pivot bracket at the front edge of the mower deck (A, Figure 17). 2. Tilt the deflector (B) UP. 3. Rotate the turbo unit (C) into position on the dis- charge of the mower deck, and “latch”...
-
Page 12: Initial Counter Balance & Front Weight Carrier Installation
Initial Counter Balance & Weight Carrier Installation Figure 1. Counter Balance Installation COUNTER BALANCE & WEIGHT CARRIER INSTALLATION Counter Balance Installation 1. Remove hair pin (C, Figure 1) from trunnion (B). Remove trunnion (B) from rear deck lift lever (A). Mark or measure trunnion position on rear deck lift lever. -
Page 13: Initial Hitch & Tube Installation
Figure 1. Install Hitch Plate (Flat Style Bumper) A. Hitch Plate E. Upper & Lower B. Heat Shield Bumper C. Capscrews, F. Washer 1/2-13 x 1-1/4 G. New Holes, 17/32” D. Locknuts, 1/2-13 H. Existing RH Holes HITCH & TUBE INSTALLATION Install Hitch Plate and Back Plate Flat Style Bumper 1. -
Page 14: Assemble Tubes & Deflector
Initial Hitch & Tube Installation Figure 4. Install Back Plate (Flat Style Bumper shown) A. Back Plate and Support C. Hitch Plate B. Hair Pin D. Rod A. Upper Tube B. Middle Tube C. Lower Tube D. Nut, Nylock, 10-24 x 3/4 E. -
Page 15: Initial Collector Assembly
COLLECTOR ASSEMBLY Install Cover and Bags 1. Hang the bags (F, Figure 7) on the horizontal sup- port. Note: If desired, the bags can be lined with 30 gallon trash bags for easy disposal. 2. Install the handle (B) inside the cover. Secure with two #10-32 x 1/2 screws (C) and nuts (A). -
Page 16: Normal Removal & Installation Removing The Grass Catcher
Normal Removal & Installation A. Tubes B. Hair Pin Clip C. Bags D. Clevis Pin E. Cover F. Clip Figure 9. Normal Removal & Installation WARNING OPERATION WITHOUT TURBO & CATCHER For operation without turbo, the mower deflector MUST be properly installed in the down position and retained by the spring latch (See Turbo Operator’s Manual). -
Page 17: Installing The Grass Catcher
Installing the Grass Catcher 1. Set the back plate & support (A, Figure 11) on pins of hitch plate (C). Secure with rod (D) and hair pin (B). 2. Install the bags (C, Figure 12). 3. Install the cover (E, Figure 12). Secure with the cle- vis pins (F) and hair pin clips (B). - Page 18 M A N U F A C T U R I N G , I N C . 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.SimplicityMfg.com Simplicity Mfg. Inc. - Snapper Products 535 Macon Street McDonough, GA 30253 www.Snapper.com ©...
