Cover and Bag Installation

INSTALL COVER ASSEMBLY

1. Attach cover assembly (B, Figure 10) to bag support
bracket (A) using hinge pivots (E). Secure cover
using cover hinge pins (C) and hair pins (D) as
shown.
B
D
E
A
C

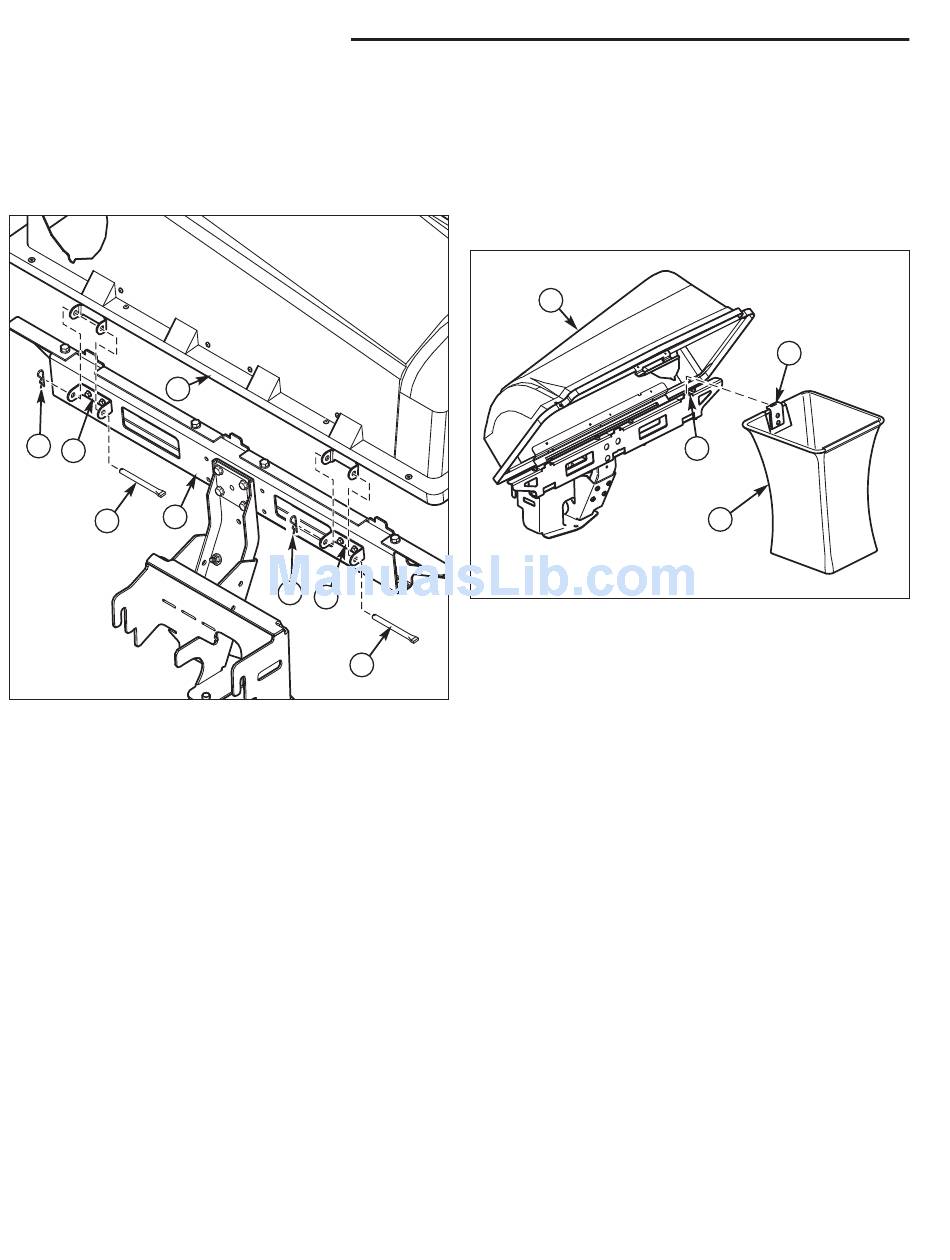

Figure 10. Install Cover Assembly
A. Bag Support Bracket
B. Cover Assembly
C. Cover Hinge Pins
D. Hair Pins
E. Hinge Pivots
D
E
C
8

INSTALL COLLECTOR BAGS

1. Raise the cover (A, Figure 11).
2. Attach collector bags (B) using grass bag hanger (C)
to bag hanger post (D).
Note: It may be necessary to fold seat forward to allow
cover to stay in the raised position.
A
Figure 11. Install Collector Bags
A. Cover
B. Collector Bags
C. Grass Bag Hanger
D. Bag Hanger Post
C
D
B
