Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.6. REAR COVER REMOVAL & INSTALLATION
1. To remove rear cover, remove six threaded
fasteners securing rear cover to machine, and lift
cover from machine.
components aside.
2. To install rear cover, place cover onto rear of
mower, aligning holes in cover with holes in mower.
Secure cover to mower with threaded fasteners. See
Figure 4.11.

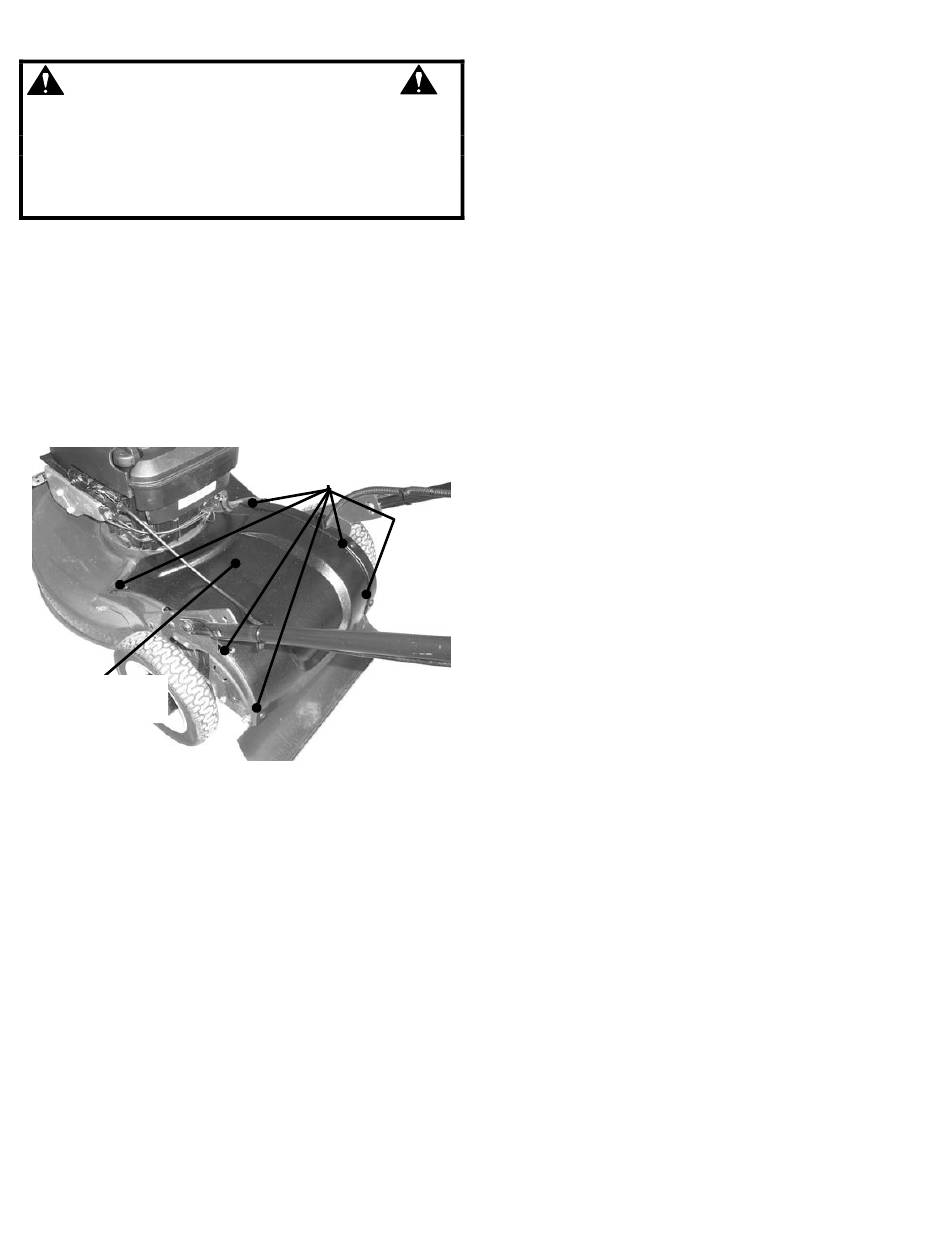

REAR COVER
FIGURE 4.11
See Figure 4.11.
Set
THREADED
FASTENERS (6)
