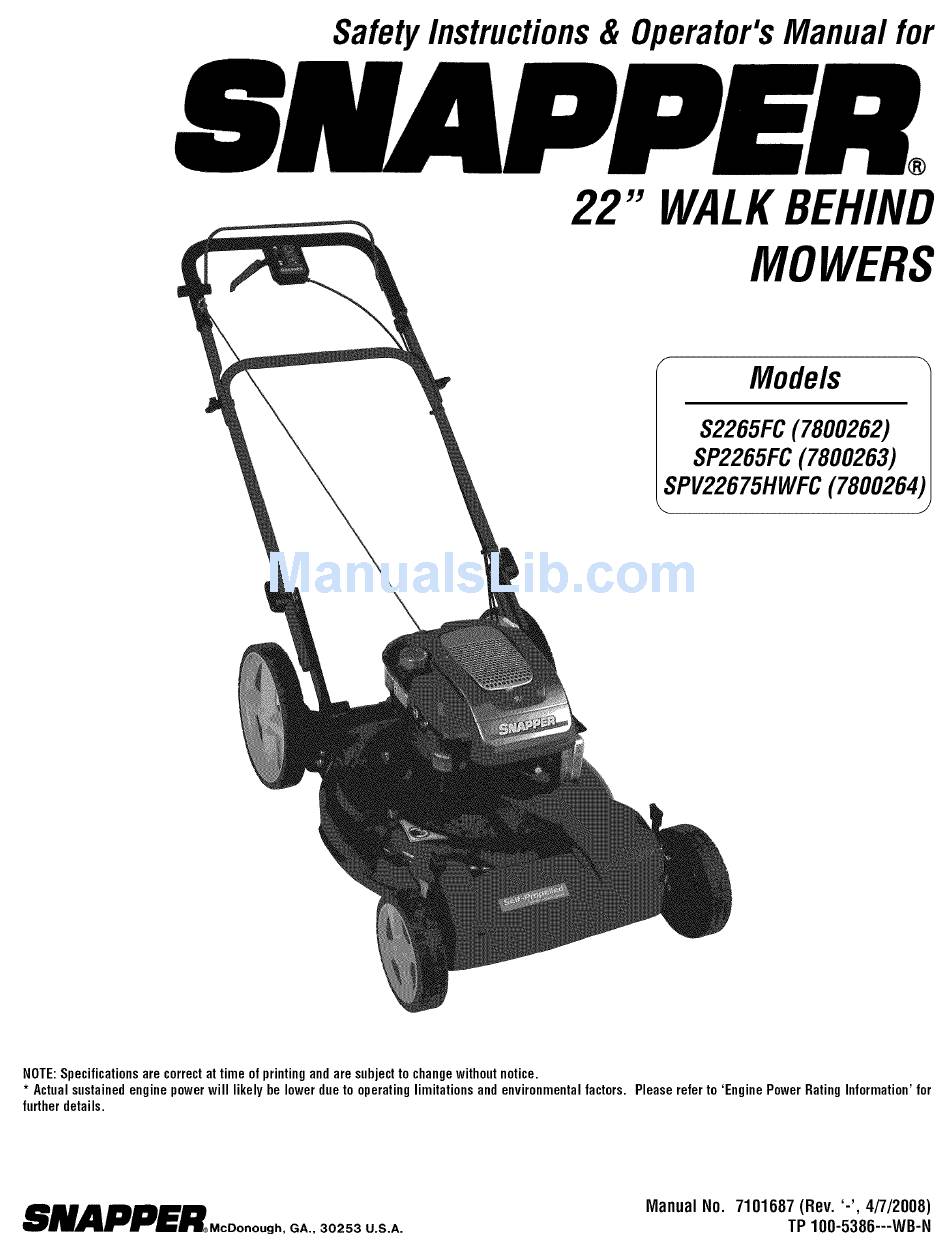

SafetyInstructions & Operator'sManualfor
22" WALK BEHIND
MOWERS
Models
$2265FC(7800262)
SP2265FC (7800263)
SPV22675HWFC (7800264)
J
NOTE:Specifications are correct at time of printing and are subjectto changewithout notice.
* Actual sustained engine power will likely be lower due to operating limitations and environmental factors. Please refer to 'Engine Power Rating Information' for
further details.
SNAPPER.cooooo_..
o_, _o_o_
Manual No. 7101687 (Rev. '-', 4/7/2008)
TP 100-5386---WB-N
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Snapper S2265FC
Summary of Contents for Snapper S2265FC
- Page 1 NOTE:Specifications are correct at time of printing and are subjectto changewithout notice. * Actual sustained engine power will likely be lower due to operating limitations and environmental factors. Please refer to 'Engine Power Rating Information' for further details. Manual No. 7101687 (Rev. '-', 4/7/2008) SNAPPER.cooooo_.. o_, _o_o_ TP 100-5386---WB-N...
- Page 2 ThankYou for purchasing this quality-built Snapper mower. We're pleasedthat you placedyour confidence in the Snapper brand. When operatedand maintained according to the instructions in this manual, your Snapper mower will provide many years of dependableservice. This manual containssafety information to make you awareof the hazardsand risks associatedwith the machine and how to avoid them.
-
Page 3: Table Of Contents
,.-z. Table of Contents ,.-z. OperatorSafety ..........Important Operator Safety Instructions ........Preparation ........... "0 Unpacking ............Handle ............Handle Height ............,.-z. Grass Bag ............"-I Side Discharge Deflector ..........Mulching Tips ............How to Prepare the Engine ..........Final Preparation ............ -
Page 4: Operatorsafety
If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER,McDonough, Georgia 30253. Phone: (1-800-317-7833). Protection for Children... - Page 5 12. STOPengine and wait until the blade comes to com- 11. Have machine serviced by an authorized SNAPPER plete STOP before removing grass bag and/or clearing dealer at least once a year and havethe dealer install any grass.
-
Page 6: Preparation
'Engine Stop Lever'.) Slowly pull the recoil-start grip (A, Figure3). To attach the recoil-start grip to the rope guide (B), twist the rope through the rope guide mounted on the right side of the handle. Figure 3: Attaching the recoil-start grip www.snapper.com... -
Page 7: Handle Height
Preparation (Continued) Handle Height 1. Turn the knobs (A, Figure 4) on either side of the lower handle (B) to retract the locking pins. Align the lower handle with the desired set of holes in the handle brackets (C). Turn the knobs to releasethe locking pins and secure the lower handle. -
Page 8: Grass Bag
Make sure the handle (A, Figure 6) is on the outside of the grass bag. First, attach the clips (B, Figure 6) to the side of the frame assembly (C). Next, attach the clips to the top and bottom of the frame assembly. Figure 6: Installing the bag clips www.snapper.com... - Page 9 Preparation (Continued) Mounting the Grass Bag 1. To mount the grass bag on the mower, raise the rear door (A, Figure 7). Holding the grass bag by the handle (B), mount the hooks (C) on either end of the grass bag frame assembly onto the rear door pivot rod (D).
-
Page 10: Side Discharge Deflector
Figure 9) goes through the slot in the side deflector. Figure 9: Side discharge deflector locking tabs 4. Lower the mulcher cover (A, Figure 10). 5. Attach the wire to the spark plug. Figure 8: Installing the side discharge deflector Figure 10. Releasing the mulcher cover www.snapper.com... -
Page 11: Mulching Tips
Preparation (Continued) Mulching Tips • Keepa sharp edge on the blade. A blade that is not sharp will cause the ends of the grass to become brown. • Cleanthe underside of the mower housing. Grass and Mulching finely cuts the grass so that the grass can be easily other debris can keep the mower from working recycled. -
Page 12: Operation
Note: When the drive system is disengaged on a new unit, it is possible for the front wheels to rotate if lifted off the ground. This is normal and will stop after one or two hours of operation. www.snapper.com... -
Page 13: Startingthe Engine
Operation (Continued) Startingthe Engine WARNING:The blade will rotate when the engine runs. IMPORTANT: B efore you start the engine, operate the engine stop lever several times. Make sure the engine stop cable moves freely. Note: Theengine design does not include a throttle control or an engine speed adjustment. -
Page 14: Maintenance
2. To lubricate the engine, refer to the "Engine Instruction Book". Note. Do not lubricate the engine stop cable. Lubricants will damage the cable and prevent the cable from moving freely. Replace the cable if bent or damaged. Figure 16: Adjusting the height of cut www.snapper.com... -
Page 15: Removingthe Drive Belt
Maintenance(Continued) Removingthe Drive Belt Then, loosen the adjuster nut only enough to allow the spacer to turn. The tension on the drive belt is now (Self-PropelledUnits Only) correct. Install the belt cover. WARNING:Beforeyou remove the belt, Before you begin to mow, make sure the drive system disconnectthe wire from the spark plug. -
Page 16: Adjustingthe Drive Cable
IMPORTANT: B efore you start the engine, operate the engine stop lever several times. Make sure the engine stop cable moves freely. Figure 21. Adjusting the drive cable www.snapper.com... -
Page 17: Bladeservice
Maintenance(Continued) BladeService WARNING:Beforeyou inspectthe blade or the blade adapter, disconnectthe wire to the spark plug. If the blade hits an object, stop the engine. Disconnectthe wire to the spark plug. Checkthe unitfor damage. Frequently check the blade for wear or damage such as cracks. -
Page 18: Preparing The Mower For Storage
Slowly pull the recoil-start grip so that the oil will protect the cylinder. Install a new 10. Put the unit in a building that has good ventilation. spark plug in the cylinder. www.snapper.com... -
Page 19: Troubleshooting
Troubleshooting The enginewill not start. 1. Make sure the fuel tank is filled with clean gasoline. Do not use old gasoline. 2. On a cold engine, push the primer button (optional on some models). For the number of times required to push the primer button, seethe engine manufacturer's instructions. -
Page 20: Warranty
This warranty does not apply to parts that havebeen damaged by accident, alteration, abuse, improper lubrication, normal wear, or other cause beyondthe control of SNAPPER.This warranty does not cover any machine or com- ponent part that has been altered or modified changing safety, performance, or durability. - Page 21 Operate a walk-behind mower across the face of slopes, never up or down slopes. Operate a riding mower up or down slopes, never across the face of slopes. 10 DEGREES 15 DEGREES On a riding mower to determine if a slope is safe to mow: (1) disengage the blade(s), (2) put the unit in reverse, and (3) try to back straight up the slope, if you can back up the slope, it is generally safe to mow.
- Page 22 Notes www.snapper.com...
- Page 23 Notes...
- Page 24 (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine. _J_LDJDEJI_ Snapper Products 535 Mlacon Street 1-800-317-7833 IVlcDonough, GA30253...
