Parts Manual for

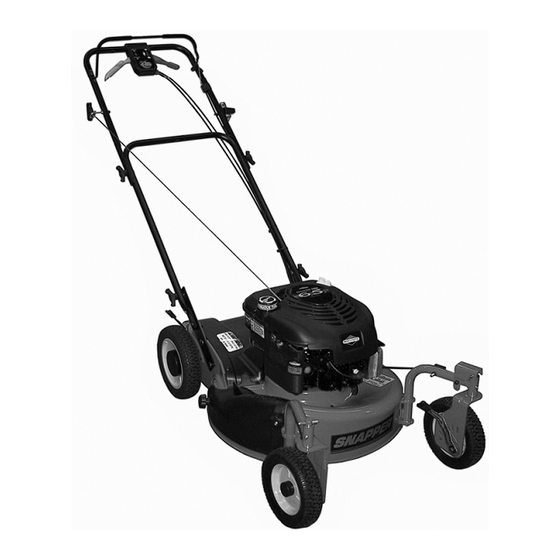

21" STEEL DECK EASY LINE
SWIVEL WHEEL WALK MOWER
MODEL
SPV21S
SPV211S
McDonough, GA, 30253 U.S.A.
Briggs & Startton Yard Power Products Group
Manual No.
7006206
Copyright ©
2007
Briggs & Startton Corporation
Milwaukee, WI USA. All Rights Reserved
Revision 1,
1/25/2007
TP 400-5145-1-WB-N
Advertisement
Table of Contents
Related Manuals for Snapper SPV211S
Summary of Contents for Snapper SPV211S
- Page 1 Parts Manual for 21" STEEL DECK EASY LINE SWIVEL WHEEL WALK MOWER MODEL SPV21S SPV211S McDonough, GA, 30253 U.S.A. Briggs & Startton Yard Power Products Group Manual No. 7006206 Copyright © 2007 Briggs & Startton Corporation Milwaukee, WI USA. All Rights Reserved...
-
Page 3: Table Of Contents
PAGE GROUP HANDLES & CONTROLS GUARDS AND COVERS FRONT WHEELS REAR WHEELS REAR DECK BRACKETS & IDLER ARM TRANSMISSION ENGINE AND BLADE BAGGING COMPONENTS DECALS 21" STEEL DECK EASY LINE Table Of Contents Manual No. 7006206 TP 400-5145-1-WB-N... -
Page 4: Handles & Controls
HANDLES & CONTROLS Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 5 HANDLES & CONTROLS Item Part No Description 7078247 HANDLE, Upper, Flat 7300130 PLATE, Control Panel 7100225 SCREW, #8-16 Recessed Pan Head (Torxplus) 7028488 GUIDE, Rope 7076978 NUT, 1/4-20 Hex Nyloc 7090391 WASHER, 5/16 Internal Tooth Lock 7035744 KNOB, 5/16-18 Wing (Black) M720727 KNOB, 5/16-18 Wing (Black) 7100069...
-
Page 6: Guards And Covers
GUARDS AND COVERS Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 7 GUARDS AND COVERS Item Part No Description 7400014 WELDMENT, 21” Deck Swivel Wheel 7100001 REAR COVER, Belt/Transmission 7100059 RIVET, Plastic, Fastener 7046780 PLUG, Hole (Polyethylene) 7078225 ROD, Trail Shield 7078272 SHIELD, Trail 7091584 NUT, 1/4-20 Hex Flange Lock 7090001 BOLT, 5/16-18 x 3/4” Short Square Neck Carriage, GR 5 7011791 BOLT RETAINER, 5/16- Black 7100243...
-
Page 8: Front Wheels
FRONT WHEELS Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 9 FRONT WHEELS Item Part No Description 7091256 SCREW, 1/4-20 x 2-1/4” Hex Head Cap, GR 5 7046668 SPRING, Torsion 7300171 BRACKET Swivel Wheel Lock 7090372 NUT, 1/4-20 Hex Center Lock 7092021 WASHER, .64 x .99 x .025 Flat 7046628 NYLINER, 5/8 7092022 WASHER, .64 x .99 x .075 Flat 7013864...
-
Page 10: Rear Wheels
REAR WHEELS Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 11 REAR WHEELS Item Part No Description 7100184 * ASSY., 9 x 2” Gear Wheel, LS Tread & P. M. Bushing 7101104 ** ASSY., 9 x 2” Gear Wheel, Double Bar II Tread & Nylon Bushing 7073618 BUSHING, Wheel (powdered metal) 7024541 BUSHING, Wheel (nylon) 7091192...
-
Page 12: Rear Deck Brackets & Idler Arm
REAR DECK BRACKETS & IDLER ARM Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 13 REAR DECK BRACKETS & IDLER ARM Item Part No Description 7027174 SCREW, 5/16-18 x 2” Hex Head Cap, GR 5 7091256 SCREW, 1/4-20 x 2-1/4” Hex Head Cap, GR 5 7091601 NUT, 5/16-18 Hex Flange Lock 7090799 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck Carriage 7300047 BRACKET, Transmission Mounting 7300494...
-
Page 14: Transmission
TRANSMISSION Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 15 TRANSMISSION Item Part No Description 7500103 TRANSMISSION, LC Walk, Variable Speed 7100240 PULLEY, Transmission 1960251 NUT, 3/8-16 Hex Center Lock Jam 7012316 WASHER, .390 I.D. 7100395 BELT GUIDE, Variable Speed 7091545 NUT, 1/4-20 Hex Top Lock Flange 7100058 * BELT, 3L, Traction Drive 7900032 SCREW, 7mm x 1 x .550 AB Point 7100966...
-
Page 16: Engine And Blade
ENGINE AND BLADE Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 17 ENGINE AND BLADE Item Part No Description * ENGINE, 6.5 HP Quantum Mod. 123K02-0141-E1 7090324 SCREW, 3/8-16 x 1” Hex Washer Self-Tap 7091088 SCREW, 3/8-16 x 2” Hex Washer Self-Tap 7100022 GUIDE, Belt 7200010 SPACER, Belt Guide 7100437 PULLEY, Engine 7091214 KEY, Hi-Pro (#HP-506) 7092086...
-
Page 18: Bagging Components
BAGGING COMPONENTS Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 19 BAGGING COMPONENTS Item Part No Description 7058571 BAG ASSEMBLY (Door) 7075765 GRASS BAG (Door w/silver letters) 7042489 CONNECTOR, Bag 7051906 ASSEMBLY, Bag Wire (12”) 21S 7090189 WASHER, 5/16” Internal/External 7091984 SCREW, 5/16-18 x 1-1/4” Pan Head Machine 7047082 BRACKET, Rope Pulley 7091070 NUT, 5/16-18 Hex Flange Lock, GR 5 7072107...
-
Page 20: Decals
DECALS Manual No. 7006206 21" STEEL DECK EASY LINE TP 400-5145-1-WB-N... - Page 21 DECALS Item Part No Description 1731955 DECAL, SNAPPER Logo 7100342 DECAL, Control Head, Variable Speed 7013010 DECAL, Danger, Cut Finger 7029782 DECAL, OPC Bail International Symbol 7072921 DECAL, Warning (Deck) 7046357 DECAL, Warning 1997 7046720 DECAL, Chute/Deflector DECAL, OPEI Walk/Ride...
- Page 24 Parts Manual for 21" STEEL DECK EASY LINE SWIVEL WHEEL WALK MOWER IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...
