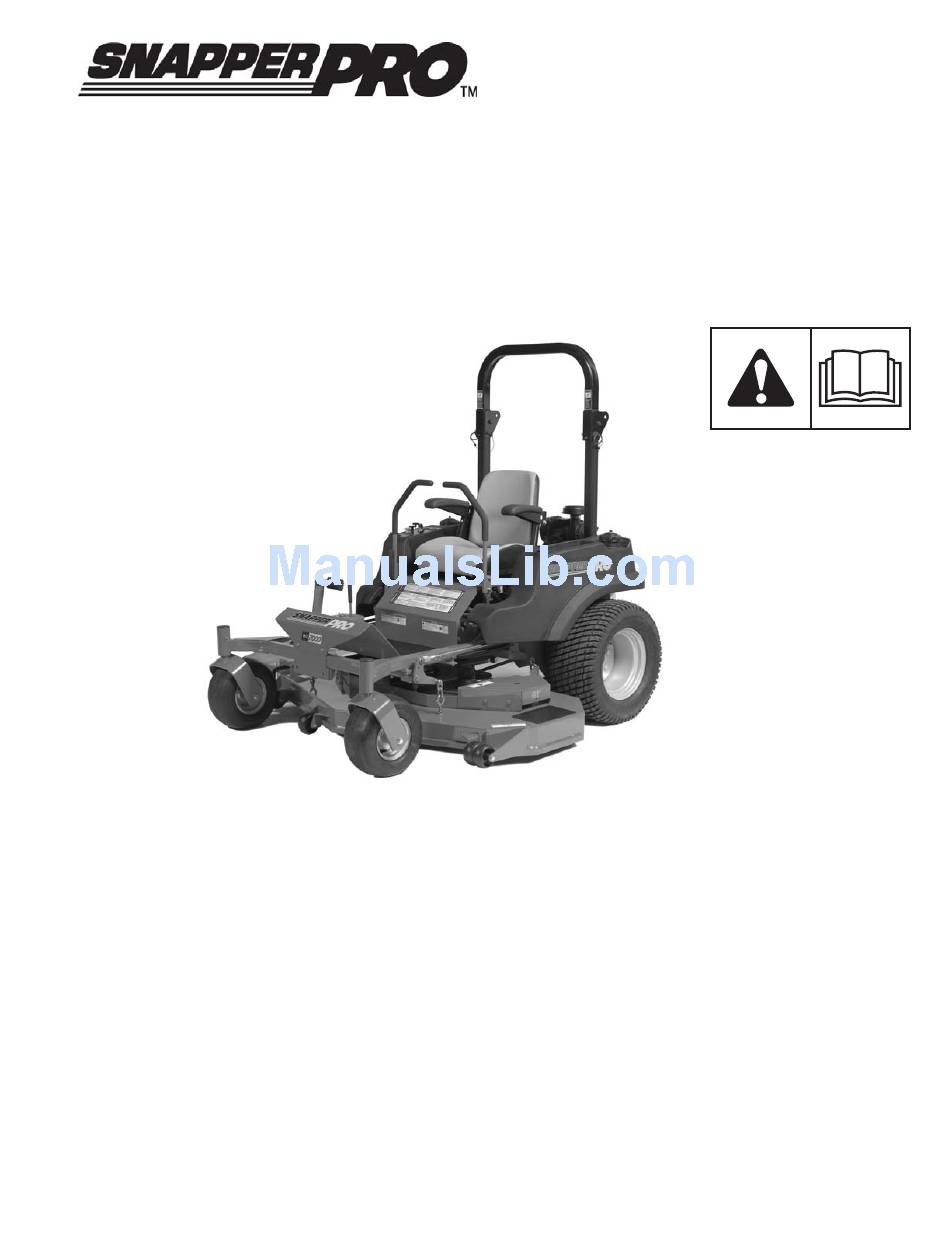

Model Number:
S200KAV2561
S200XK2761
Briggs & Stratton Yard Power Products Group
5375 North Main Street
Munnsville, NY 13409
800-933-6175
OPERATOR'S
MANUAL
S200X Series
Zero-Turn Riding Mower
Description
(5900664), 25HP, 61" Cut Zero-Turn Riding Mower
(5900692), 27HP, 61" Cut Zero-Turn Riding Mower
5101090
Revision 01
Rev. Date: 7/2007
TP 100-7332-01-M2-SP
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Snapper S200KAV2561, S200XK2761
Summary of Contents for Snapper S200KAV2561, S200XK2761
- Page 1 Model Number: S200KAV2561 S200XK2761 Briggs & Stratton Yard Power Products Group 5375 North Main Street Munnsville, NY 13409 800-933-6175 OPERATOR’S MANUAL S200X Series Zero-Turn Riding Mower Description (5900664), 25HP, 61” Cut Zero-Turn Riding Mower (5900692), 27HP, 61” Cut Zero-Turn Riding Mower 5101090 Revision 01 Rev.
- Page 2 Snapper Pro product. We’re pleased that you’ve placed your confidence in the Snapper Pro brand. When operated and maintained according to the instructions in this manual, your Snapper Pro product will provide many years of dependable service.
-
Page 3: Table Of Contents
Table of Contents Operator Safety ...2 Safety Rules and Information ...2 Safety Decals ...11 Safety Interlock System...12 Features & Controls ...13 Identification Numbers ...13 Control Functions ...14 Operation ...16 General ...16 Checks Before Starting ...16 Checking Tire Pressures ...17 Seat Adjustment ...17 Mowing Height Adjustment ...17 Foot Pedal Adjustment...18 Raise and Lower the Roll Bar ...18... -
Page 4: Operator Safety
Operator Safety Operator Safety Safety Rules and Information READ THE MANUAL The operator’s manual contains important safety information you need to be aware of BEFORE you operate your unit as well as DURING operation. Safe operating techniques, an explanation of the product’s features and controls, and maintenance information is included to help you get the most out of your equipment investment. - Page 5 THROWN OBJECTS This unit has spinning mower blades. These blades can pick up and throw debris that could seriously injure a bystander. Be sure to clean up the area to be mowed and remove objects that could be thrown by the blade BEFORE you start mowing.
- Page 6 Operator Safety RETAINING WALLS, DROP-OFFS, AND WATER Retaining walls and drop-offs around steps and water are a common hazard. Give yourself a minimum of two mower widths of clearance around these hazards and hand-trim with a walk behind mower or string trimmer. Wheels dropping over retaining walls, edges, ditches, embankments, or into water can cause rollovers, which may result in serious injury, death, or drowning.
- Page 7 ENCLOSED AREAS Only operate this unit outdoors and away from unventilated areas such as inside garages or enclosed trailers. The engine emits poisonous carbon monoxide gas and prolonged exposure in an enclosed area can result in serious injury or death. Operator Safety FUEL AND MAINTENANCE Always disengage all drives, shutoff the engine, and remove the...
- Page 8 Operator Safety Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
- Page 9 spark arrester. It is a violation of California Public Resource Code Section 4442 to use or operate the engine on or near any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester meeting any applicable local or state laws.
- Page 10 Operator Safety SERVICE AND MAINTENANCE To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Safe Handling of Gasoline 1. Extinguish all cigarettes, cigars, pipes, and other sources of ignition. 2.
- Page 11 27. Models equipped with an engine radiator: WARNING: Stored energy device. To prevent serious bodily injury from hot coolant or steam blow-out, never attempt to remove the radiator cap while the engine is running. Stop the engine and wait until it is cool. Even then, use extreme care when removing the cap.
- Page 12 Operator Safety WARNING Failure to properly inspect and maintain the seat belt can cause serious injury or death. INSPECTION AND MAINTENANCE OF THE ROLL BAR SEAT BELT • The seat belt like the ROLL BAR, needs to be periodically inspected to verify that the integrity has not been compromised through normal machine use, misuse, age degradation, modifications, or a roll over.
-
Page 13: Safety Decals
Safety Decals This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important information while you are operating... -
Page 14: Safety Interlock System
Operator Safety Safety Interlock System This unit is equipped with safety interlock switches. These safety systems are present for your safety, do not attempt to bypass safety switches, and never tamper with safety devices. Check their operation regularly. Operational SAFETY Checks Test 1 —... -
Page 15: Features & Controls
Features and Controls Identification Numbers When contacting your authorized dealer for replacement parts, service, or information you MUST have these numbers. Record your part number, serial number and engine serial numbers in the space provided on the inside front cover for easy access. -
Page 16: Control Functions
Features and Controls Figure 2. Control Locations Control Functions The information below briefly describes the function of individual controls. Starting, stopping, driving, and mowing require the combined use of several controls applied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section. - Page 17 Parking Brake DISENGAGE Releases the parking brake. ENGAGE Locks the parking brake. Pull the parking brake lever back to engage the parking brake. Move the lever fully forward to disengage the parking brake. NOTE: To start the unit the parking brake must be engaged.
-
Page 18: Operation
Operation Operation General Operating Safety Before first time operation: • Be sure to read all information in the Safety and Operation sections before attempting to operate this tractor and mower. • Become familiar with all of the controls and how to stop the unit. -
Page 19: Checking Tire Pressures
Check Tire Pressures Tire pressure should be checked periodically, and maintained at the levels shown in the chart. Note that these pressures may differ slightly from the “Max Inflation” stamped on the side-wall of the tires. The pressures shown provide proper traction, improve cut quality, and extend tire life. -
Page 20: Foot Pedal Adjustment
Operation Foot Pedal Adjustment The deck lift foot pedal can be adjusted to accommodate the operator’s height for optimal comfort. To adjust pedal position: 1. Remove the foot pedal (A, Figure 6) from the pedal mount tab (B). 2. Remove the pedal mount hardware (C) and rotate the tab 180 degrees. -
Page 21: Starting The Engine
Starting the Engine WARNING If you do not understand how a specific control functions, or have not yet thoroughly read the FEATURES & CONTROLS section, do so now. Do NOT attempt to operate the tractor without first becoming familiar with the location and function of ALL controls. -
Page 22: Zero Turn Driving Practice
Operation Zero Turn Driving Practice The lever controls of the Zero Turn rider are responsive, and learning to gain a smooth and efficient control of the rider’s forward, reverse, and turning movements will take some practice. Spending some time going through the maneuvers shown and becoming familiar with how the unit accelerates, travels, and steers —... - Page 23 Practice Turning Around a Corner While traveling forward allow one handle to gradually return back toward neutral. Repeat several times. NOTE: To prevent pivoting directly on the tire tread, it is best to keep both wheels going at least slightly forward. Executing Turns Figure 12.
-
Page 24: Mowing
Operation Mowing 1. Engage the parking brake. Make sure the PTO switch is disengaged, the motion control levers are locked in the NEUTRAL position and the operator is on the seat. 2. Start the engine (see Starting The Engine ). 3. -
Page 25: Mowing Methods
When and How Often to Mow The time of day and condition of the grass greatly affect the results you’ll get when mowing. For the best results, follow these guidelines: 1. Mow when the grass is between three and five inches high. -
Page 26: Attaching A Trailer
Operation Proper Mulching Mulching consists of a mower deck which cuts and recuts clippings into tiny particles and which then blows them down INTO the lawn. These tiny particles decompose rapidly into by-products your lawn can use. UNDER PROPER CONDITIONS, your mulching mower will virtually eliminate noticeable clippings on the lawn surface. -
Page 27: Regular Maintenance
Regular Maintenance Maintenance Schedule The following schedule should be followed for normal care of your rider and mower. You will need to keep a record of your operating time. Determining operating time is easily accomplished by observing the elapsed time recorded by the hour meter. Safety Items Check Safety Interlock System Check Rider Brakes... -
Page 28: Checking/Adding Fuel
Regular Maintenance Checking / Adding Fuel To add fuel: 1. Remove the fuel cap. 2. Fill the tank to about 1-1/2” (3,81 cm) of the bottom of the filler neck. This will allow for fuel expansion. NOTE: Do not overfill. Refer to your engine manual for specific fuel recommendations. -
Page 29: Lubrication
Lubrication Lubricate the unit at the locations shown in Figures 20 through 23 as well as the following lubrication points. Grease: • front caster wheel axles & yokes • deck lift pivot blocks • mower deck spindles • mower deck idler arm Use grease fittings when present. -
Page 30: Check Hydraulic Oil Level
Regular Maintenance Check Hydraulic Oil Level 1. Before removing the reservoir cap, make sure the area around the reservoir cap and fill neck of the reservoir is free of dust, dirt, or other debris. 2. Unscrew the reservoir cap (B, Figure 24). 3. -
Page 31: Servicing The Mower Blades
Servicing The Mower Blades Removing the Mower Blade CAUTION Avoid injury! Mower blades are sharp. • Always wear gloves when handling mower blades or working near blades. 1. To remove the mower blade, use a 1” wrench on the flats of the spindle shaft and remove the mower blade mounting bolt with a 15/16”... - Page 32 Regular Maintenance Sharpening the Mower Blade CAUTION Avoid injury! Mower blades are sharp. • Always wear gloves when handling the mower blades. • Always wear safety eye protection when grinding. 1. Sharpen the mower blades with grinder, hand file, or electric blade sharpener.
-
Page 33: Ground Speed Control Lever Adjustment
Ground Speed Control Lever Adjustment The control levers can be adjusted in three ways. The alignment of the control levers, the placement of the levers (how close the ends are to one another) and the height of the levers can be adjusted. To Adjust the Handle Alignment Loosen the mount bolts (A, Figure 32) and pivot the lever(s) (B) to align with each other. -
Page 34: Neutral Adjustment
Do not adjust the spring to be shorter than 1-15/16” (4,9 cm) when compressed. This may damage the brake mechanism. If this does not correct the braking problem, see your Snapper Pro dealer. Figure 34. Neutral Adjustment (LH side shown) A. Adjustment Linkage Rod B. -
Page 35: Return To Neutral Adjustment
Return-To-Neutral Adjustment To determine if it is necessary to adjust the neutral return, perform the following steps. 1. Disengage the PTO, engage the parking brake and turn off the engine. 2. Move the ground speed control levers into the operating position, pull levers rearward and release. -
Page 36: Deck Rod Timing Adjustment
Regular Maintenance Deck Rod Timing Adjustment 1. Park machine on a flat, level surface. Disengage the PTO, stop the engine and engage the parking brake. Rear tires must be inflated to 15 psi (1,03 bar); front tires to 25 psi (1,72 bar). 2. -
Page 37: Mower Belt Replacement
Mower Belt Replacement NOTICE To avoid damaging belts, DO NOT PRY BELTS OVER PULLEYS. 1. Park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, turn off the engine, and remove the ignition key. 2. -
Page 38: Hydraulic Pump Drive Belt Replacement
Regular Maintenance Hydraulic Pump Drive Belt Replacement 1. Park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, turn off the engine, and remove the ignition key. 2. Remove the PTO drive belt (see MOWER BELT REPLACEMENT for removal instructions). -
Page 39: Battery Maintenance
Battery Maintenance NOTE: This unit is equipped with a maintenance-free BCIU1 battery. Cleaning the Battery and Cables WARNING Be careful when handling the battery. Avoid spilling electrolyte. Keep flames and sparks away from the battery. When removing or installing battery cables, disconnect the negative cable FIRST and reconnect it LAST. -
Page 40: Battery Service
Regular Maintenance Battery Service Checking Battery Voltage WARNING Keep open flames and sparks away from the battery; the gasses coming from it are highly explosive. Ventilate the battery well during charging. A voltmeter can be used to determine condition of battery. When engine is off, the voltmeter shows battery voltage, which should be 12 volts. - Page 41 THIS HOOK-UP FOR NEGATIVE GROUND VEHICLES Starter Switch Starting Vehicle Battery To Ground MAKE CERTAIN VEHICLES DO NOT TOUCH Figure 45. Jump Starting WARNING Any procedure other than the preceding could result in: (1) personal injury caused by electrolyte squirting out the battery vents, (2) personal injury or property damage due to battery explosion,...
-
Page 42: Storage
Regular Maintenance Storage Temporary Storage (30 Days Or Less) Remember, the fuel tank will still contain some gasoline, so never store the unit indoors or in any other area where fuel vapor could travel to any ignition source. Fuel vapor is also toxic if inhaled, so never store the unit in any structure used for human or animal habitation. -
Page 43: Troubleshooting
Troubleshooting Troubleshooting Chart While normal care and regular maintenance will extend the life of your equipment, prolonged or constant use may eventually require that service be performed to allow it to continue operating properly. The troubleshooting guide below lists the most common problems, their causes and remedies. -
Page 44: Troubleshooting The Mower
Troubleshooting Rider Troubleshooting Continued. Problem Engine runs, but rider will not drive. Rider drive belt slips. Brake will not hold. Rider steers or handles poorly. Troubleshooting the Mower Problem Mower will not raise. Engine stalls easily with mower engaged. Excessive mower vibration. Excessive belt wear or breakage. -
Page 45: Troubleshooting Common Cutting Problems
Troubleshooting Common Cutting Problems Problem Streaking. Scalping. Stepped Cutting. Uneven Cutting. Stingers. Cause Blades are not sharp. Blades are worn down to far. Engine speed is too slow. Ground speed is too fast. Deck is plugged with grass Not overlapping cutting rows enough. -
Page 46: Specifications
Specifications Specifications NOTE: Specifications are correct at time of printing and are subject to change without notice. ENGINE: 25 HP Kawasaki Make Kawasaki Model FH721V Horsepower 25 @ 3600 rpm Displacement 41.2 Cu. in (675 cc) Electrical System 12 Volt, 13 amp. Alternator, Battery: 340 CCA Oil Capacity 2.0 US qt. - Page 47 Ferris Industries - a division of Simplicity Manufacturing Inc. Thank you for purchasing Ferris commercial mowing equipment. Please take a few minutes to read this limited warranty information. It contains all the information you will need to have your Ferris mower repaired in the unlikely event that a breakdown covered by this limited warranty should occur. Owner's Responsibilities - As a condition to our obligations under this limited warranty, you shall have read the operator's manual and you shall have completed and submitted to Ferris, within 20 days from the date of purchase, the Ferris Product Registration.
-
Page 48: Product Specifications
Product Specifications: ENGINE: 25 HP Kawasaki Make Kawasaki Model FH721V Oil Capacity 2.0 US pt. ( 1.9 L) w/ Filter 27 HP Kohler Make Kohler Model CV740S Oil Capacity 2.2 pt. (2.0 L) w/ Filter CHASSIS: Fuel Tank Capacity: 12 Gallons (45.4 L) Rear Wheels Tire Size: 24 x 12.00 -12 Inflation Pressure: 15 psi (1,03 bar)
