I. Additive Scale
Please refer to Fig 6-1 for the function and meaning of setting parameters during the process and
the sequence order for controlling the input and output:

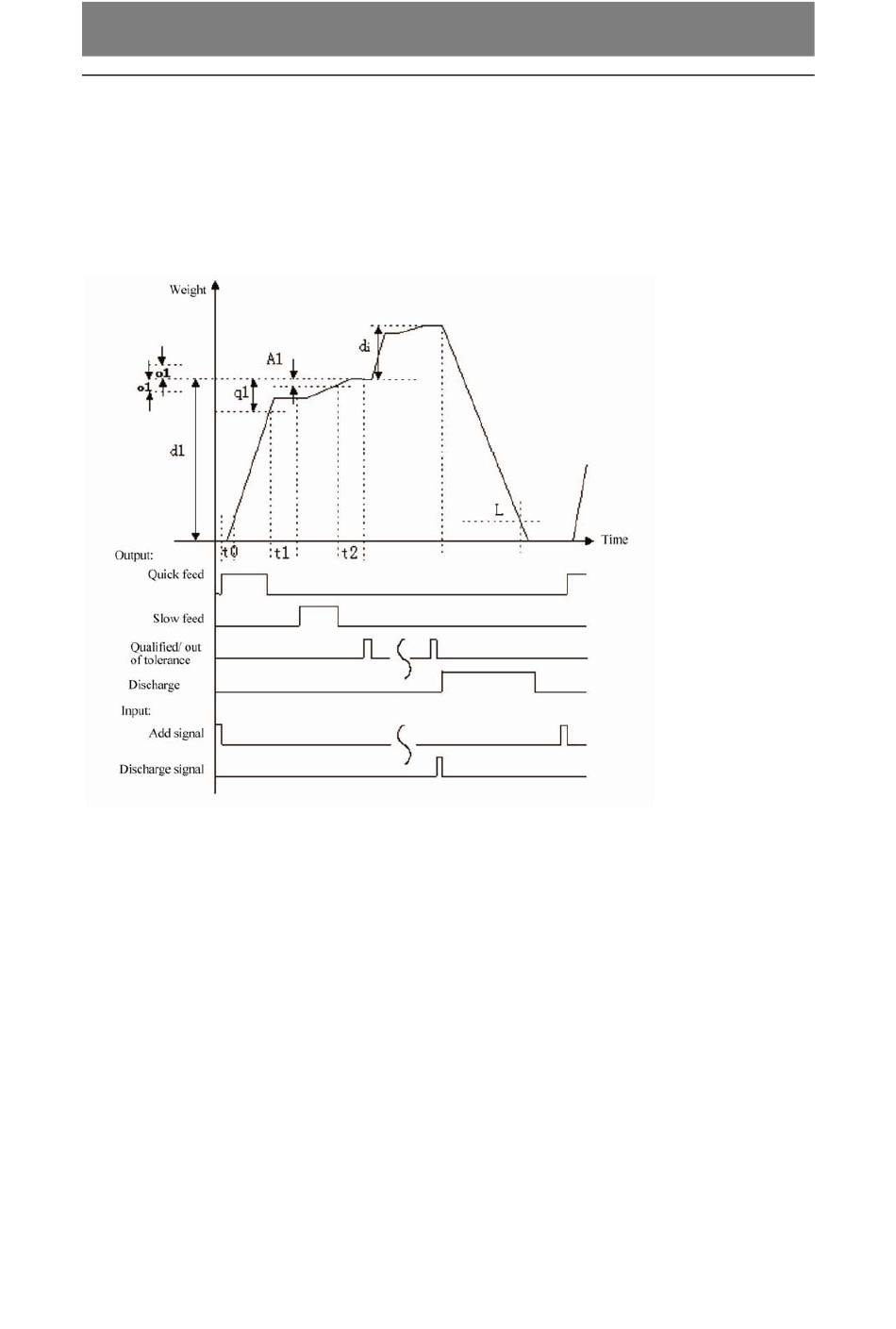

Figure 6-1 Working Sequence Drawing of Additive Quantitative Scale
The parameters instruction in the Figure：t0：Measurement delay of material feed，t1： quick feed over delay，
t2： Slow feed over delay (The indicator during the three periods will not judge the weight） ； d1: Quantitative
value of material 1；q1： Quick feed lead of material 1；a1： Slow feed lead of material；o1： Allowance of
material 1；L：Zero zone
Notes to working process of additive quantitative scale:
1. The Add Signal is needed before material feeding;
2. The Discharge Signal is needed during material discharging;
3. The condition that the weight should be less than zero value should be satisfied during the
process of closing the material discharging.
