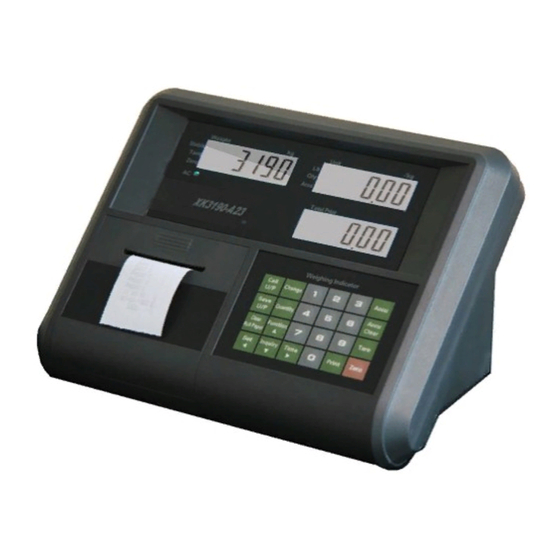

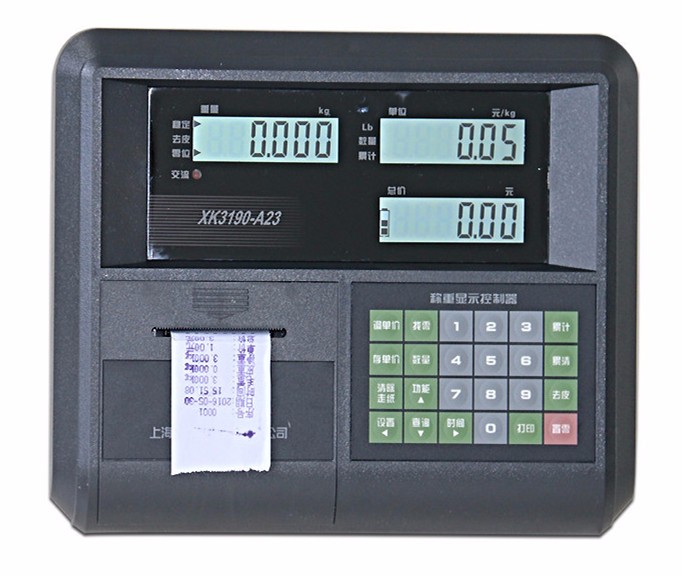

XK3190-A23p
Weighing Indicator
U
s
e
r
M
a
n
u
a
l
U
s
e
r
M
a
n
u
a
l
U
s
e
r
M
a
n
u
a
l
（Version 1.00）
This product accords with China National standard GB-T
7724-2008`

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XK3190-A23p and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yaohua Weighing System XK3190-A23p

Summary of Contents for Yaohua Weighing System XK3190-A23p

  • Page 1 XK3190-A23p Weighing Indicator （Version 1.00） This product accords with China National standard GB-T 7724-2008`...

  • Page 2: Table Of Contents

    Content Chapter 1 Technical Parameter……………………………………….1 Chapter 2 Installation ………………………………………………… 2 (1).Weighing indicator front side function instruction and back side function instruction. (2). Load cell & weighing indicator connection Chapter 3 Operation Instruction…………………………………… 4 (1). Button function (2). Startup (3). Battery use (4).

  • Page 3: Chapter 1 Technical Parameter

    X K 3 1 9 0 –A23p Chapter 1 Technical Parameter 1. Model : XK3190-A23p 2. Accuracy class : Class 3. A/D conversion mode: ∑-Δ 4.A/D conversion resolution： 1 million yard 5. A/D conversion speed： 10 times/second 6. Load excitation voltage : DC 5V 7.

  • Page 4: Chapter2 Installation

    X K 3 1 9 0 –A23p Chapter2 Installation 1. A23p weighing indicator front side function instruction and back side function instruction: Front side function instruction (picture 2-1-1 ) Communication fuse Load port cell Power Switch Calibration Battery ack side function instruction (picture 2-1-2 ) B...

  • Page 5: Load Cell & Weighing Indicator Connection

    X K 3 1 9 0 –A23p 2. Load cell and weighing indicator connection : A23p adopts 5 pin plug connect with sensor, and definition are as follows: Foot definition position Excitation voltage + （E+） Excitation voltage - （E-） Signal+（S+） Signal-（S-）...

  • Page 6: Chapter 3 Operation Instruction

    X K 3 1 9 0 –A23p Chapter 3 Operation Instruction (1). Button function： (1) Number button weighing state： unit price input parameter setting： parameter input Accu (2). Sum is not zero： accumulation sum and times Sum is zero: accumulation display Parameter setting：...
  • Page 7 X K 3 1 9 0 –A23p "move right "button 14、 Come into parameter function setting, when inquire it performs as "move left" button. 15、 Clear unit price, press 2 seconds the printer will roll the paper .

  • Page 8: Startup

    X K 3 1 9 0 –A23p (2) Startup （startup warm up 15～30 minutes） Turn on the indicator, it will show all 8, and indicating lights are on, then the indicator will start self-test, after that, indicator will enter into weighing mode. The built-in battery must be fully charge when it is used for the first time.

  • Page 9: Unit Price Input

    X K 3 1 9 0 –A23p zero and tare indicate symbol light is on. Cancel tare If the gross weight is zero or below zero and in the tare state also in weighing state, press【tare】can put the current gross weight to zero and the tare indicate symbol light is off.

  • Page 10: Saving And Re-Call Of Unit Price

    X K 3 1 9 0 –A23p zero，accumulate calculate indicate symbol is off. Saving and re-call of unit price Indicator can save and call 100 unit prices, the corresponding memory number 00 to 1、Unit price saving method is as following： First press the number keys to enter the unit price to be saved, then press【unit price save】button.

  • Page 11: Pricing By Quantity

    X K 3 1 9 0 –A23p bigger than the amount should be paid , the first screen will display the change amount. You can press【clear】button to delete the pay amount you input when you input the wrong number. (2)Instruction： 1. When accumulate amount and current amount are both zero, 【change】 button will take no effect .

  • Page 12: Date And Time Setting

    X K 3 1 9 0 –A23p display： 【c **** 】【 *.**】 【 *.**】 The first window displays quantity, and second window displays unit price and third window displays amount. Note：1.The maximum quantity is 9999, if above this will display 【 - - - - - - 】； 2.If the item weight is lower than the 1/4 of the division，counting function will not workable，the first window displays【L ****】,and this reminds that quantity was locked.

  • Page 13: Backlight Setting

    X K 3 1 9 0 –A23p (12)Backlight setting 1、Power saving mode instruction A23 Indicator come into the power saving mode , the back light is off, and indicator can do the normal weighing operation. 2、When bL=1~3，pressing of any button or the alteration of weight will make the indicator exit the power saving mode.
  • Page 14 X K 3 1 9 0 –A23p Fixed value alarming setting： X it means need buzzer ring or not when alarming 0－yes，1－no Y it means alarming only stabilization Fixed value alarming 0－No，1－yes setting： 【Lt 】 Z it means when alarming,0～3can be press【011】...

  • Page 15: Weighing Unit Switching Function

    X K 3 1 9 0 –A23p (14) Weighing unit switch function： Indicator weighing unit can be selected，when start the kg/lb conversion function, press 【function】button to switch the weighing unit. When it come into the calibration state, it will switch to Kg unit automatically. The indicator will clear the fixed value alarming limitation automatically when switch the unit.

  • Page 16: Chapter 4 Saving, Inquiry And Clear

    Saving method：Press 【accumulation】button when the accumulation is allowed ,indicator will save the current record in the same time when accumulation. XK3190-A23p indicator can store 1000 groups of record，the indicator will delete the earliest record when the record exceeds 1000 groups.
  • Page 17 X K 3 1 9 0 –A23p Step Operation Display Note 【no 002】 Display S/N Press【inquiry】 【 ***】 Display net weight is LB，kg button, display details indicate light is off 【 *.**】 Display left amount 【no 003】 Display S/N Press【inquiry】 Display quantity and quantity 【...

  • Page 18: Chapter 5 Printing Function

    X K 3 1 9 0 –A23p Chapter 5 Print Function Indicator can select internal dot matrix printer or external printer LQ300+. External printer connect with the indicator through serial port connection line ,and also occupy the serial port. Note: when choose the external printer , the indicator communication function is forbidden.
  • Page 19 X K 3 1 9 0 –A23p 6、Print set： Step Operation Display Note press【set】press 【07】 【 P S T 】 Input password 07，then come into 【 0 7 】 then press parameter setting 【accumulation】 Weight auto print function selected： Press【1】 【Auto *】...
  • Page 20 X K 3 1 9 0 –A23p Step Operation Display Note Select a phone number digits（0～8) 0： Not print phone number press【8】 【teln *】 1～8：Micro print manifest format press 【teln 8】 print phone number 【accumulation】 For example：8 Press【6728】 Phone number four higher digits set 【tH ****】...
  • Page 21 X K 3 1 9 0 –A23p Step Operation Display Note Print content selection： from left to right, it’s： Press【1111】 【PS2 】 tare weight、net weight、unit price、 Press【accumulation】 【 1111】 total for confirmation 0－ not print，1－ print Back to normal Indicator works as the above working state.

  • Page 22: Chapter 6 Communication Function

    X K 3 1 9 0 –A23p Chapter 6 Communication function 1. Introduction There are 5 kinds of RS232 serial communication format for indicator A23, and 4 kinds of baud rate for choosing. All the data are ASCII code，each group of data includes a start bit ,8 data bits,1 stop bit. When the printer type is set to connect an external printer, the communication function is disabled.
  • Page 23 X K 3 1 9 0 –A23p + or - Symbol bit Weighing data（display front is high digit and low in the post value） Decimal position From right to left（0～4） XOR checksum Higher four digits XOR checksum Lower four digits 03(X0FF) Note: The confirmation of higher 4 digits and lower 4 digits XOR checksum...
  • Page 24 X K 3 1 9 0 –A23p Continuous communication format 2： There are 9 bytes in each data of the frame, for more details please check the diagram below. The X byte Contents and Notes start 0 or - symbol position Weighing data （including high position in front and low position at behind...
  • Page 25 X K 3 1 9 0 –A23p ＝0002.000kg;0001.00;0002.00＝0002.000kg;0001.00;0002.00…… For example the current display is quantity, and the quantity is 20,unit price is 1.00,amount is 20.00 , so the sending data is : ＝00000020pc;0001.00;0020.00＝00000020pc;0001.00;0020.00…… Three windows large screen mode： There are 24 bytes in each of the frame，please check the detailed format in the below diagram .
  • Page 26 X K 3 1 9 0 –A23p Comman Note Comman Commands sending by the host d type computer (hex) meaning Comman Shake The second byte is the 02 41 41 30 30 03 hands information address, Comman Read from 0x41 (A) start, 02 41 42 30 33 03 such as information address is 2, the...

  • Page 27: Chapter 7 Information Instruction

    X K 3 1 9 0 –A23p Tare weight 1： symbol (+or-) Comman Composed by 14 groups of data per frame 2～7： tare weight value ( 6 bit） 8： number of decimal digits ( 0～4） Net weight 1： symbol (+or-) Comman Composed by 14 groups 2～7：...

  • Page 28: Chapter 8 Maintenance And Attention

    X K 3 1 9 0 –A23p ：Keypad is broken, and back to weighing state 10 seconds later. Err 18 ：Clock is broken Err 22 ：Memory is broken Err 23 ：Accumulate count, back to weighing state 3 seconds later automatically. ：Accumulate display, back to weighing state 3 seconds later 10.
  • Page 29 X K 3 1 9 0 –A23p ▲！You should cut off power supply before pull-in and out connecting cable of signal source. Output interfaces of indicator must be strictly in accordance to the user's manual, you should not alter any connection. If there is failure when using the indicator, you should immediately unplug it, and send to manufacturers for repair.
