7
Note: Install the ScreenLogic
wireless transceiver within 10 feet from Load Center
7.
After the connection has been completed, close the control panel
into its original position and secure it with the two access screws.
8.
Install the front panel and secure it with the two retaining screws.
9.
Close the Load Center front door. Fasten the spring latche(s).
10. Switch the power on to the IntelliTouch
System Load Center.
11. Proceed to the "Connect the ScreenLogic Interface Indoor
Wireless Transceiver to the ScreenLogic Interface Protocol
Adapter" on page 8.
SCREENLOGIC
INTERFACE Wireless Connection Kit Installation Guide
®

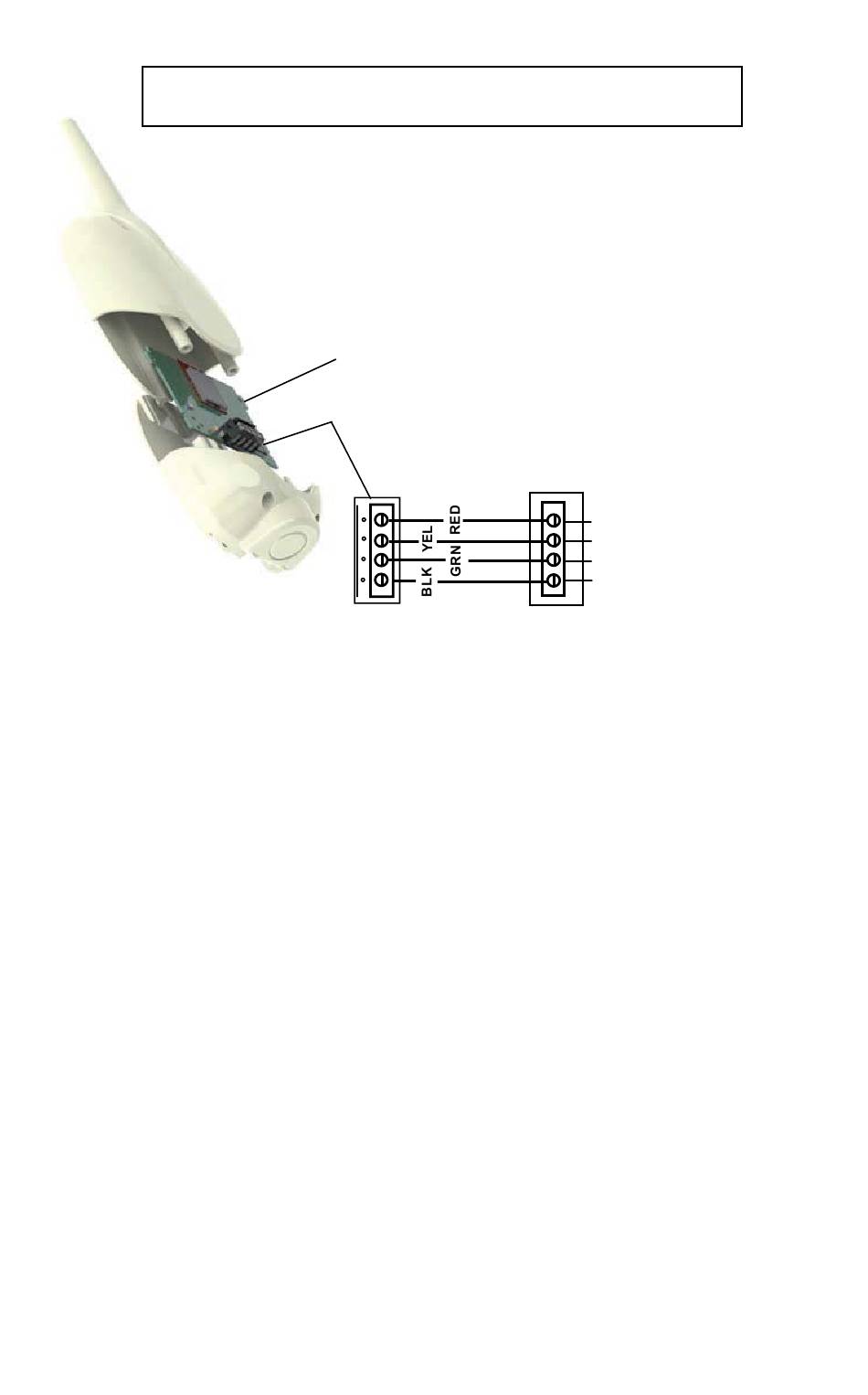

Transceiver Circuit board
Transceiver Connector
Interface outdoor
®
RED (15 V - PIN 4)
YEL (+ DT - PIN 3)
GRN (- DT - PIN 2)
BLK (GND - PIN 1)
COM PORT screw terminal
connector on IntelliTouch
or EasyTouch
®
System circuit board
or EasyTouch
®
®
®
Control
Control
