EMG BTC CONTROL Installation Information page 4

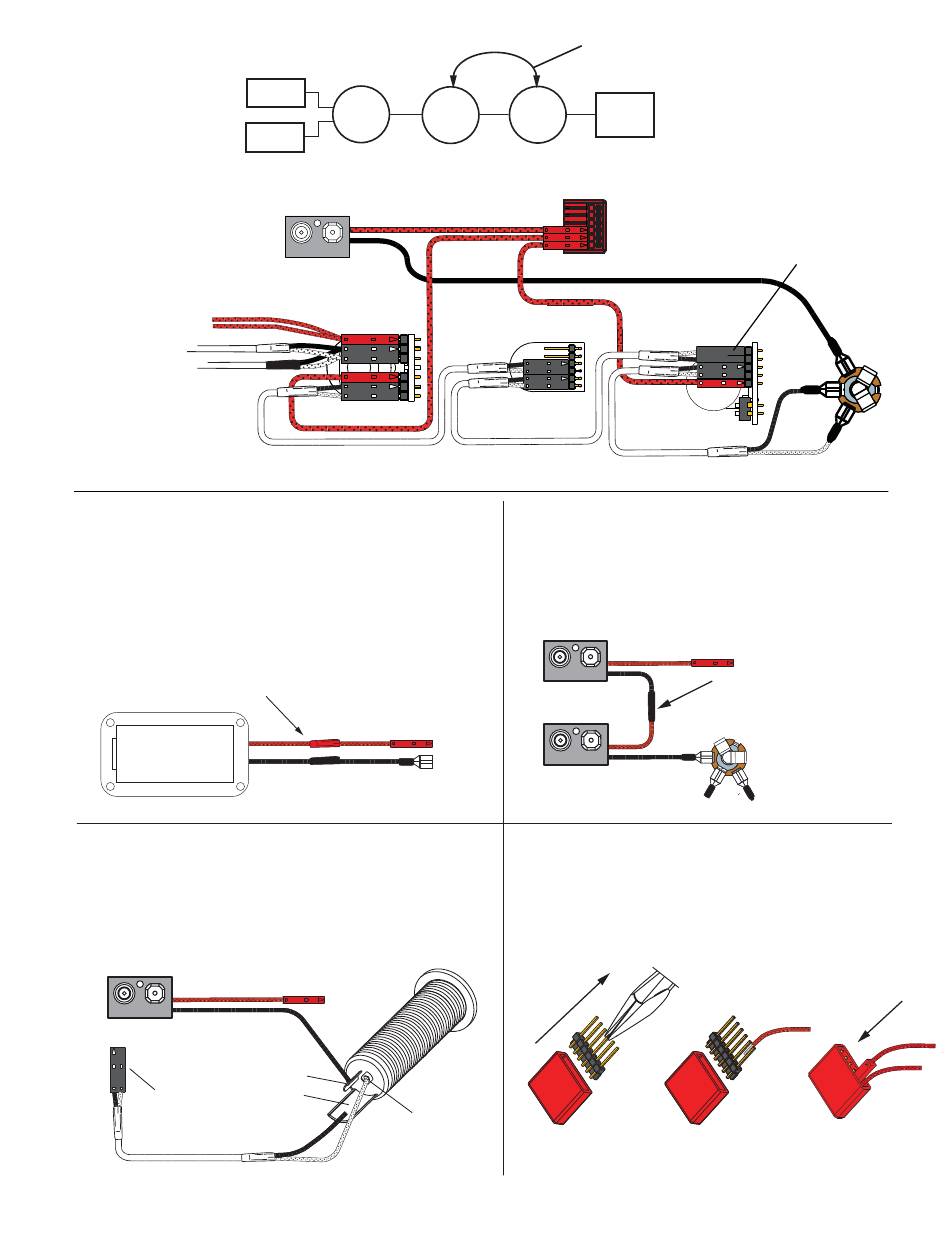

Diagram #5
ABC Balance Control
Master Volume
BTC Control
Output Jack
RED WIRES
FROM PICKUPS
EMG Active Neck Pickup
(Upper 3 pin header)
EMG Active Bridge Pickup
(Lower 3 pin header)
Diagram #6
If the instrument has a Battery Holder:
If your instrument has a 9 or 18-Volt battery holder you can still
use the EMG Connectors to supply power to the pickups.
Simply cut and strip the wires from the battery clip provided.
Twist the wires together (Red to Red and Black to Black) and
use the shrink tubing included to cover the connections.
Soldering the wires is recommended.
Cover these connections with the
shrink tubing provided.
9/18 VOLT
BATTERY
HOLDER
Diagram #8
Soldering to the 152B Panel Jack:
If your instrument has a long Panel Jack like the one below
you will have to solder the output cable as shown.
Ground (Black) to the Sleeve
Signal (White) to the Tip
Battery Negative (Black) to the Ring
RED to BATTERY BUSS
- 9V +
BATTERY
NEG (-)
FROM TONE
OR VOLUME
BTC Control Page 4
NECK
PICKUP
ABC MASTER
CONTROL VOLUME
BRIDGE
PICKUP
- 9V +
B118
ACTIVE BALANCE
CONTROL
RED
RED to BATTERY OR PICKUP BUSS
BLACK to RING terminal
of the Output Jack
RING
SLEEVE
TIP
MASTER VOLUME AND
BTC CONTROL REVERSED
BTC
OUTPUT
CONTROL
JACK
9V+ POWER BUSS
RED
MASTER
VOLUME
Diagram #7
+18 Volt Wiring Option:
If you want to operate your instrument at +18 Volts for more
headroom then use 2 batteries wired as below.
Also, if you are using any type of EQ in your instrument
(EMG-BT, BQ) or anything that boosts the pickup signal then
+18 Volts is recommended.
- 9V +
BLACK
- 9V +
BLACK to RING terminal
of the Output Jack
Diagram #9
Soldering to the battery buss:
If your instrument has an older EMG Pickup you can solder the
pickup RED wire to the buss. Simply use some needle nose pliers,
pull out the V+ header and solder the RED Wire from the pickup(s)
to any of the pins and then re-insert the header into the housing.
1
BATTERY BATTERY
NEG (-) BLACK NEG (-) BLACK
BTC
RED
CONTROL
OUTPUT CABLE
RED TO BATTERY BUSS (+18Volts)
Solder the Black and Red
wires together and cover
the connection with shrink
tubing, or other insulation.
RED
R
S
T
2
NOTE REVERSED
CONNECTOR!
OUTPUT
R
S
T
BOTTOM
VIEW
3
