INSTALLATION INFORMATION
EMG MODEL: B125 ACTIVE BALANCE CONTROL / (ABC)
(PASSIVE/ACTIVE PICKUP INPUT)
SPECIFICATIONS
Input Impedance (Ohms)
Input Referred Noise
Output Impedance (Ohms)
Current @ 9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
General Operation

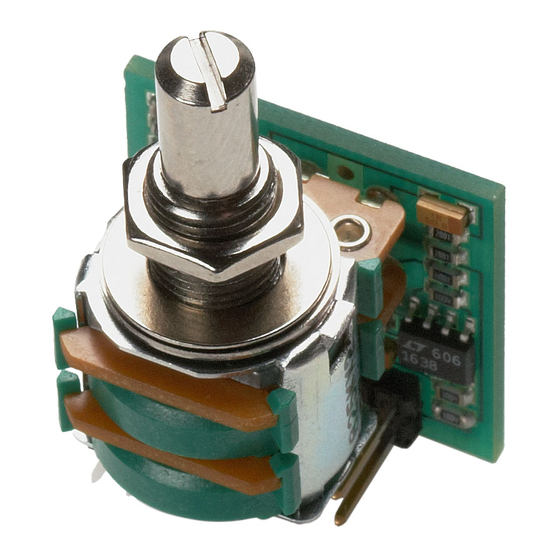

The B125 Active Balance Control (ABC) is used to pan between two EMG-HZ pickups rather than use a selection switch. The B125 features input
buffer amps for each pickup, so if you have 2 Passive Pickups, 2 Active EMG Pickups, or are mixing an active with a passive pickup you can use
the B125 Active Balance control. Pickups can be connected by connectors or hand soldered to the PC board. The control has a center detent
(click) in its rotation.
Installation notes:
The output impedance of the ABC is low, so the existing high resistance volume and tone controls will not work when placed after the ABC.
The active tone control (VLPF) is required for tone. Any of the EMG Accessories like the EXB, BTC or BTS Controls, BQC or BQS Controls, or
OEM Models B30eq or B64eq can be added as well.

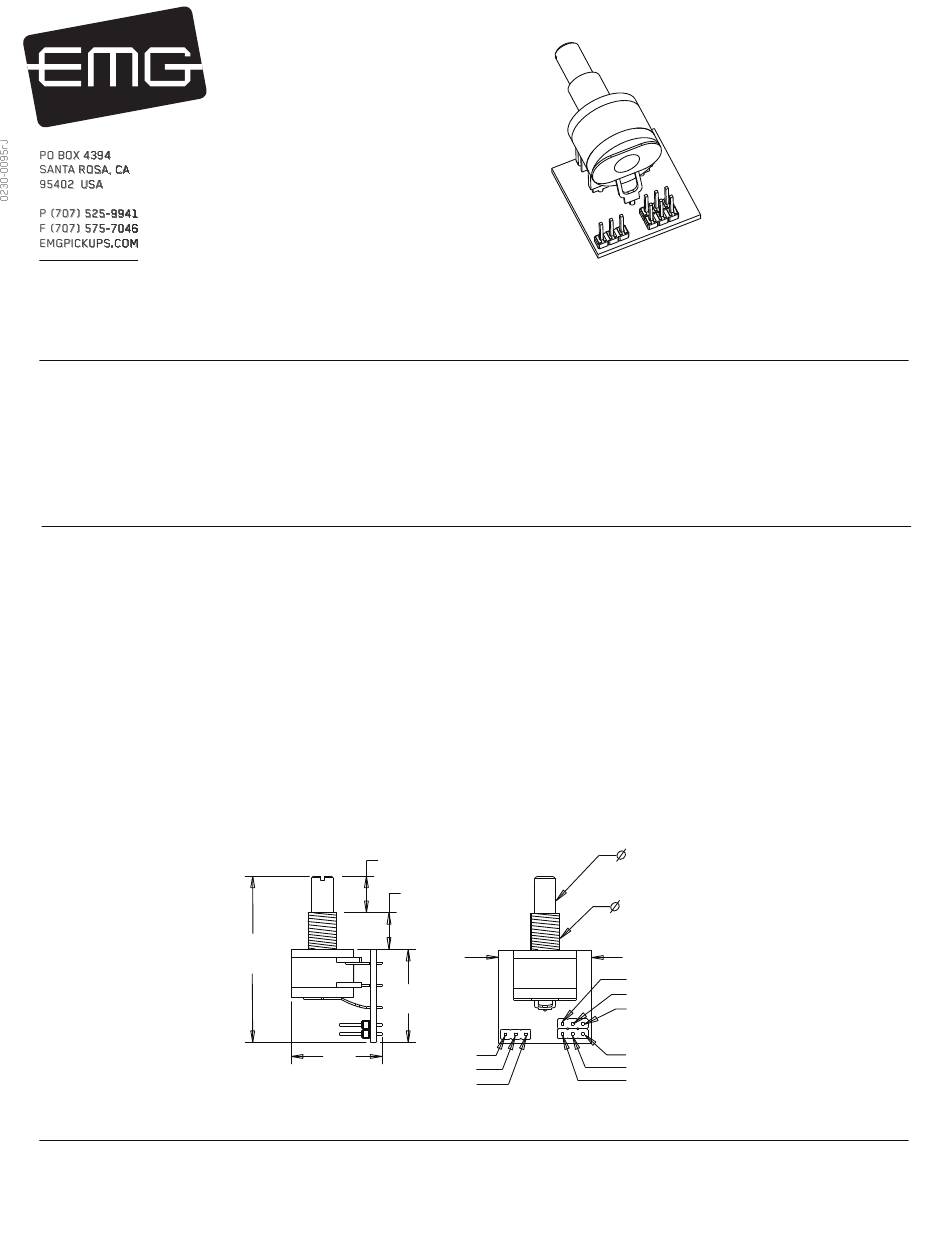

Dimensions:
B125 Active Balance
(ABC)
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2008 Copyright EMG INC. All Rights Reserved.
200K
-130dbV
2K
600
750
18
.393
.393
1.79
1.00
.974
SOLID SHAFT
INCLUDED:
1 B125 ABC Control
1 25K Solid Shaft Pot (Master Volume)*
1 Battery Clip with Buss Connector*
1 Stereo Output Jack (Battery Switching)*
2 Interconnect Cables (1 Red, 1 White)
* Included with your EMG Pickup.
Output
Ground
V+
.236 (6mm)
.309 (8mm P .75)
1.00
Input (Bridge Pickup)
Ground (Bridge Pickup)
V+ (Bridge Pickup)
Input (Neck Pickup)
Ground (Neck Pickup)
V+ (Neck Pickup)
