INSTALLATION INFORMATION

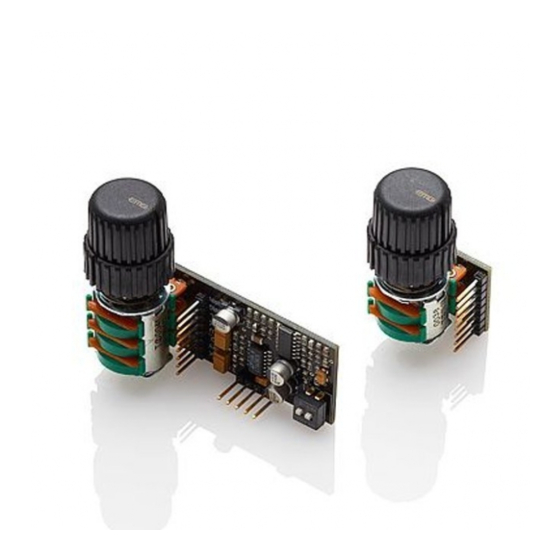

EMG MODEL: BQC CONTROL
(ACTIVE / PASSIVE PICKUP INPUT)
SPECIFICATIONS
Input Impedance (Ohms)
Gain/Attenuation/ Frequency Bass Control
Gain/Attenuation/ Frequency Treble Control
Input Referred Noise
Output Impedance (Ohms)
Recommended Supply Voltage
Current @ 9V/18V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
General Operation
The BQC System is an active EQ circuit for bass guitars. Their effects are illustrated in the graphs on the next page. They allow you separate
control over bass, midrange, and treble. Rotate the controlled clockwise to boost, counterclockwise to cut. There is a center detent for flat
response. Active or Passive pickups can be used with the BQC and BQSrH Controls.
The mid-range control has a variable frequency knob that allows you to sweep through the mid-frequency range from 100Hz to 1KHz. This
selects the frequency to boost or cut. The graphs on page 2 depict the frequency response of the controls.
Battery Power:
If you play the instrument very hard, and are boosting the bass or treble with the BQC, you should consider operating the instrument on +18
Volts (See "Power Tips" under Accessories/product data sheets at http://www.emgpickups.com). If you play mildly and use a minimum of boost
the instrument should operate easily on a single 9-Volt battery. Use an Alkaline or Lithium battery for the best battery life and always unplug
your guitar when you're not using it.

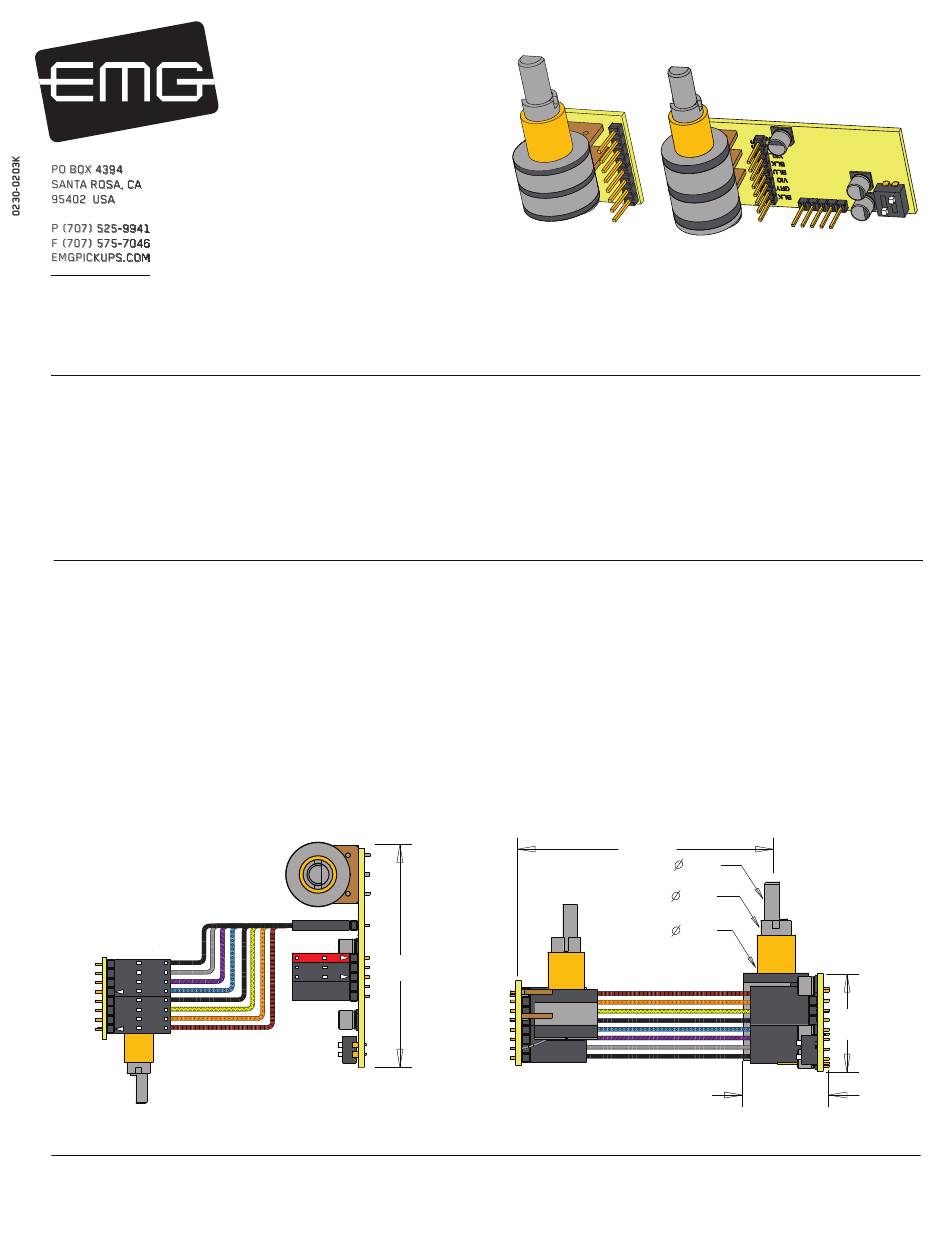

Dimensions:
BQC (Mid/Bass/Treble)
Equalizer
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2011 Copyright EMG INC. All Rights Reserved.
BASS/TREBLE
CONTROL
1 MegOhm
+/-12db/20Hz
+/-12db/(Adjustable)
-120dbV
2K
18 Volts
600/740
750
27 Volts
2.200
(55.8)
MID-RANGE
CONTROL
INCLUDED:
1 BQC Control
3 Knobs
1 Battery Clip with Buss Connector
1 Stereo Output Jack (Battery Switching)
4 Interconnect Cables (2 Red, 2 White)
2.700
(68.5)
6mm
D Shaft
8mm
P .75
9mm
P .075
1.00
(25)
.880
(22.4)
