EMG BTC CONTROL Installation Information page 2

Active/passive pickup input

Advertisement

Installation Instructions:
EMG Model: BTC Control
High Frequency Response Selection:
The BTC has the added feature of allowing you to choose from 4 different
high frequency response curves. This is a nice feature especially if you are

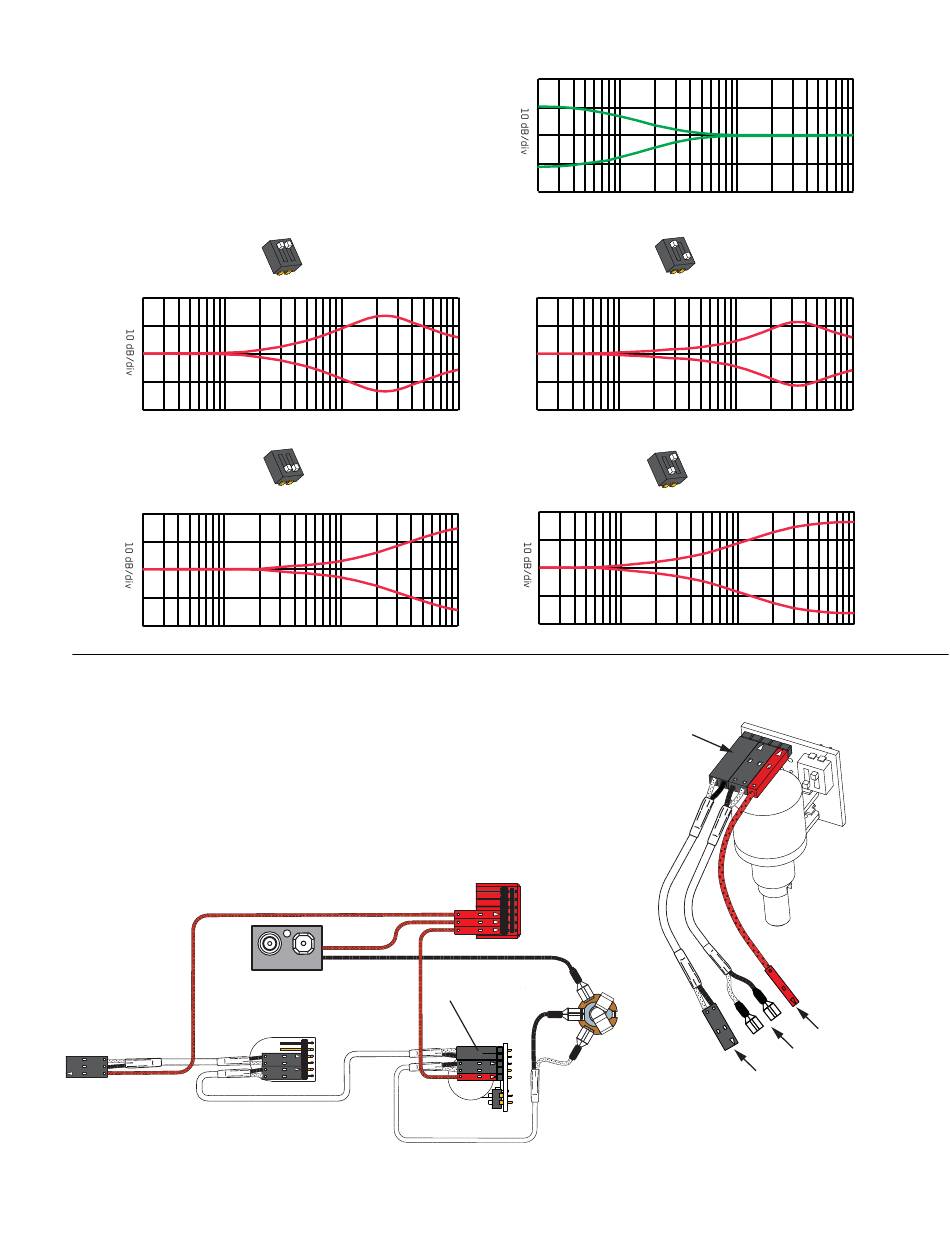

using the BTC with passive pickups. The following diagrams show the dip-switch
positions and the graphs show the resultant frequency response.
The BTC Control is an equalizer style control, offering both boost and cut
at the same frequency locations. The controls feature a center detent (notch)
that lets you know when no equalization is in effect.
BTC CONTROL (TREBLE RESPONSE: ON/ON)
20Hz
BTC CONTROL (TREBLE RESPONSE: 1 OFF/2 OFF)
20Hz
The BTC Control is easily installed by using the connector cables supplied.
Diagram #1 shows the cables connected to the BTC Control. This 5-pin
layout is the same for all EMG Accessories, so they can be interchanged.
There are a variety of ways instruments can be wired. The examples shown
here are only a few. If your instrument has different wiring than shown here
go to our website: http://www.emgpickups.com for alternate diagrams.
Diagram #2 below shows the installation of a single Volume control along with
the BTC Control.
Diagram #2
Master Volume
BTC Control
BTC Control Page 2
ON/ON
1KHz
OFF/OFF
1KHz
BATTERY
BUSS
- 9V +
NOTE REVERSED
CONNECTOR!
VOLUME
BTC
CONTROL
OUTPUT CABLE
BTC CONTROL (BASS BOOST & CUT RESPONSE)
20Hz
BTC CONTROL (TREBLE RESPONSE: 1 ON/2 OFF)
10KHz
20Hz
BTC CONTROL (TREBLE RESPONSE: 1 OFF/2 ON)
20Hz
10KHz
Diagram #1
R
S
T
OUTPUT
1KHz
ON/OFF
1KHz
OFF/ON
1KHz
NOTE REVERSED
INPUT CONNECTOR
OUTPUT TO JACK
INPUT
10KHz
10KHz
10KHz
RED TO 9V + BUSS
