Summary of Contents for EMG BTS SYSTEM

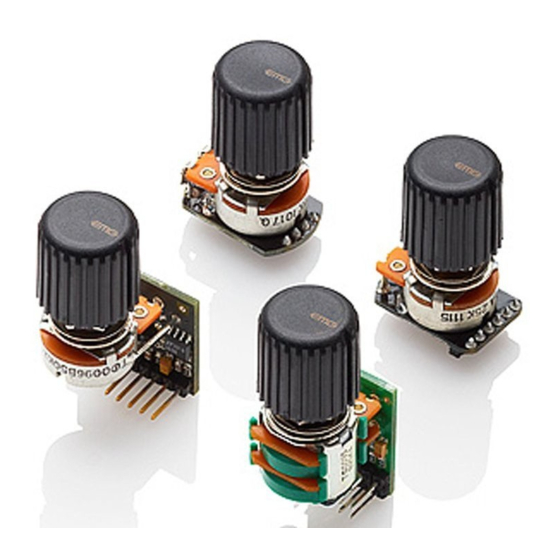

- Page 1 Инструкция по использованию бас-гитарной системы EMG BTS System (на английском языке)
- Page 2 Warranty All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This warranty covers only those pickups and accessories sold by authorized EMG Dealers.
- Page 3 On the back side of the ABC PC Board there are 4 pads to solder to. If you already have EMG Active Pickups in your instrument you can use Solder the signal wire (Hot) of the bridge pickup to the BRG Pad, the existing pickup cables or you can use the new pickup cables provided.
- Page 4 Installation Instructions: EMG Model: BTS System NECK Diagram #3 (preferred wiring order) PICKUP ABC Control OUTPUT MASTER BTS Control CONTROL CONTROL VOLUME JACK BRIDGE Master Volume PICKUP Output Jack 9V+ POWER BUSS - 9V + BATTERY NEG (-) BLACK RED WIRES...
- Page 5 Soldering to the battery buss: If your instrument has a long Panel Jack like the one below If your instrument has an older EMG Pickup you can solder the you will have to solder the output cable as shown. pickup RED wire to the buss. Simply use some needle nose pliers,...
