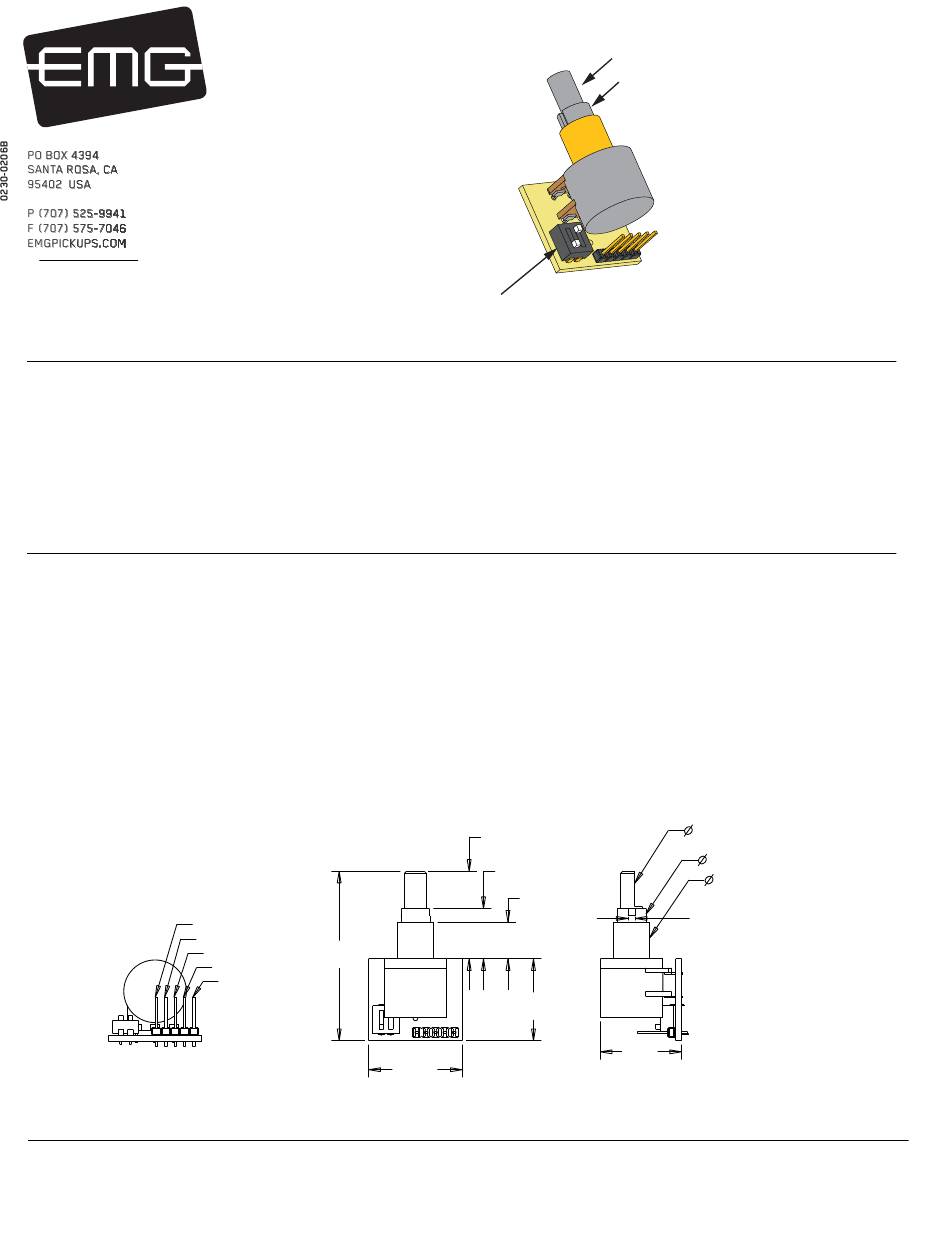

INSTALLATION INFORMATION
EMG MODEL: BTC CONTROL
(ACTIVE / PASSIVE PICKUP INPUT)
SPECIFICATIONS
Input Impedance (Ohms)
Gain/Attenuation/ Frequency Bass Control
Gain/Attenuation/ Frequency Teble Control
Input Referred Noise
Output Impedance (Ohms)
Recommended Supply Voltage
Current @ 9V/18V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
General Operation
The BTC Control is a 2-band equalizer for Bass guitar. The BTC features single-pole filters for broadband equalization. Often the broader
single-pole filters are preferred for musical instruments because they are less selective, easier on the ear, and sound more "musical". One of
the features of the BTC Control is a 2-position dip-switch that controls the slope of the high frequency response. By choosing one of the four
combinations the high frequency response can be tailored to your liking. The BTC Control has a high input impedance and can be used with active
or passive pickups. Bass and Treble controls are mounted on a concentric shaft and knobs are included.
Battery Power:
If you play the instrument very hard, and are boosting the bass or treble with the BTS, you should consider operating the instrument on +18
Volts (2 Batteries in series, see page 4). If you play mildly and use a minimum of boost the instrument should operate easily on a single 9-Volt
battery. Use an Alkaline or Lithium battery for the best battery life and always unplug your guitar when you're not using it.
Dimensions:
BTC (Bass/Treble)
Equalizer
VOLTS +
OUTPUT
GROUND
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2010 Copyright EMG INC. All Rights Reserved.
1 MegOhm
+/-12db/20Hz
+/-12db/(Adjustable)
-120dbV
2K
18 Volts
600/740
750
27 Volts
1.813
(46)
GROUND
INPUT
High Frequency
Selection dip-switch
INCLUDED:
1 BTC Control
1 Set Concentric Knobs
1 Battery Clip with Buss Connector
1 Stereo Output Jack (Battery Switching)
4 Interconnect Cables (2 Red, 2 White)
.937
(24)
.538
(14)
.392
(10)
.875
(22.2)
1.000
(25.4)
Treble Control
Bass Control
6 x 9mm
D Shaft
8 x 4mm
9 x 9mm
P .75
.077 x .077 Slot
(2mm)
.875
(22.2)
