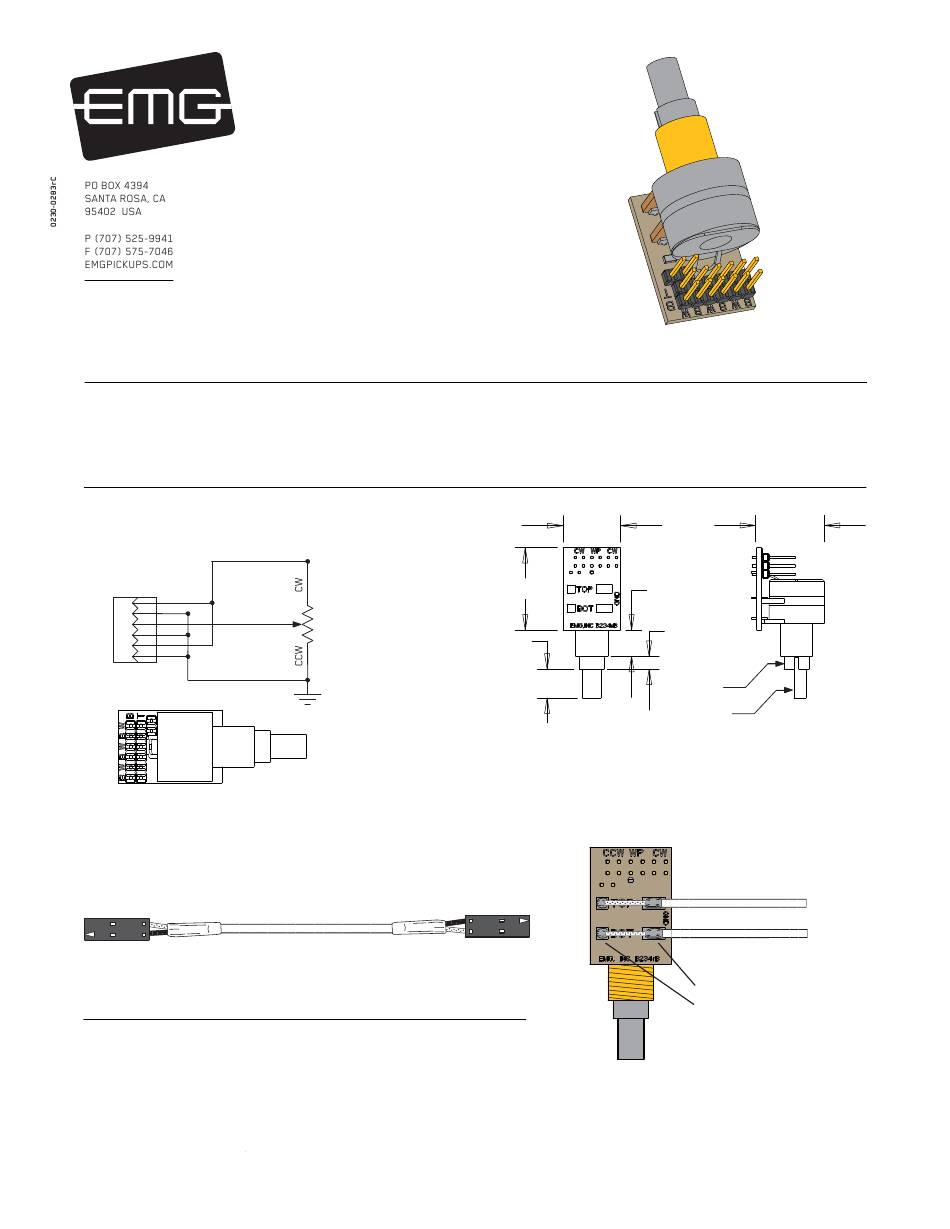

INSTALLATION INFORMATION
EMG MODEL: B234rB STACKED VOLUME CONTROLS
OR STACKED VOLUME/TONE CONTROLS
(ACTIVE PICKUP INPUT 25K OHM, BLACK PC BOARD)

General Operation

The B234rB is a stacked (concentric) set of 25K Ohm controls for EMG Active Pickup Systems. The top control functions as a volume control,
while the bottom control can be either another volume control, or by installing a shorting plug it can become a tone control. Examples are shown
in the included diagrams. The B234rB features plug-in compatibility with all EMG Pickup Systems. If necessary, you can solder existing pickup
cables to the wiper and ground contacts on the PC Board. If you need left handed operation (CCW) then contact EMG directly and we can supply
one for you. Also available is the B258rA-HZ for passive pickups (Green PC Board).

Schematic Diagram:

B234rB Controls
(Both controls have a similar pinout)
1
IN/OUT
2
GND
3
IN/OUT
4
GND
5
IN/OUT
6
GND
1
2
3
4
5
6
VIEWED LOOKING AT
CONNECTOR PINS
The EMG coax cables for wiring the guitar are a 2-pin pair,
The signal or "Hot" wire is White, the Ground (Shield) wire is Black.

SCHEMATIC NOTES:

The Schematic diagram above shows how each B234 Volume control is configured.
Pins 1 and 2 are the input or output of the CW (Clockwise) terminal of the control.
Pins 3 and 4 are the input or output of the W (Wiper) terminal of the control.
Pins 5 and 6 are duplicates of pins 1 and 2, the CW terminal (Clockwise).
Pins 2, 4, and 6 go directly to ground, the CCW (Counter-Clockwise) terminal of the control is grounded.
© 2013 Copyright EMG INC. All Rights Reserved.
W
A25K
.700
1.000
.320
.155
.350
The B234rB has solder pads that can be used
if you do not have connectors on the pickup
cables.
.875
BOTTOM
CONTROL
TOP
CONTROL
Pickup Cable
Pickup Cable
Solder Pickup Braids to GND Pads
Solder Pickup Hots to Input Pads
6
