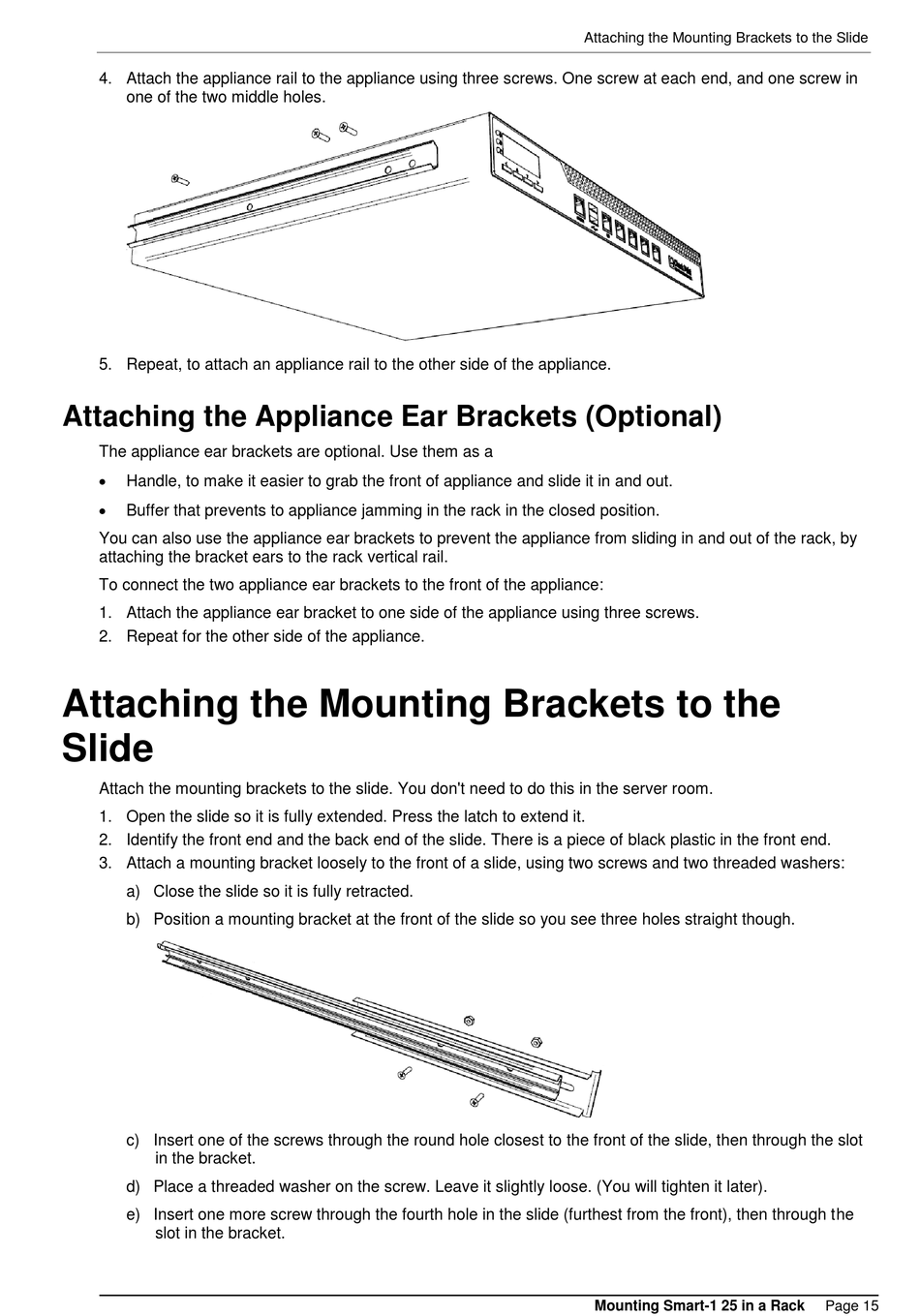

4. Attach the appliance rail to the appliance using three screws. One screw at each end, and one screw in
one of the two middle holes.
5. Repeat, to attach an appliance rail to the other side of the appliance.

Attaching the Appliance Ear Brackets (Optional)

The appliance ear brackets are optional. Use them as a

Handle, to make it easier to grab the front of appliance and slide it in and out.

Buffer that prevents to appliance jamming in the rack in the closed position.
You can also use the appliance ear brackets to prevent the appliance from sliding in and out of the rack, by
attaching the bracket ears to the rack vertical rail.
To connect the two appliance ear brackets to the front of the appliance:
1. Attach the appliance ear bracket to one side of the appliance using three screws.
2. Repeat for the other side of the appliance.
Attaching the Mounting Brackets to the
Slide
Attach the mounting brackets to the slide. You don't need to do this in the server room.
1. Open the slide so it is fully extended. Press the latch to extend it.
2. Identify the front end and the back end of the slide. There is a piece of black plastic in the front end.
3. Attach a mounting bracket loosely to the front of a slide, using two screws and two threaded washers:
a) Close the slide so it is fully retracted.
b) Position a mounting bracket at the front of the slide so you see three holes straight though.
c) Insert one of the screws through the round hole closest to the front of the slide, then through the slot
in the bracket.
d) Place a threaded washer on the screw. Leave it slightly loose. (You will tighten it later).
e) Insert one more screw through the fourth hole in the slide (furthest from the front), then through the
slot in the bracket.

Attaching the Mounting Brackets to the Slide

Mounting Smart-1 25 in a Rack Page 15
