6.1 Displaying current meter status

User loop "LOOP 0"

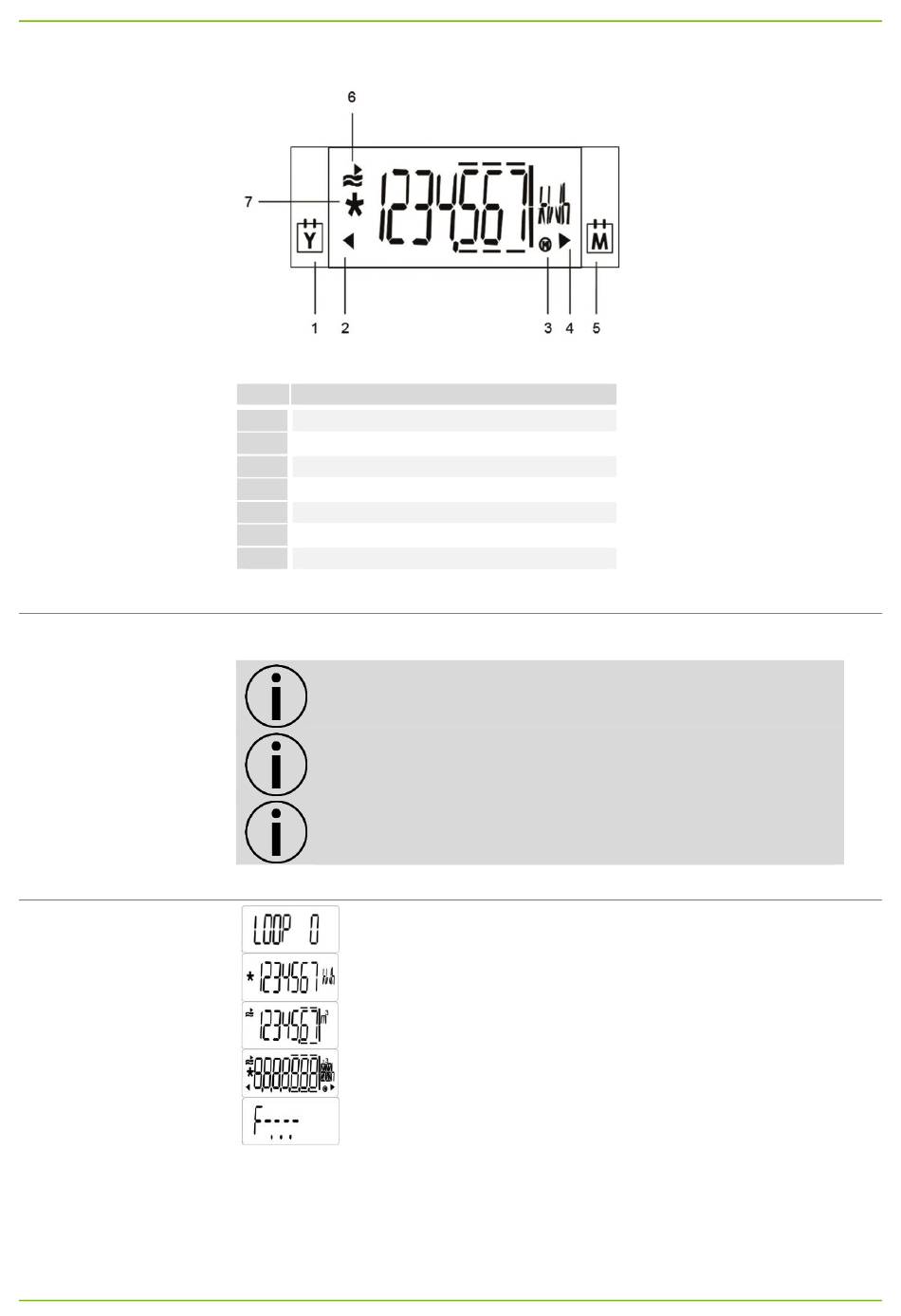

Fig. 14: LCD
No. Description
1
Identification previous year value
2 Previous year value
3 Maxima
4 Previous month value
5 Identification previous month value
6
Activity display at flow
7 Calibrated value
The meter displays the current meter status in kWh, MWh, MJ or GJ.
Note: In order to prevent reading errors, the decimal places of
the values displayed are marked with a frame.
Note: Calibrated values can be recognized by an additionally
displayed star symbol.
Note: Both display range and data displayed can differ from
the description depending on the appliance parameterization.
Certain button functions can also be blocked.
User loop
Energy quantity
Volume
Segment test
In case of error: error code
