Installation
Examples of installation
You can install the meter in any position e.g. vertically or horizontally. In order
to avoid accumulation of air and disruption in operation, fit the meter in a verti-
cal installation position and not in the uppermost area of a pipeline.

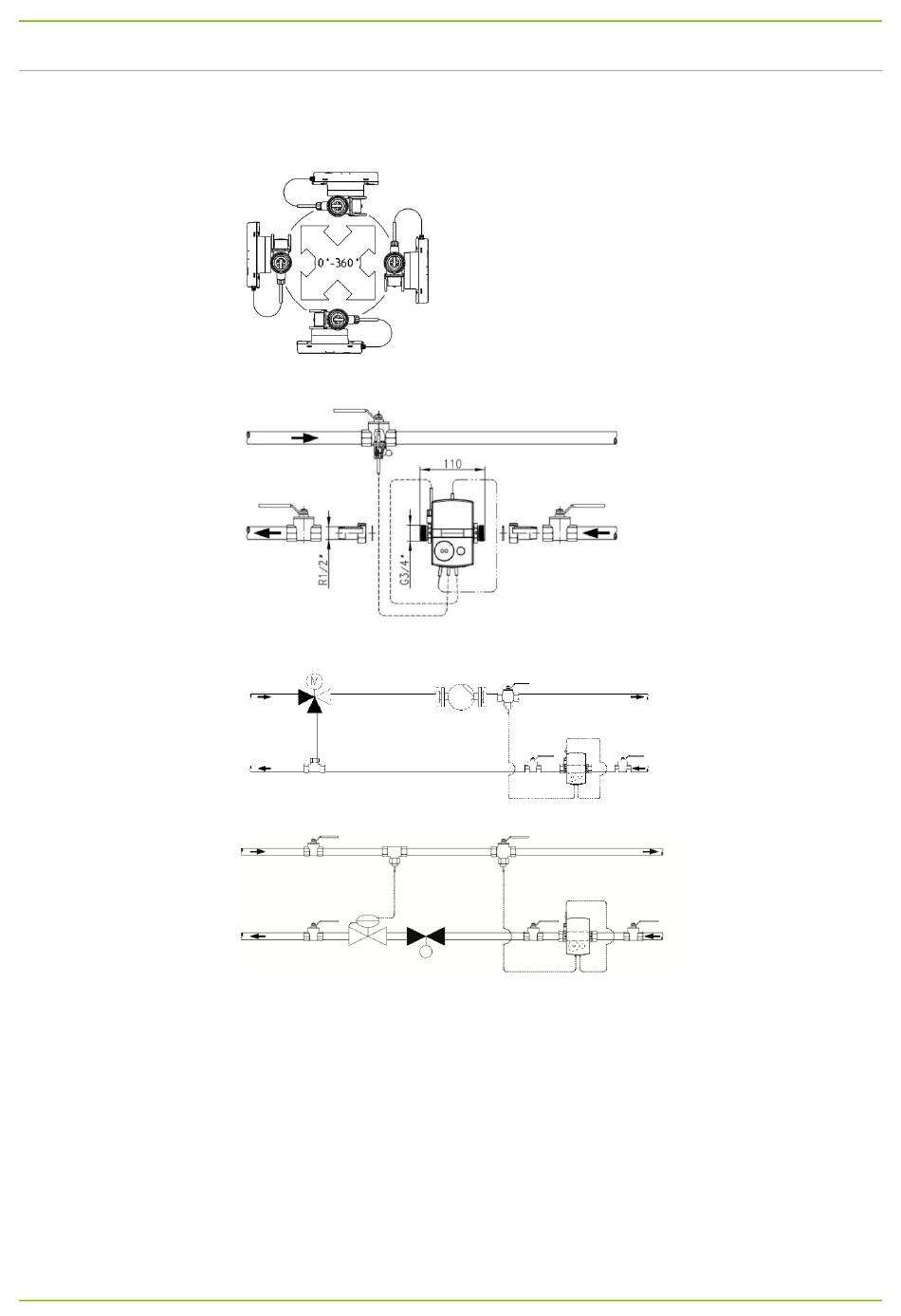

Fig. 4: Mounting position
Fig. 5: Example for installation
Fig. 6: Installation for circulation with admixing; placement of temperature sensors
Fig. 7: Installation for circulation with throttling configuration (flow sensor in flow direction before control
valve / differential pressure regulating valve)
*
This position is not permitted for cold
meters and in cases where moisture can
enter the electronic unit due to conden-
sation (e.g. during an interruption in the
summer).
*
