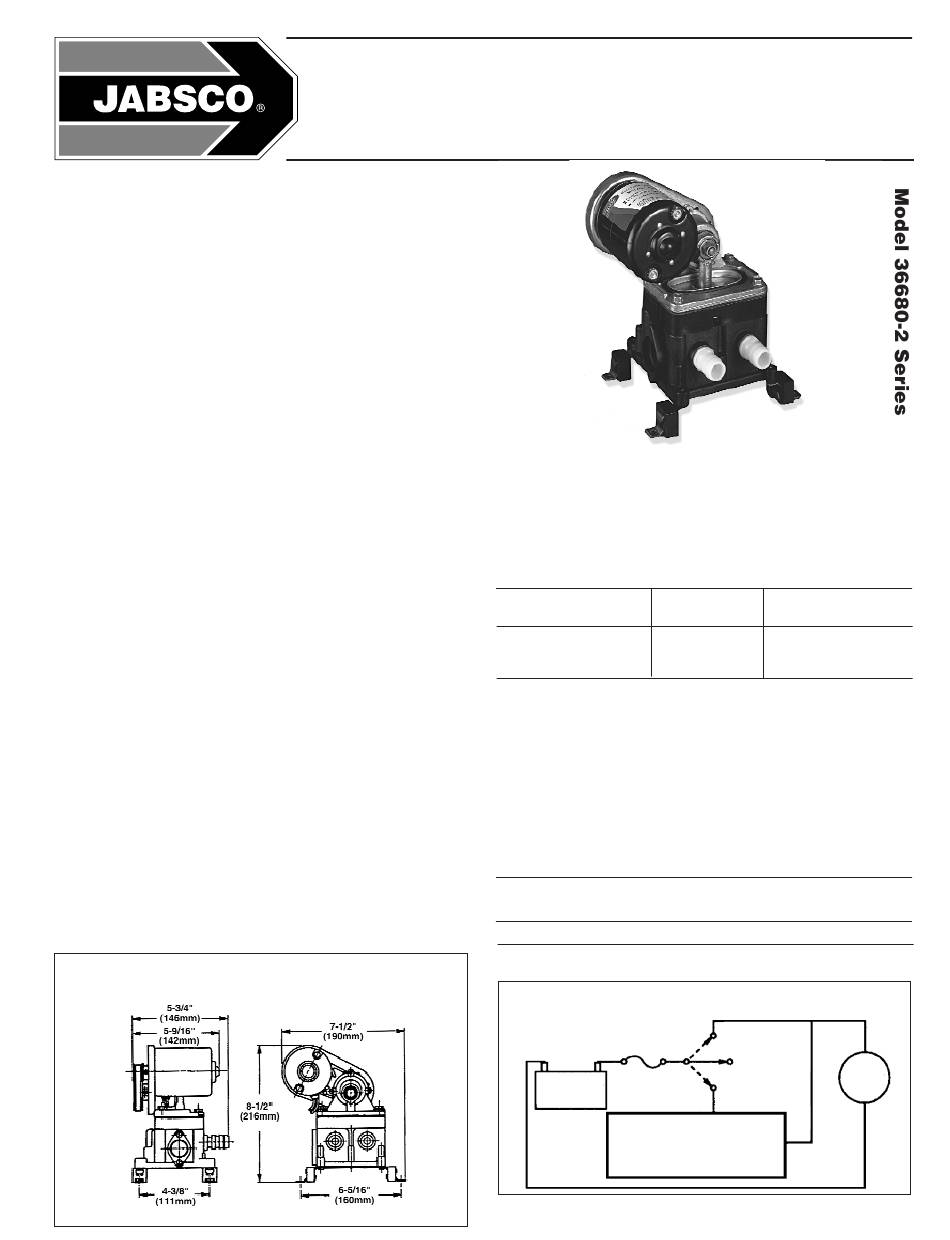

JABSCO 36680-2 Series Manual

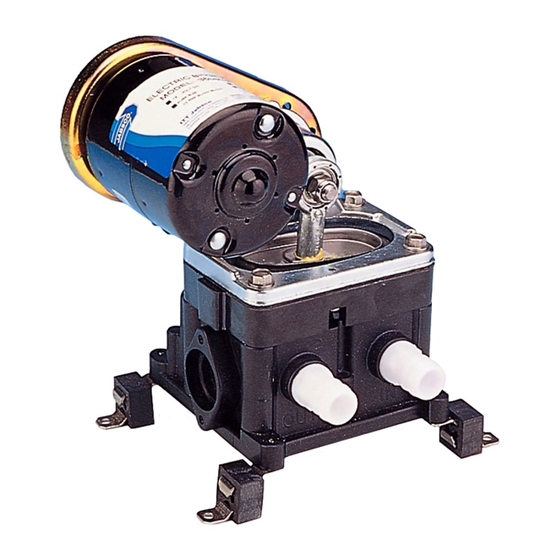

ELECTRIC BILGE PUMP
FEATURES
• Self-Priming
• Diaphragm Design Allows Dry Running
• Quiet Operation
• Built-in Hydraulic Pulsation Dampener
• Permanently Lubricated Ball Bearings on Shaft and
Connecting Rod
• Corrosion Resistant Materials Throughout for Sea Water
Service
• NMMA Type Accepted
• Meets USCG Regulation 183.410 and ISO 8846 MARINE
for Ignition Protection.
SPECIFICATIONS
Open Flow:
Vert. Dry Suction Lift:
Ports:
Weight:
INSTALLATION
MOUNTING
Mount upright in a dry location (above highest bilge water
level) on a solid surface. Selection of a dry cool ventilated
location will generally extend pump life. Adjust belt tension
for 1/4 inch play between pulleys.
PLUMBING
For intake and discharge use 3/4" ID non-collapsible hose.
Keep intake and discharge lines free of kinks and restric-
tions. Use a 3/4" bilge strainer (Model 35890-0000) or a 3/4"
in-line strainer (Model 36200-0000) in the intake line from the
bilge to protect pump from debris. Use a 3/4" thru-hull fitting
located above the waterline at all angles of heel or pitch.
WIRING
Wiring pump in a circuit independent of all other electrical
fixtures. Use stranded copper wire. Install fuse/breaker in
positive lead. See table for recommended wire and fuse size.
DIMENSIONAL DRAWING
Inches (Millimetres)
U.S. GPM Liters/Min. Imp.GPM
5.5 21
7 Feet (2,1m)
3/4" Slip-on Hose
8 lb (3,6 kg)
See diagram for wiring connections. Use a 10 amp-rated
switch (44960-Series). After installation, it is recommended
4.5
that voltage be checked at the motor terminals with motor
operating under full load. Voltage should not be less than
90% of rated motor voltage.
STANDARD MODELS
Model
36680-2000
36680-2010
MAINTENANCE
WINTER STORAGE: When possible, it is preferred that the
complete pump be removed and stored in a warm dry place.
If this is not possible, the pump must be completely drained,
hoses removed and pump run until all water is expelled.
WIRING AND FUSE SIZE
Wire Length Between
Battery and Motor
1-25 feet
25-50 feet
Fuse/Breaker*
*Customer supplied, not included with pump.
WIRING DIAGRAM FOR AUTOMATIC OPERATION
3-WAY SWITCH
44960-0001
BATTERY
Model 36680-2 Series
Voltage
12 Vdc
24 Vdc
Model
36680-2000
12 Volt
12 AWG
10 AWG
10 AMP
MANUAL
OFF
FUSE/
AUTOMATIC
BREAKER
Automatic Bilge Switch
Model 34875-0000 or
Model 30295-1000
per instructions
Amperage
(Nominal)
7
5
Model
36680-2010
24 Volt
14 AWG
14 AWG
6 AMP
PUMP
