JABSCO 28 Series Manual

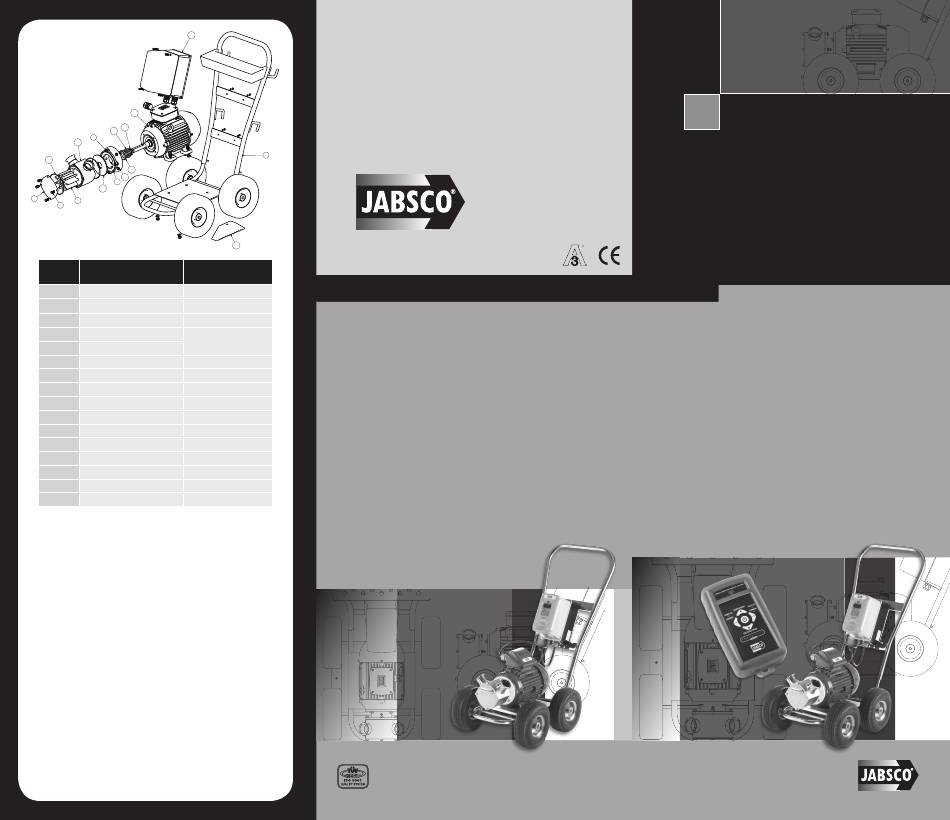

Exploded View
15
7
12
11
5
9
8
10
13
1
14
3
6
4
Key Description Replacement Part
1 Adaptor 28523-1100
2 Cart Assembled 52804-1000
3 End cover 18753-0374
4 Hex head screw (4) 18753-0285
18753-0285
5 Hex head screw (4) 18753-0285
6 Impeller 8984-0005
7 Motor 52811-1000
8 O Ring 18753-0267
9 Body 28504-1100
10 Seal Seat 18753-0237
11 Seal Mech 18753-0253
12 Spacer (4) 28638-1001
13 Washer 91613-0146
14 Wearplate 18753-0202
15 VFD Inverter 52812-1000
16 Wheel Chock and Cable 52808-1000
PRIMING. Be sure suction lines are airtight or pump will not
self prime.
DISCHARGE. When transferring liquids further than 25 feet,
use one size larger discharge line than discharge port size.
RUNNING DRY. Unit depends on liquid pumped for
lubrication. DO NOT RUN DRY for more than 30 seconds. Lack
of liquid will damage the impeller.
TEMPERATURES. The operating temperature limits of the
pump depend on the impeller compound. The following
ranges apply:
EPDM - 45° to 185° F (7° to 85° C).
CLEANING. Before using pump, it should be disassembled
and cleaned to remove any dust and dirt resulting from
storage or shipping. Wash parts in standard cleaning solutions
approved for handling stainless steel. Thoroughly rinse before
reassembly.
DO NOT USE IODINE BASED SANITIZERS as the iodine attacks
the elastomer materials used in the impeller.
All parts have been expertly machined and polished.
HANDLE WITH CARE. DO NOT DROP OR MISHANDLE.
2
16
Number
THE PRODUCT DESCRIBED HEREIN IS SUBJECT TO THE JABSCO ONE YEAR LIMITED
WARRANTY, WHICH IS AVAILABLE FOR YOUR INSPECTION UPON REQUEST.
© Copyright 2011 ITT Corporation
www.jabsco.com
UNITED STATES
East Coast
Tel: +1 978 281 0440 Fax: +1 978 283 2619
West Coast
Tel: +1 714 557 4700 Fax: +1 714 628 8478
UNITED KINGDOM
Tel: +44 (0) 1992 450 145 Fax: +44 (0) 1992 467 132
GERMANY
Tel: +49 (0) 40 53 53 73 0 Fax: +49 (0) 40 53 53 73 11
ITALY
Tel: +39 039 6852323 Fax: +39 039 666307
JAPAN
Tel: +81 (0) 45 475 8906 Fax: +81 (0) 45 477 1162
CHINA
Tel: (86)21 2208 2888 Fax: (86)21 2208 2999
950-0750 Rev A. 4/2011
28 Series
V F
TM
era lex
FLEXIBLE IMPELLER
PUMP CART SYSTEM
Carted pump/VFD system with no remote
52800-1105
Carted pump/VFD system with wired
remote
52800-2105
Carted pump/VFD system with wireless
remote
52800-3105
Pump Head, Flange, Motor
52800-4105
Pump Head, Flange, Motor VFD
52800-5105
