GB

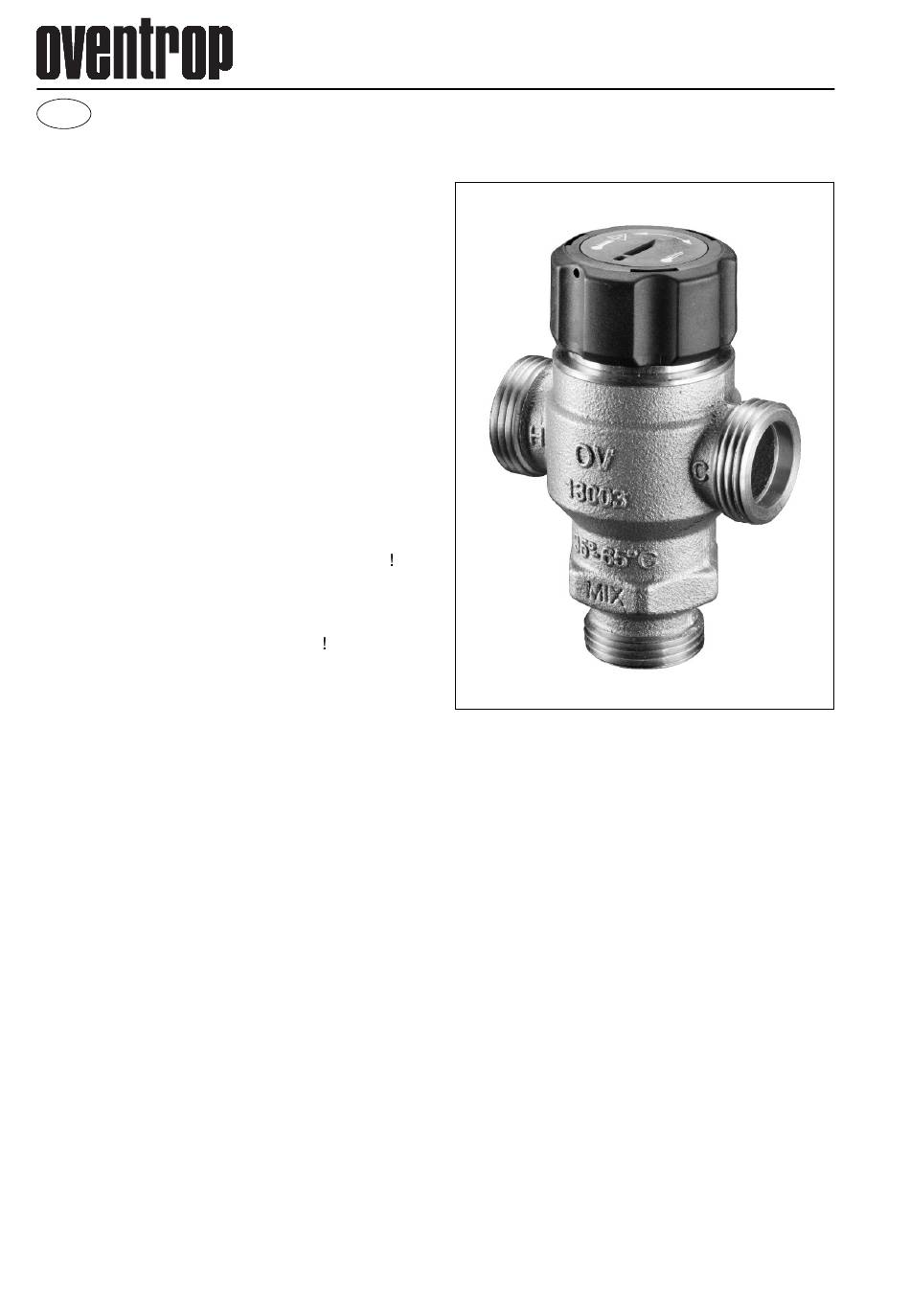

"Brawa-Mix" male x male x male
DN 20 - Item no.: 130 03 06
DN 25 - Item no.: 130 03 08
DN 32 - Item no.: 130 03 10
Thermostatic mixing valve for potable water
and heating systems
PN 10
with flat sealing male threads
(DIN ISO 228)
Read installation and operating instructions carefully
before installing the thermostatic mixing valve
The installation and operating instructions have
to remain with the user of the system
Content:
1.
General information ............................... 7
2.
Safety notes........................................... 7
3.
Application............................................. 7
4.
Function................................................. 7
5.
Installation ............................................. 7
6.
Technical data........................................ 8
7.
Dimensions ............................................ 8
8.
Flow chart .............................................. 9
9.
Accessories ........................................... 9
10.
Examples of installation......................... 10
6
Valves, controls + systems
"Brawa-Mix"
Installation and operating instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for oventrop Brawa-Mix
Summary of Contents for oventrop Brawa-Mix
-
Page 1: Table Of Contents
Valves, controls + systems “Brawa-Mix“ Installation and operating instructions “Brawa-Mix“ male x male x male DN 20 – Item no.: 130 03 06 DN 25 – Item no.: 130 03 08 DN 32 – Item no.: 130 03 10 Thermostatic mixing valve for potable water... -
Page 2: General Information
The sensor element integrated in the “Brawa-Mix” is engulfed by the mixed water and achieves an 1.2. Copyright exact regulation. The valve also features a fail-safe... -
Page 3: Function
4. Function Infinitely variable setting of the mixed water tem- perature between 30°C - 65°C is carried out at the handwheel. Breakdowns and malfunctions are re- liably avoided by a control piston made of high quality plastic and a resistance of the thermostatic mixing valve to calcification and corrosion is en- sured. -
Page 4: Technical Data
6. Technical data 8. Flow chart Connections: DN 20: G 1 male DN 25: G 1¼ male DN 32: G 1½ male flat sealing male threads DIN ISO 228 Materials: bronze, stainless steel (in contact EPDM, PPO with the fluid) Medium: potable water, heating water according to VDI 2035... -
Page 5: Examples Of Installation
10. Examples of installation for potable water systems Illustr. 4 Examples of installation for heating systems Temperature limiter for surface heating systems Return temperature limiter Illustr. 5 Subject to technical modification without notice. For an overview of our global presence visit 130030680 08/2012 www.oventrop.com.
