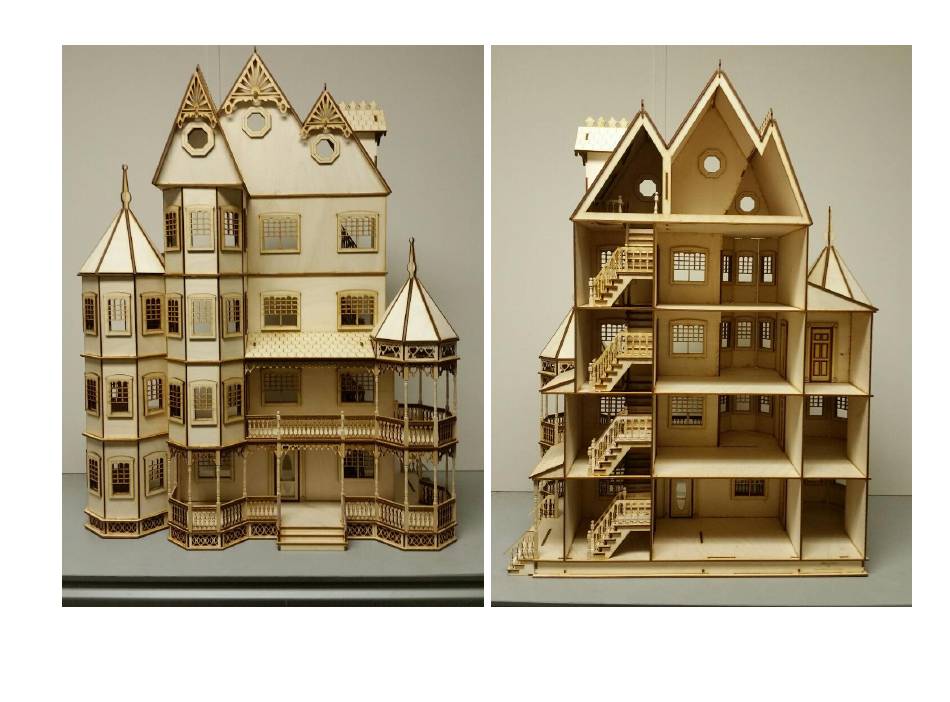

- Page 1 Ariana Victorian Dollhouse Instructions...
- Page 2 NOTE 1: Please do a dry assembly using only tape to hold house together. This will get you familiar with parts, location, and fit. This also gives you a chance to visualize how you want to approach the build. Materials for build; 1.
- Page 3 Parts for Assembly 25 small Outer Base floor and rails 25 small interior 8 large Outer window frames marked S1 thru S20 window frames Porch stair assemblies window frames 1 small / 2 large set 6 octagon 8 roof gazebo window frames extensions 8 large interior...
- Page 4 Parts for Assembly Continued First floor Second floor Third floor Fourth floor Fifth floor Walls 1A thru 1J Walls 2A thru 2N Upper gazebo roof support Walls 3A thru 3M 4 GABLES 16 gazebo roof Walls 4A thru 4E panel supports Walls 5A thru 5D 8 large and 8 small 3 sets of assembled interior stairs...
- Page 5 Assembly Step 1. Assemble lower support base by installing rails S1 thru S20 onto base. Match rail numbers to the base numbers. Figure 1. If you are NOT doing a dry assembly and have painted parts glue parts to base and install 1 Floor.
- Page 6 Assembly Step 2 Continued. Next take the correct length first riser and glue to side rails as seen in Figure 8. Next take the larger tread step and install by aligning the front notch into the side rails. Make sure that the step is all the way forward. Figure 9. Next install your final steps for each of the stairs again making sure that the steps is in the rail slot and all the way forward.
-
Page 7: Safety Rail
Assembly Step 4. Gather walls 1C, 2C, 3C and 4C. Install door frames on both sides of door, figure 15. If you want to install doors request to purchase at www.laserdoolhouses.com Once door frames are installed now align and install the stairs to the right side of the wall. Figure 16 DO NOT INSTALL UPPER STAIR SAFETY RAIL!! Figure 15... - Page 8 Assembly Step 6. Once first floor walls are dry remove 2 floor and weights. Figure19. Step 7. Locate the bag of 11 porch rails and 14 5.25” porch post and install starting from the left side two post and then the porch rail. Each rail is cut to firmly fit in between the post.
- Page 9 Assembly Step 9. Install the Newel post on the first floor. Figure 27. Next install newel post on the 2 floor with safety railings. Step 10. Install all 2 floor window frames, doors and stairs as done on the 1 floor, Figure 29.
- Page 10 Assembly Step 12. Install upper running trim between post. Again they should fit snug. The exception is the last one at the end toward right wall of gazebo. Figures 36 and 37. Figure 36 Figure 37 Step 13. Install 3 floor walls by completing as you did for the prior floors.
- Page 11 Assembly Step 14. Install remaining panel supports by inserting into the main roof support and then the joiner. Once all are in press panel supports even into joiner and glue. Figure 41. Next install the smaller roof cap assembly, figure 42. Next locate the 8 smaller roof panels and install into the open angels as seen in figure 43.
- Page 12 Assembly Step 16. With the gazebo and third floor in now complete installing stairs newel post and then glue 4 floor onto 3 floor walls as you did with prior floors, figure 48. Let glue dry. Next install onto 4 floor the left tower by using the larger roof panel supports, center joiner, and tower cap.
- Page 13 Assembly Step 19. Install right roof panel onto wall 5C by first inserting into the slot on wall 5B at rear, then the two slots on wall 5C, figure 57. Next install left roof panel onto wall 5C, figure 58. Install wall 5D make sure the door opens away from staircase, figure 59. Next install wall 5A by inserting into right roof panel on 5C then into the floor.
- Page 14 Assembly Step 21. Install dormer roof picket rail. Figure 66. Next install dormer right and left roof panels, figure 67. Finally install dormer gable even with front edge of roof panels, figure 68. Figure 66 Figure 68 Figure 67 Step 22. Install remaining roof pickets between three roof tiers, figure 69. Last install remaining Gables to the roof and assembly is completed.
- Page 15 Congratulations Ariana Dollhouse completed. Laser Dollhouse Designs. www.laserdollhouses.com laserdollhouses@aol.com...
