User guide
Fall Detector™
312.00MHz

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fall Detector and is the answer not in the manual?

Questions and answers

Related Manuals for Tunstall Fall Detector

Summary of Contents for Tunstall Fall Detector

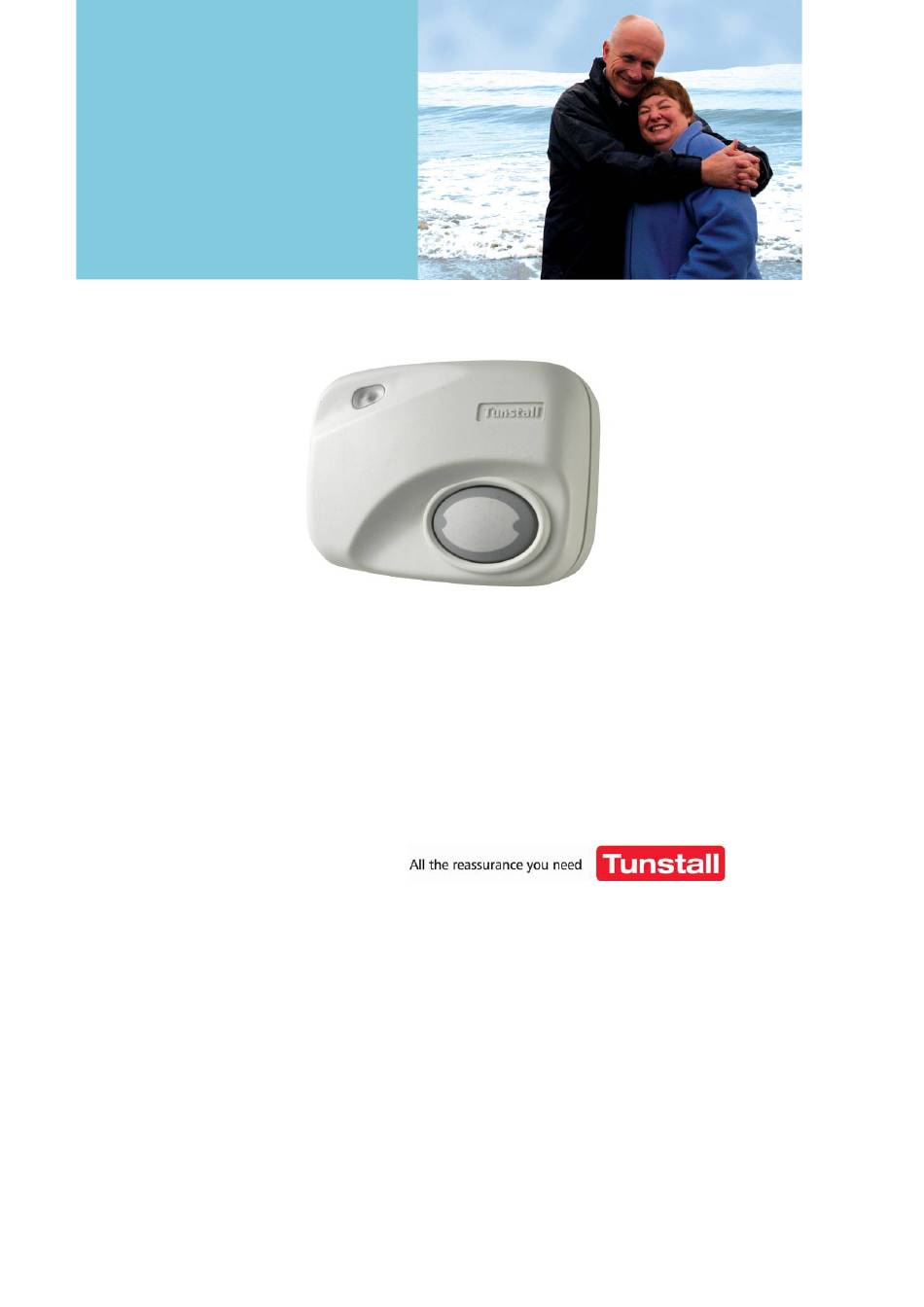

  • Page 1 User guide Fall Detector™ 312.00MHz...
  • Page 2 Installation and User Guide What is the fall detector? Your fall detector™ is a battery operated device containing a microprocessor, detector and a radio transmitter. It will automatically trigger an alarm call on your personal emergency response system if it detects that you have fallen.
  • Page 3 Installation and User Guide Wearing the fall detector Clip the fall detector to your belt or clothing in the upright position shown in the drawing. It needs to be in the upright position to reduce the possibility of false activation.

  • Page 4: Manual Operation

    • If the red light flashes on and off, the fall detector is still triggering an alarm call, but is also indicating to you that the battery needs to be replaced.
  • Page 5 Installation and User Guide • The fall detector must be worn at or above the waist, where it will detect the maximum number of falls. • When removing the fall detector, handle carefully to avoid false calls, place it on an even surface in the upright position and preferably in the stand provided.

  • Page 6: Battery Replacement

    • If it is necessary for you to change the battery, the fall detector uses a 6 volt Duracell PX28L battery. • After a year the battery should be replaced. Contact your provider for a replacement. In many cases your provider will change the battery for you.
  • Page 7 4) Replace the sliding cover and the screw. Test the fall detector by making a manual call. Inform the operator that you are making a battery test call. 5) If the device fails to make a test call then check the orientation of the battery.
  • Page 8 Installation and User Guide Care of the fall detector • Avoid getting the fall detector wet (if it does then dry it quickly and make a manual test call to confirm it is working correctly). • If required, the fall detector may be cleaned periodically with a damp cloth and mild detergent.
  • Page 9 Installation and User Guide Radio Approval Notices Australia The Fall Detector operates on a frequency of 312MHz and is certified approved by TRL Compliance to AS/NZS 4268:2003 Canada Canadian Certification Approvals Number IC: 1231A-66004A Federal Communications Commission (FCC) notices • Consult the dealer or an experienced...
  • Page 10 Remember to change the battery once a year. www.tunstall.co.uk Our policy of continual development means that product specification and appearance may change without notice. © 2007 Tunstall Group Ltd. TUNSTALL and FALL DETECTOR are trade marks. Tunstall Group Limited, Whitley Lodge, Whitley Bridge, Yorkshire DN14 0HR...
