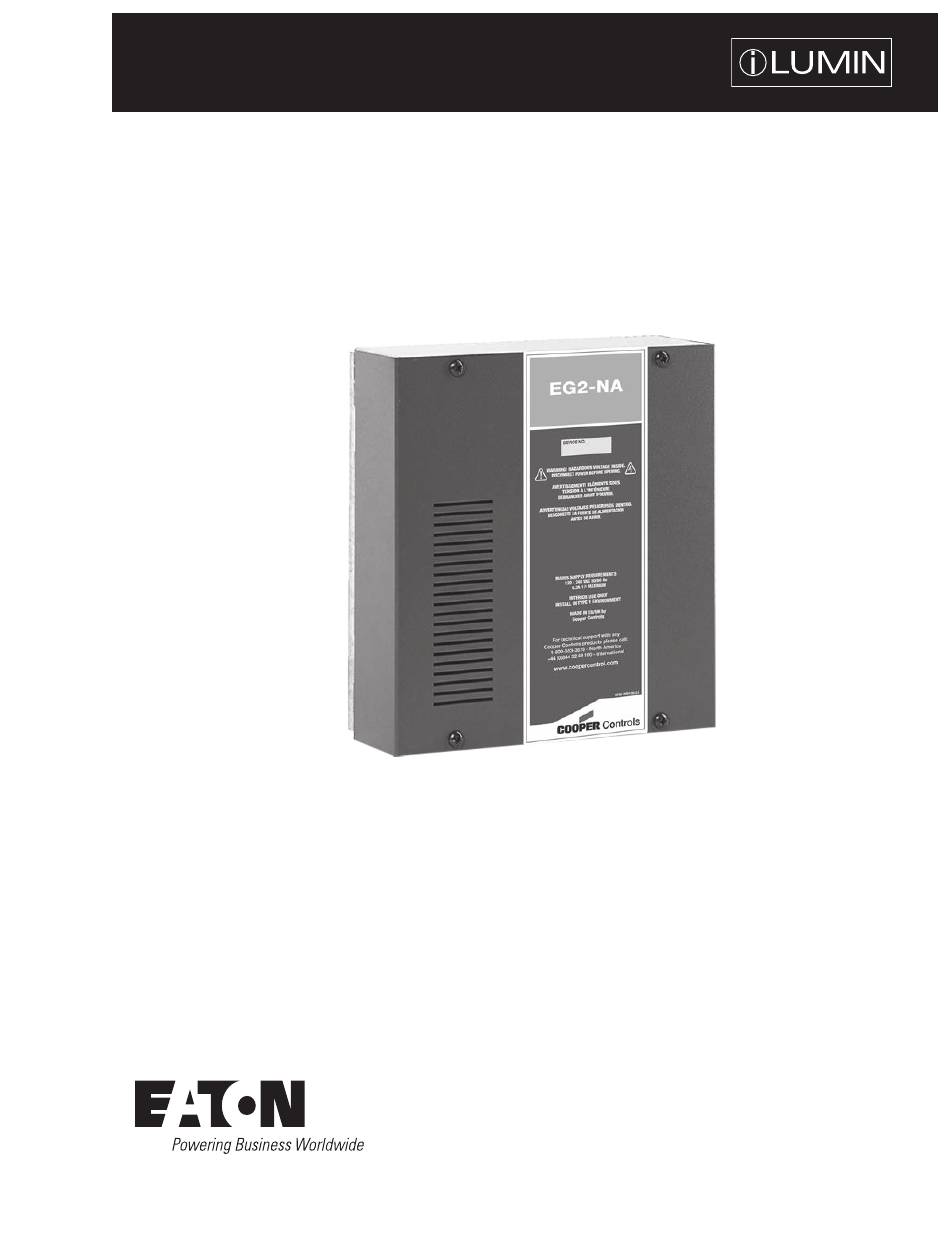

- Page 1 INS # Installation Instructions Model # EG-2-NA EG2-NA Ethernet Gateway...
-
Page 2: Table Of Contents
ANd FoLLoW ALL SAFEtY INStructIoNS The EG2-NA is built and tested to strict safety regulations . By following the steps listed below and elsewhere within this guide, you can ensure safe installation and operation of these controller units . -
Page 3: Introduction
Ethernet Local Area Network, either through an Ethernet switch or wireless router . The EG2-NA acts as a host for the iLumin series of remote applications including iOS (iPhone/iPod Touch/iPad & Android OS devices) . Coupling the EG2-NA to a Wi-Fi network enables secure scene control, visual feedback and modification from your hand held device . -
Page 4: Mounting
Control Wiring Location and spacing iCAN Network The EG2-NA should be installed in a dry ventilated location, A removable 5 position terminal block is provided for the where ambient conditions are maintained within the connection of iCAN network cables . If the EG2-NA is requirements of the unit . -
Page 5: Ican Connectors
. Wait for the Green CAN LED to flash slowly . The Green Power LED will double flash continuously while EG2-NA is on . If Ethernet is connected Ethernet Network the Link and Data LEDs will indicate successful connection . -
Page 6: Pc Node Method
Once you have configured your PC’s IP address, connect to defaults . the EG2-NA directly to the PC . It may be necessary to use a crossover cable, however, most current computers are After setting to factory defaults, the IP address of the ●... -
Page 7: Warranties And Limitation Of Liability
Cleveland, OH 44122 United States Eaton.com Eaton’s Cooper Controls Business 203 Cooper Circle Peachtree City, GA 30269 CooperControl.com © 2014 Eaton Eaton is a registered trademark. All Rights Reserved Printed in USA All trademarks are property P/N: 9850-000225-01 of their respective owners.
