- Page 1 INSTRUCTION BOOK FOR Fast-Fold ®...

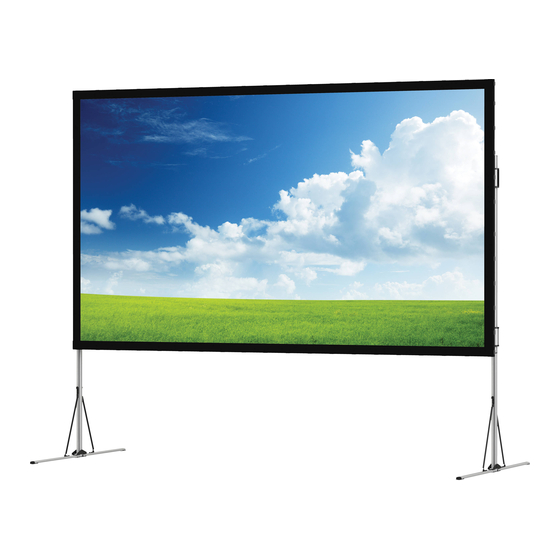

- Page 2 Da-Lite® is a registered trademark of Milestone AV Technologies. All rights reserved. Fast-Fold NXT The Fast-Fold NXT screen system will have a 1¾" wide frame or a 3½" wide frame depending on the size ordered. Screen assembly is the same regardless of the frame size.
- Page 3 Side Section Bottom Section Figure 1 1. Unfold the four sections of the Fast-Fold NXT frame, lock all 2. Assemble the frame by sliding both the top and bottom sections internal sliding hinges and lay face up on the floor.
- Page 4 Fast-Fold NXT Assembly Instructions (continued) 3. Assemble the legs by sliding the three sections together and tightening the Leg Knobs. See Figure 4. NOTE: The top extension sections may not be needed depending on the desired screen height. 4. Attach legs to side frame members at the location indicated on the frame.
- Page 5 Fast-Fold NXT Assembly Instructions (continued) 5. Match the bottom of the screen surface with bottom of frame by locating the label in the bottom right hand corner of the surface. 6. Attach clips on both sides of corner at all four corners. To maintain even surface tension, attach the corners in a diagonal pattern.
- Page 6 Fast-Fold NXT Assembly Instructions (continued) 9. Height Adjustment. Fast-Fold NXT screen height is adjustable 11. With one person at each leg, raise to standing position. in 3/8" (10 mm) increments either up or down. Normal screen NOTE: With large screens, more than two people may be height is 44"...
-
Page 7: Storage And Cleaning
Surface Folding Instructions Please follow the steps as outlined below when folding the 3. Place clean tissue paper or white 100% cotton material between screen material the folds. for packing: 4. If the folded area is more than 3 feet wide (which is the case in the above example), then continue to fold until the folded area is Make sure the surface does not come in contact with a painted, equal to or smaller than 3 feet wide. - Page 8 Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
