OPERATION

Display Reading. There are two lines to the display, the
bottom line for flow rate and the top line for accumulated
total. Measurement units are pre-ordered and factory-set and
can be changed in the field only by an authorized individual.
Low
Batt
Low Battery Indicator
External Power Indicator
Battery Power
Optional Input/Output Cable -
WARNING: Using an unregulated power
supply >18 Vdc may damage the meter
due to AC line input voltage fluctuation.
Orange and Blue: Serial Output (Technician Use Only)
Green (+) and White (-): Pulse Output, 30 Vdc max, 10 mA max
Red (+) and Black (-): External Power, 8-32 Vdc at 30 mA max (See WARNING)
Drain: Connect to earth ground
Not Currently Assigned
for Use.
Pulse Output
External Power
253.872.0284
No Power
Empty Pipe
Meter Installed Backwards
Factory or Field Installed
Blue
Orange
White (-)
Green (+)
Black (-)
Red (+)
Drain Wire

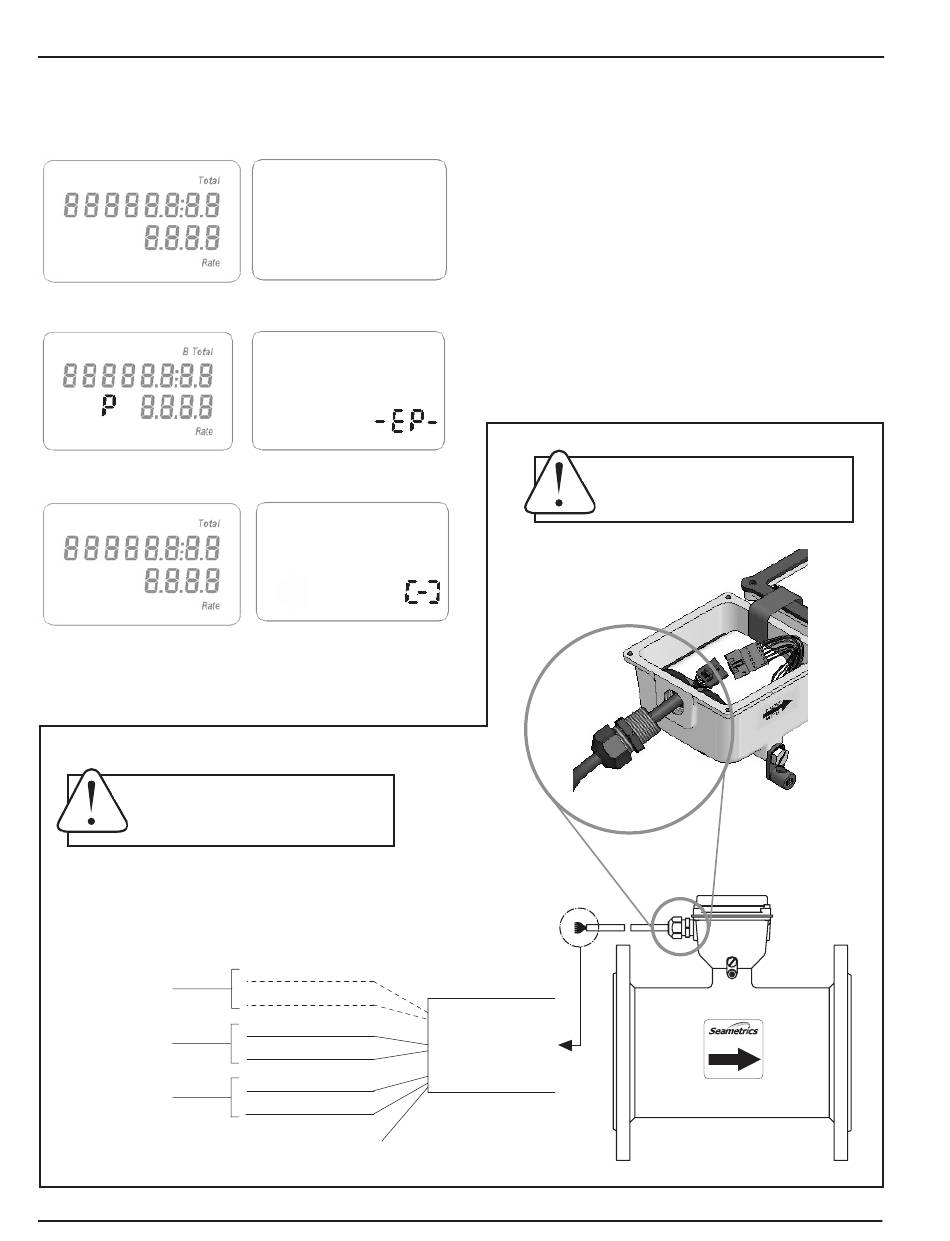

Optional Input and Outputs. An optional cable, factory-
installed or field-installed by an authorized individual,
provides power input, pulse output* for remote reading (4-20
mA conversion, telemetry and data logging functions). See
diagram below. Detailed wiring diagrams provided with cable.
*See High Frequency Output Technical Bulletin for available
.
pulse rates
For data logger setup and operation, refer to FlowInspector Manual
IMPORTANT: Ensure that plastic cable
gland is sealed with tape or sealant
and that cap is tight.
AG2000 Cable
Shielded
Direct Burial Cable
22 AWG Stranded
Page 6
