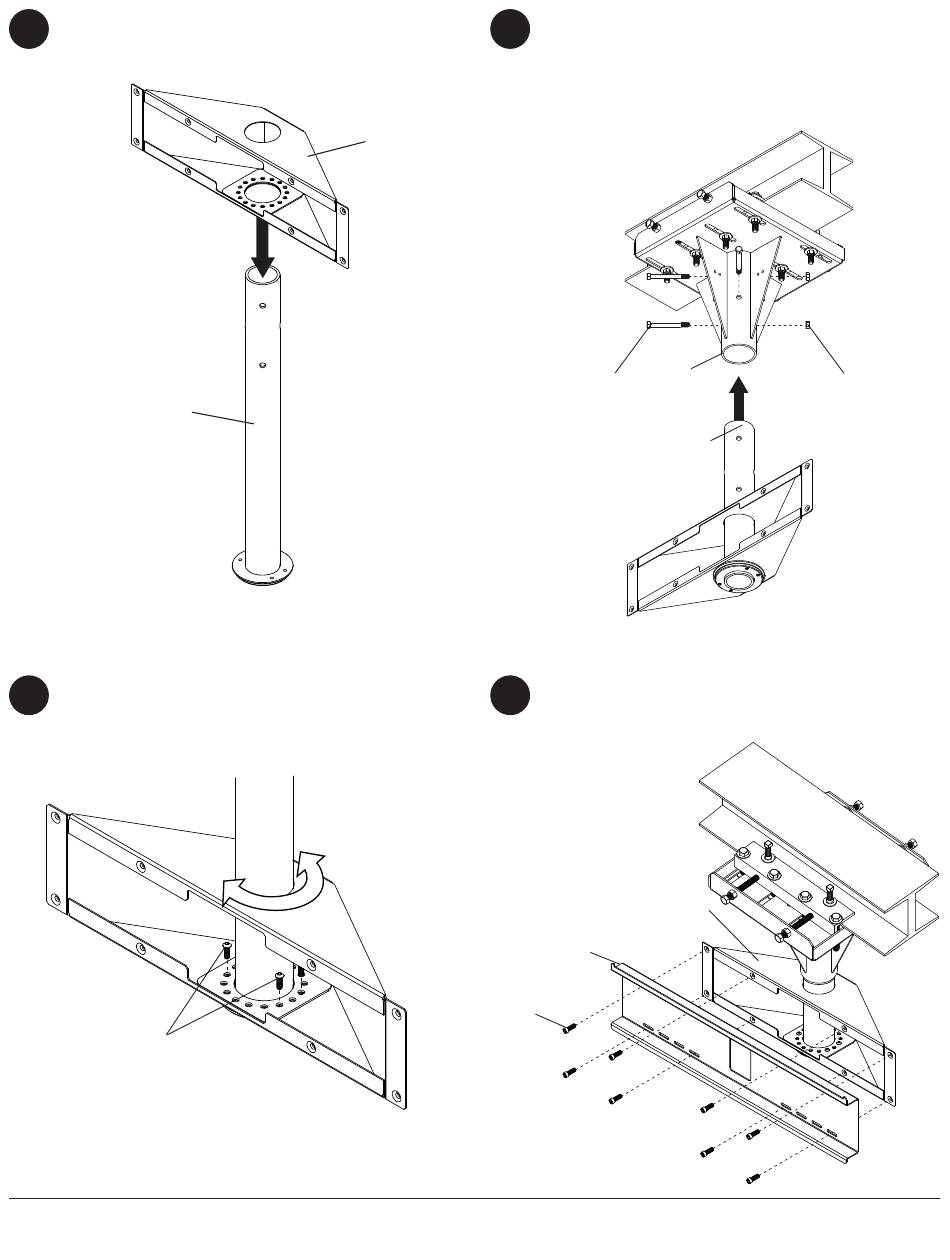

Place adapter box (D) onto support column (B) as
6
shown.
B
Adjust swivel to desired position as shown. Secure
8
adapter box to support column with four 1" socket
screws (E) using a 3/16" allen wrench as shown.
E
7
D
9
I
6 of 36
Insert support column (B) into ceiling assembly
(A). Align holes of support column with holes of
ceiling assembly and secure using three 7/16" x 4"
bolts (F) and three 7/16" nuts (G) as shown.
A
F
B
Attach adapter plate (H) to adapter box (D) with
eight 3/4" screws (I) using a 3/16" allen wrench as
shown.
D
H
