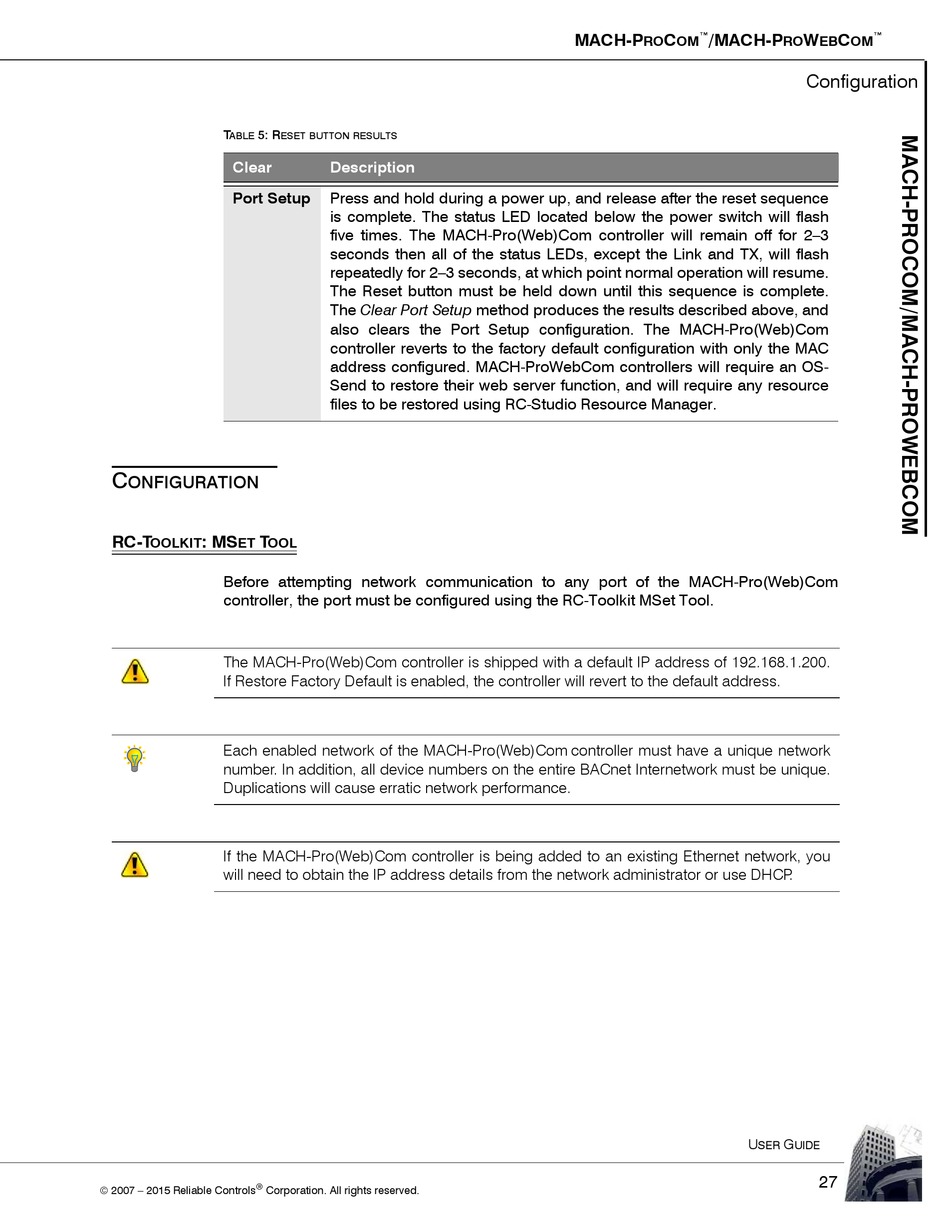

T 5: R
ABLE
Clear
Port Setup
C
ONFIGURATION
RC-T : MS T
OOLKIT ET OOL
Before attempting network communication to any port of the MACH-Pro(Web)Com
controller, the port must be configured using the RC-Toolkit MSet Tool.
The MACH-Pro(Web)Com controller is shipped with a default IP address of 192.168.1.200.
If Restore Factory Default is enabled, the controller will revert to the default address.
Each enabled network of the MACH-Pro(Web)Com controller must have a unique network
number. In addition, all device numbers on the entire BACnet Internetwork must be unique.
Duplications will cause erratic network performance.
If the MACH-Pro(Web)Com controller is being added to an existing Ethernet network, you
will need to obtain the IP address details from the network administrator or use DHCP .
®
 2007 − 2015 Reliable Controls
Corporation. All rights reserved.
ESET BUTTON RESULTS
Description
Press and hold during a power up, and release after the reset sequence
is complete. The status LED located below the power switch will flash
five times. The MACH-Pro(Web)Com controller will remain off for 2–3
seconds then all of the status LEDs, except the Link and TX, will flash
repeatedly for 2–3 seconds, at which point normal operation will resume.
The Reset button must be held down until this sequence is complete.
The Clear Port Setup method produces the results described above, and
also clears the Port Setup configuration. The MACH-Pro(Web)Com
controller reverts to the factory default configuration with only the MAC
address configured. MACH-ProWebCom controllers will require an OS-
Send to restore their web server function, and will require any resource
files to be restored using RC-Studio Resource Manager.
MACH-P C ™ /MACH-P
RO OM
U
W C ™
RO EB OM

Configuration

G
SER UIDE
27
