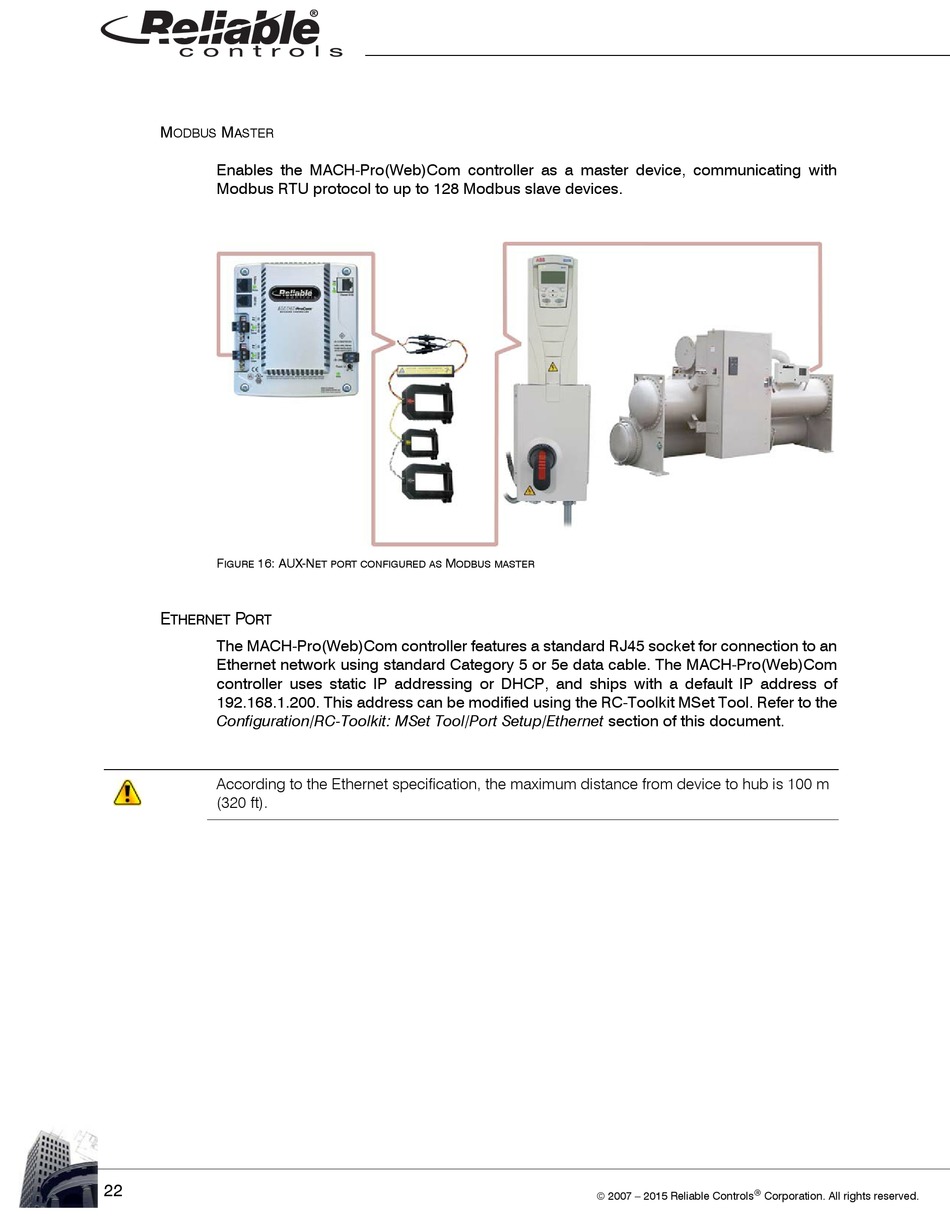

M M
ODBUS ASTER
Enables the MACH-Pro(Web)Com controller as a master device, communicating with
Modbus RTU protocol to up to 128 Modbus slave devices.
F 16: AUX-N
IGURE
E P
THERNET ORT
The MACH-Pro(Web)Com controller features a standard RJ45 socket for connection to an
Ethernet network using standard Category 5 or 5e data cable. The MACH-Pro(Web)Com
controller uses static IP addressing or DHCP, and ships with a default IP address of
192.168.1.200. This address can be modified using the RC-Toolkit MSet Tool. Refer to the
Configuration/RC-Toolkit: MSet Tool/Port Setup/Ethernet section of this document.
According to the Ethernet specification, the maximum distance from device to hub is 100 m
(320 ft).
22
M
ET PORT CONFIGURED AS ODBUS MASTER
®
