PC/M P
ODEM ORT

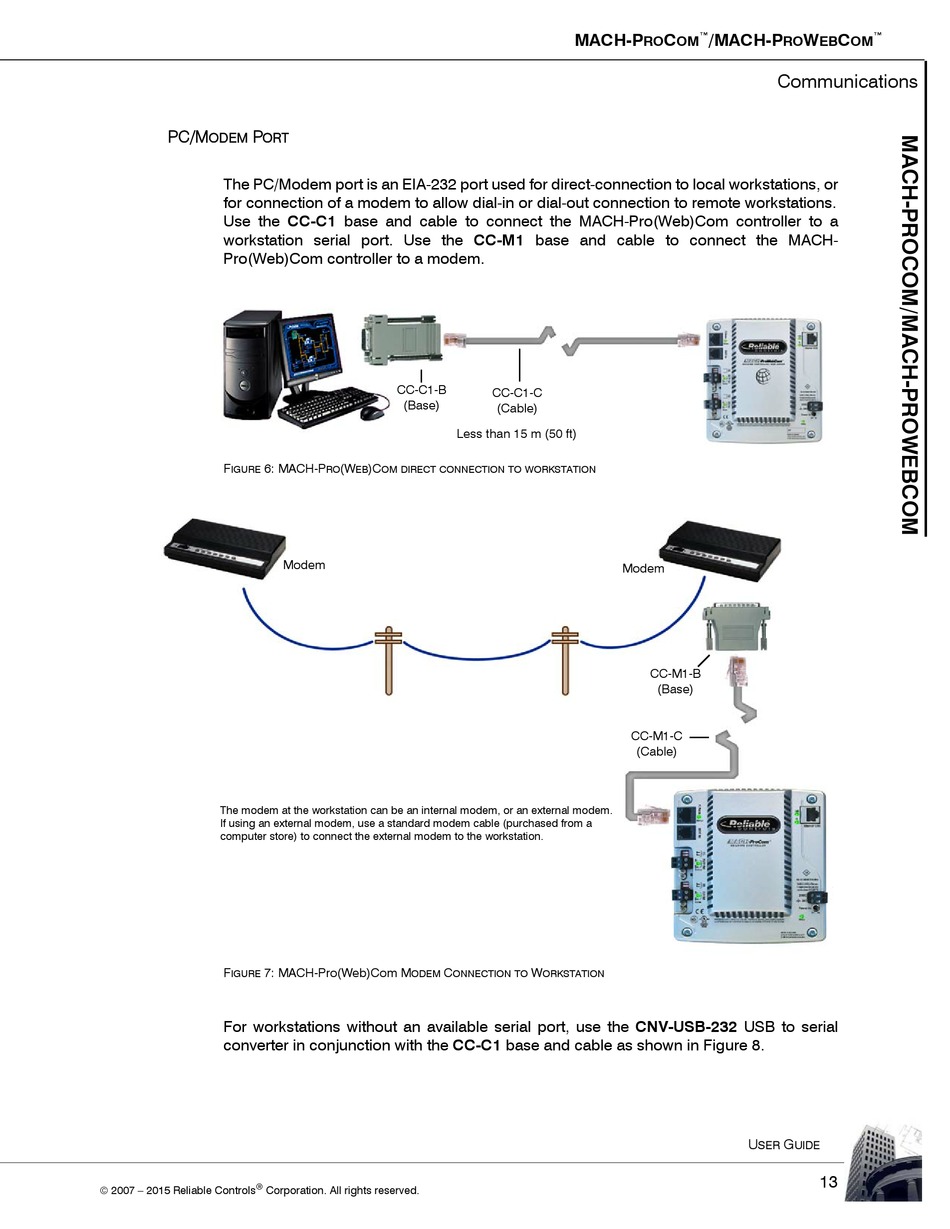

The PC/Modem port is an EIA-232 port used for direct-connection to local workstations, or
for connection of a modem to allow dial-in or dial-out connection to remote workstations.
Use the CC-C1 base and cable to connect the MACH-Pro(Web)Com controller to a
workstation serial port. Use the CC-M1 base and cable to connect the MACH-
Pro(Web)Com controller to a modem.
F 6: MACH-P
IGURE
The modem at the workstation can be an internal modem, or an external modem.
If using an external modem, use a standard modem cable (purchased from a
computer store) to connect the external modem to the workstation.
F 7: MACH-Pro(Web)Com M
IGURE
For workstations without an available serial port, use the CNV-USB-232 USB to serial
converter in conjunction with the CC-C1 base and cable as shown in Figure 8.
®
 2007 − 2015 Reliable Controls
Corporation. All rights reserved.
CC-C1-B
(Base)
Less than 15 m (50 ft)
(W )C
RO EB OM DIRECT CONNECTION TO WORKSTATION
Modem
C
ODEM ONNECTION TO
MACH-P C
RO
CC-C1-C
(Cable)
Modem
CC-M1-B
(Base)
CC-M1-C
(Cable)
W
ORKSTATION
™ /MACH-P W C
OM RO EB OM
Communications
U G
SER UIDE
13
™
