T
W
P
O
IRE
1
Ensure that the power switch is off.
2
Connect the hot wire to the 24 VAC terminal of the power connector.
3
Connect the return/neutral wire to the GND terminal of the power connector.
4
The return/neutral wire of the 24 VAC must be connected to Earth ground.
MACH-ProZone
Ground MUST be connected to 24 VAC Return/Neutral ground.

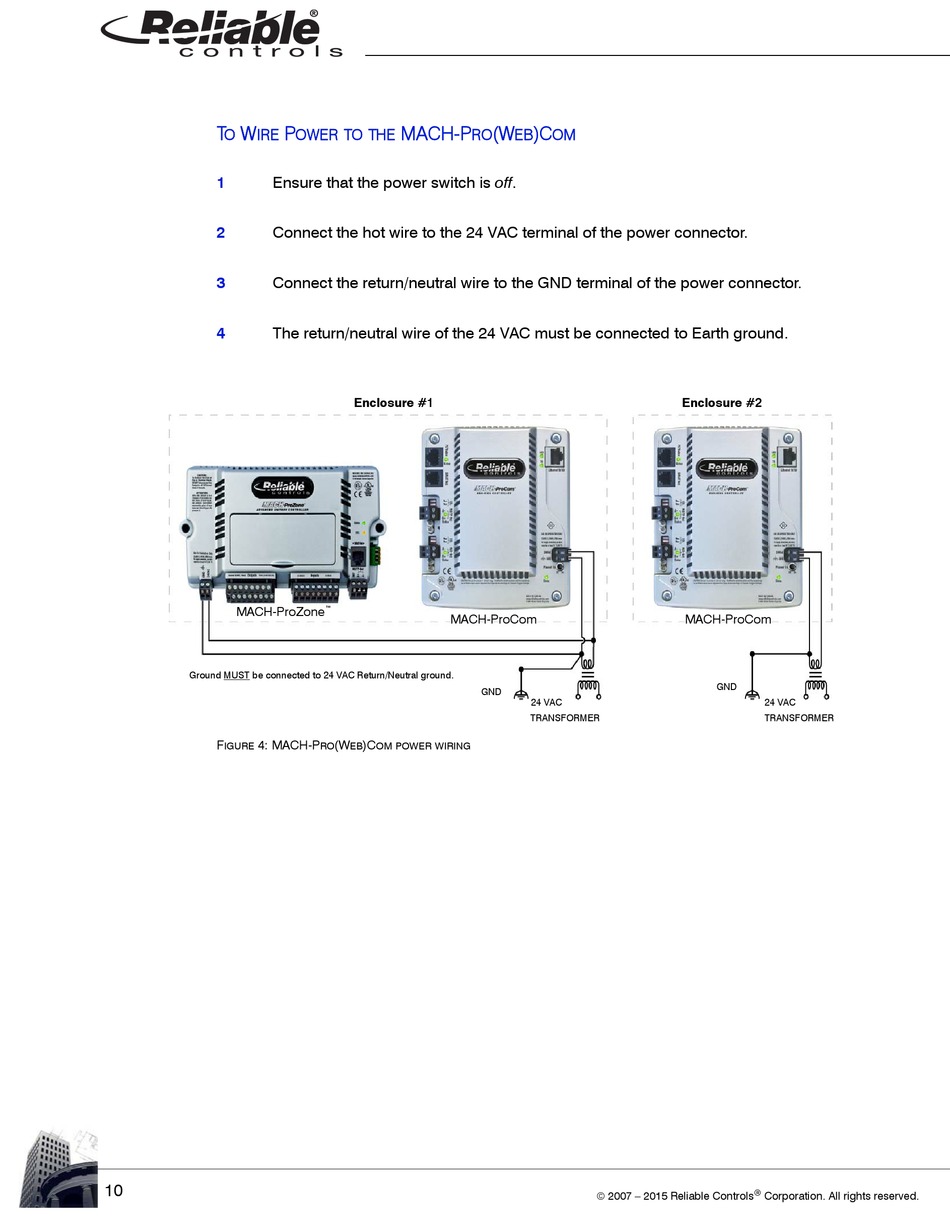

F
4: MACH-P
IGURE
10
MACH-P
OWER TO THE
RO
Enclosure #1
™
MACH-ProCom
(W
)C
RO
EB
OM POWER WIRING
(W
)C
EB
OM
GND
24 VAC
TRANSFORMER
2007 − 2015 Reliable Controls
Enclosure #2
MACH-ProCom
GND
24 VAC
TRANSFORMER
®
Corporation. All rights reserved.
