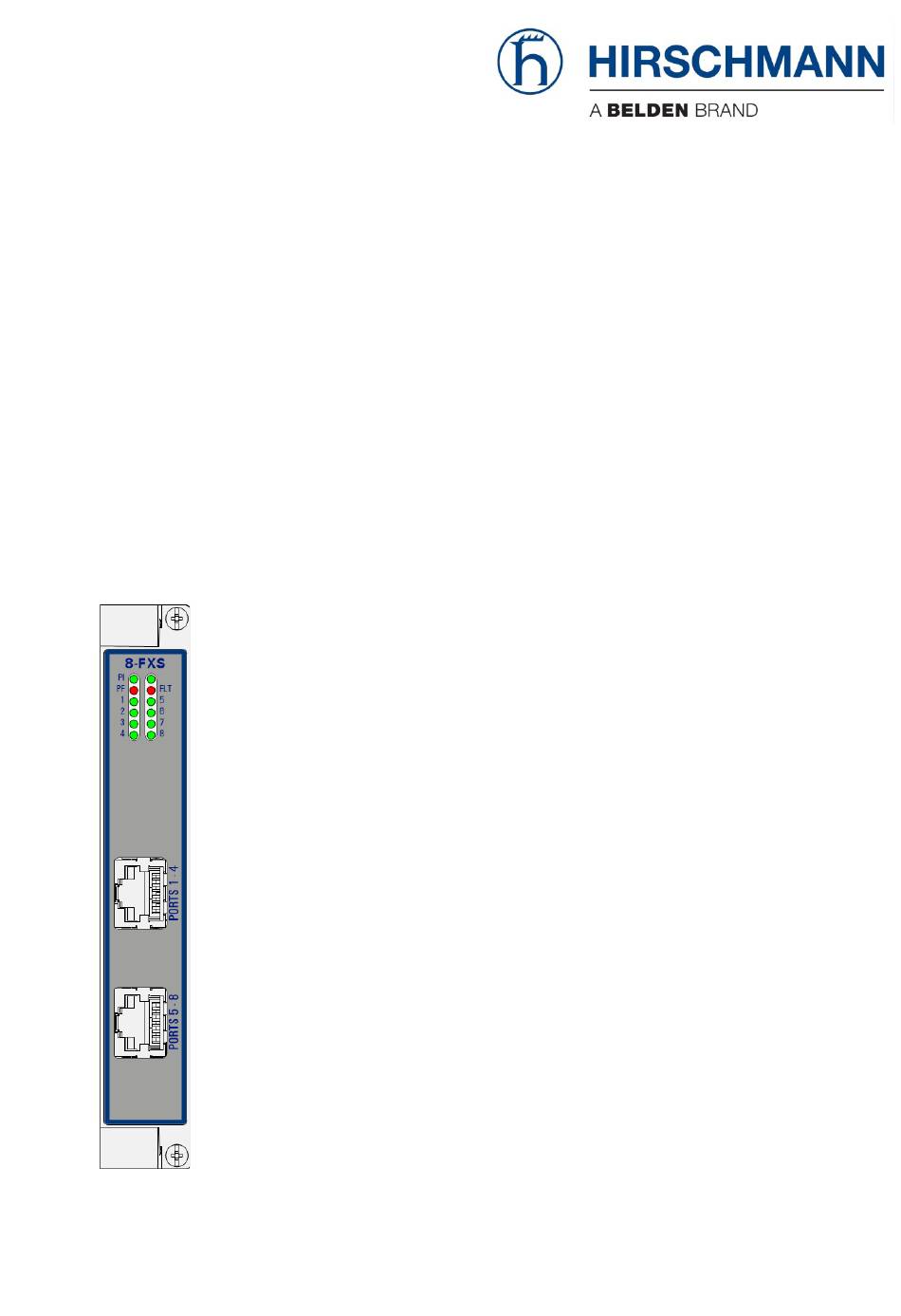

  • Page 1 User Manual Installation Dragon PTN Interface Module PTN-8-FXS Interface Module PTN-8-FXS Technical Support Release 01 02/2018 https://hirschmann-support.belden.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site www.doc.hirschmann.com Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents INTRODUCTION ......................5 General ..................5 Manual References ..............6 MODULE DESCRIPTION ...................... 7 Front Panel .................. 7 2.1.1 Handle .................... 7 2.1.2 LEDs ....................8 2.1.3 RJ-45 Connector Connections and Cables ........9 Functional Operation ..............11 2.2.1 General ..................
  • Page 4 List of Tables Table 1 Manual References ......................7 Table 2 LED Indications In Boot Operation ..................8 Table 3 LED Indications In Normal Operation .................. 8 Table 4 Connection Products ......................9 Table 5 8-FXS RJ-45 Cable-Coupler: Pin Assignments ..............10 Table 6 Other Specifications ......................

  • Page 5: Introduction

    1. INTRODUCTION 1.1 General This document is valid as of Dragon PTN Release 3.0DR. In general, FXS (=Foreign eXchange Subscriber) and FXO (=Foreign eXchange Office) gateways translate analog voice/modem/fax signals to IP packets and vice versa. FXO: towards analog PBX (=Private Branch eXchange) or PSTN; FXS: towards analog telephones, modems or faxes.

  • Page 6: Manual References

    Analog Voice Ethernet IP MPLS-TP Dragon PTN Network Dragon PTN Node Voice Ethernet VoIP Module Module Gateway 8-FXS e.g. 4-GC-LW (=FXO GW) Analog Voice Links Public (PSTN, ISDN, ...) Packetized Voice Private (PBX) Figure 1 Analog Voice Example: Remote Extension Analog Voice Ethernet IP Packetized Voice...

  • Page 7: Module Description

    Table 1 Manual References Ref. Number Title DRA-DRM821-&-* Dragon PTN and HiProvision Operation DRA-DRM801-&-* Dragon PTN Installation and Operation DRB-DRM802-&-* Dragon PTN Nodes: PTN2210, PTN2209, PTN2206, PTN1104 DRB-DRM803-&-* Dragon PTN Switching Module: PTN-CSM310-A DRE-DRM807-&-* Dragon PTN Interface Module: PTN-4-GC-LW / PTN-4-GCB-LW DRE-DRM808-&-* Dragon PTN Interface Module: PTN-1-10G-LW DRE-DRM817-&-*...

  • Page 8: Leds

    b. Remove the Module from the Node Untighten the two fastening screws in the front panel corners. Take the front panel handles to pull out and finally remove the module from the Dragon PTN node. 2.1.2 LEDs The meaning of the LEDs depends on the mode of operation (= boot or normal) in which the 8-FXS module currently is running.

  • Page 9: Connector Connections And Cables

    2.1.3 RJ-45 Connector Connections and Cables The 8-FXS module provides 8 analog voice ports via 2 RJ-45 connectors, each connector providing 4 ports. Each port provides one tip/ring pair. Connections to this IFM can be made via a connection kit that can be plugged as well in a patch panel: 8-FXS Connection Kit (future support) includes: An RJ-45 drop cable (1.5m) wired out on 4*RJ-11 couplers to connect ports [1..4];...

  • Page 10: Figure 5 8-Fxs Connection: Plugged

    Figure 5 8-FXS Connection: Plugged Figure 6 8-FXS RJ-45 Connector Table 5 8-FXS RJ-45 Cable-Coupler: Pin Assignments 8-FXS RJ45 Connector Cable Coupler Port Descript Wire Coupler Color Colors TIP1 white/orange Green RING1 orange White Blue TIP2 white/green Green RING2 green White Blue TIP3 blue...

  • Page 11: Functional Operation

    2.2 Functional Operation 2.2.1 General An application network can be connected to the MPLS-TP Dragon PTN network via one of the 8 FXS interface ports. The 8-FXS module can interface with 8 analog telephone lines. In Figure 1 and Figure 2, a common functional setup is shown. In Figure 7 below, a more detailed functional setup is shown.

  • Page 12: Voice Service: Sip-Server

    Analog phones are connected to an FXS interface (8-FXS module); FXO Gateways are connected to an Ethernet interface (e.g. 4-GC-LW module); Voice switching and telephony feature handling between all phones are performed in the PSTN or PBX; DTMF (=Dual Tone Multi-Frequency) must be used for number dialing; Analog speech and signaling are converted and packetized by the FXS interface and the FXO-GW towards the Dragon PTN network To set up an entire Voice service in HiProvision (See Ref.[1] in Table 1):...

  • Page 13: Figure 8 Basic Sip Registration Process

    attempt from the 8-FXS IFM automatically occurs (every 120 seconds) when the port on which A or B is or will be connected, is configured in HiProvision. As a result of a successful registration process, A and B and their location will be known by the SIP server. Remote Extension mode: The external FXO Gateway device acts as SIP server;...

  • Page 14: Onboard Interfaces

    Caller Callee Public (PSTN, ISDN) Private (PBX) Invite 100 Trying Invite 100 Trying 180 Ringing 180 Ringing 200 OK 200 OK Acknowledge Acknowledge Call, RTP 200 OK 200 OK Figure 9 Basic SIP Call Example Setup Between End-Points CAUTION: The call setup in the figure above may slightly differ depending on the selected mode! 2.3 Onboard Interfaces Figure 10 8-FXS: Side View...

  • Page 15: Straps

    2.3.1 Straps No user relevant straps. 2.3.2 DIP Switches No user DIP switches. 2.3.3 Hardware Edition The hardware edition of the IFM has been factory set and can not be changed. It can be read out via HiProvision in the Software tile, see Ref. [1] in Table 1. 3.

  • Page 16: Abbreviations

    5. ABBREVIATIONS Central Switching Module DTMF Dual Tone Multi-Frequency Electromagnetic Interference Ethernet Fault Foreign eXchange Office Foreign eXchange Subscriber Gateway IEEE Institute of Electrical and Electronics Engineers InterFace Module Internet Protocol ISDN Integrated Services Digital Network kbps Kilobit per Second Local Area Network Loss Of Signal Mbps...
