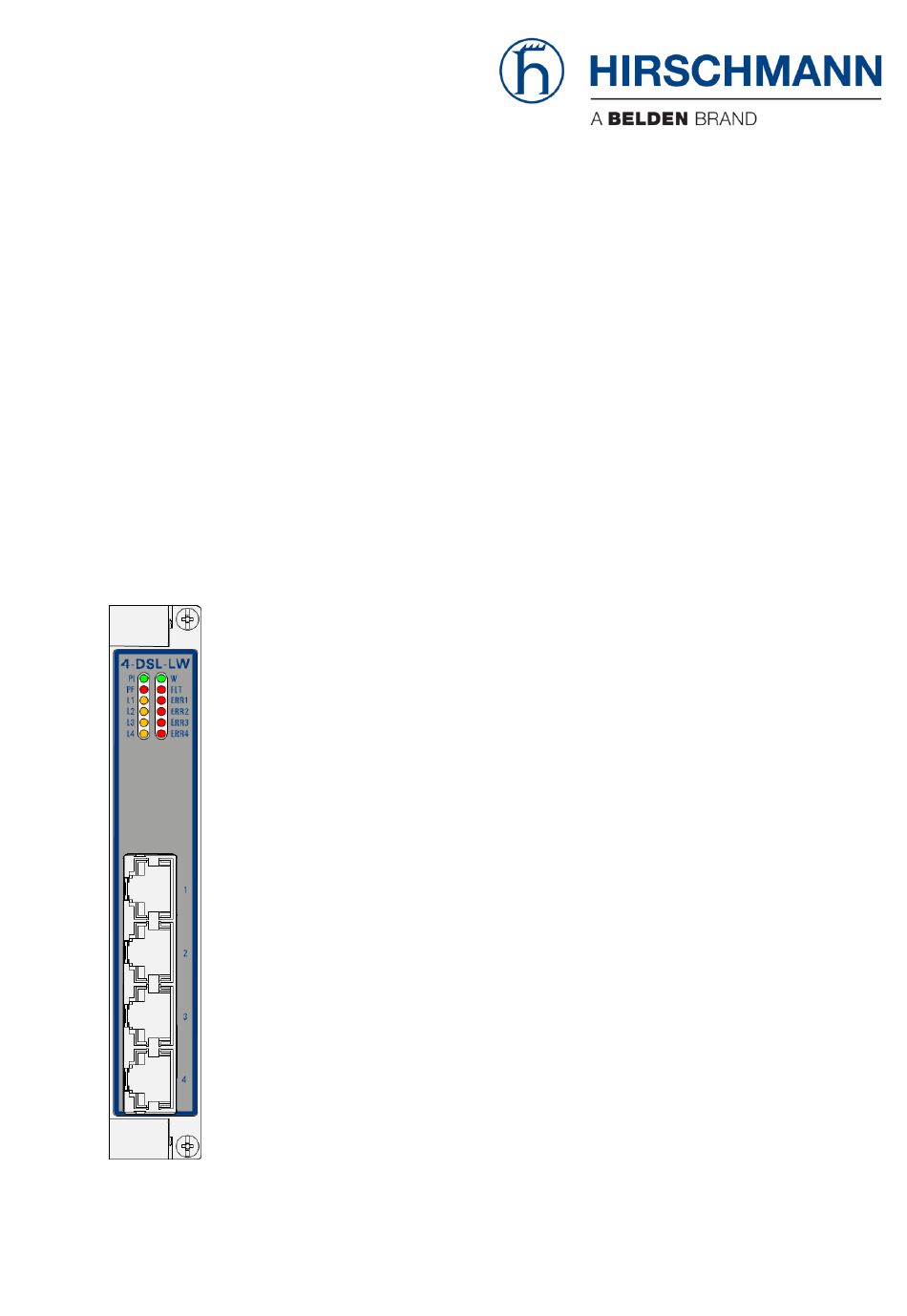

- Page 1 User Manual Installation Dragon PTN Interface Module PTN-4-DSL-LW Installation PTN-4-DSL-LW Technical support Release 01 02/2018 https://hirschmann-support.belden.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Figure 3 SHDSL RJ-45 Connector ....................8 Figure 4 Detailed Functional Setup ....................9 Figure 5 Basic PAM Encoding ...................... 12 Figure 6 4-DSL-LW: Side View ...................... 14 Figure 7 Hardware Edition ......................15 Figure 8 Device Mode Configuration ................... 15 Installation PTN-4-DSL-LW Release 01 02/2018... - Page 4 Table 6 SHDSL Bandwidth and Link Distance ................12 Table 7 Synchronization / Clock Distribution / Network Timing Overview ......... 13 Table 8 Device Mode (CO/CPE) Configuration ................15 Table 9 Other Specifications ......................16 Installation PTN-4-DSL-LW Release 01 02/2018...
-
Page 5: Introduction
E-Tree in an Ethernet Service; This module interconnects a LAN network via an SHDSL to the MPLS-TP Dragon PTN network. A general SHDSL example can be found in the figure below. For CO/CPE, see §2.2.1. Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 6: Manual References
Table 1 Manual References Ref. Number Title DRA-DRM821-&-* Dragon PTN and HiProvision Operation DRA-DRM801-&-* Dragon PTN Installation and Operation DRB-DRM802-&-* Dragon PTN Nodes: PTN2210, PTN2209, PTN2206, PTN1104 DRB-DRM803-&-* Dragon PTN Switching Module: PTN-CSM310-A DRA-DRM810-&-* Dragon PTN General Specifications Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 7: Module Description
Table 2. After the module has gone through all the cycles in the table below (=rebooted successfully), the module turns into the normal operation, see LEDs in Table 3. Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 8: Shdsl Rj-45 Ports And Cables
The 4-DSL-LW module provides four of these ports and each port connector has 8 pins. The two middle pins, pin 4 and 5, are used. See Table 4 below for an overview and description. Use CAT5E shielded cables to connect these ports. Figure 3 SHDSL RJ-45 Connector Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 9: Functional Operation
Dragon PTN Node IFM1 IFM2 IFM1 IFM2 4-DSL-LW 4-GC-LW CSM310-A 4-DSL-LW 4-GC-LW CSM310-A Switch Switch ETH ETH MPLS-TP MPLS-TP EFM-C SHDSL SHDSL LAN Port SHDSL Modem + Switch LAN1 LAN2 Figure 4 Detailed Functional Setup Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 10: Shdsl Link Bring Up
SHDSL ports can be combined or bonded in HiProvision as indicated in Table 5. NOTE: When using the SHDSL link as LAN, make sure to configure the local and the remote LAN SHDSL links with the same bonding or PAF mode; Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 11: Ethernet Service
(=leafs) using the same Ethernet service while accessing one or more ISPs (=roots). When an E-Tree is used, each service endpoint is designated as either leaf or root. A leaf can only communicate with a root. A root can communicate with all the roots and leafs. Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 12: Shdsl Bandwidth And Distances
(synchronization, CRC checks, conversions, switching…). The CSM converts this data into MPLS-TP packets and transmits it via a WAN port (on an IFM that supports WAN) onto the WAN. On the destination side, the same processing occurs in reverse order. Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 13: Synchronization / Clock Distribution / Network Timing
DSL. The CPE side has a resistor in its circuit to allow the Wetting Current to flow. The Wetting Current can be configured per front port in HiProvision. Once it has been enabled for a port, it will flow continuously. Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 14: Loopback Selftests
S2 to S3 (=most significant). It can be read out as well via HiProvision. This edition has been factory set and MUST NOT BE CHANGED! Example: Setting S3=’0’ and S2=’5’ indicates Hardware Edition ‘5’ (dec). Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 15: Figure 7 Hardware Edition
UNCONFIGURED and the LAN SHDSL link will not come up! The module will not be operational and just wait for a configuration in HiProvision. This behavior is required for LAN SHDSL links because the HiProvision operator only wants the link to come up in a controlled way. Installation PTN-4-DSL-LW Release 01 02/2018... -
Page 16: Module Specifications
126 mm / 4.96 inches depth: 195 mm / 7.68 inches Power Consumption 27W (measured at 25°C/77°F, with data transport) 3.3 Ordering Information PTN-4-DSL-LW: 942 236-007 4. ABBREVIATIONS Conformité Européenne Central Office Customer Premises Equipment Central Switching Module Digital Subscriber Line... - Page 17 PME Aggregation Function Power Failure Power Input Physical Medium Entities Packet Transport Network SHDSL Single-Pair High Speed DSL Signal-to-Noise Ratio SyncE Synchronous Ethernet TC-PAM Trellis-coded Pulse Amplitude Modulation Wide Area Network Installation PTN-4-DSL-LW Release 01 02/2018...
