Hirschmann Dragon PTN Series User Manual

Interface module
Hide thumbs Also See for Dragon PTN Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manual
Installation
Dragon PTN
Interface Module PTN-4-GC-LW/PTN-4-GCB-LW
Interface Module PTN-4-GC-LW/PTN-4-GCB-LW
Release 02 11/2018
Technical Support
https://hirschmann-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dragon PTN Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hirschmann Dragon PTN Series

Summary of Contents for Hirschmann Dragon PTN Series

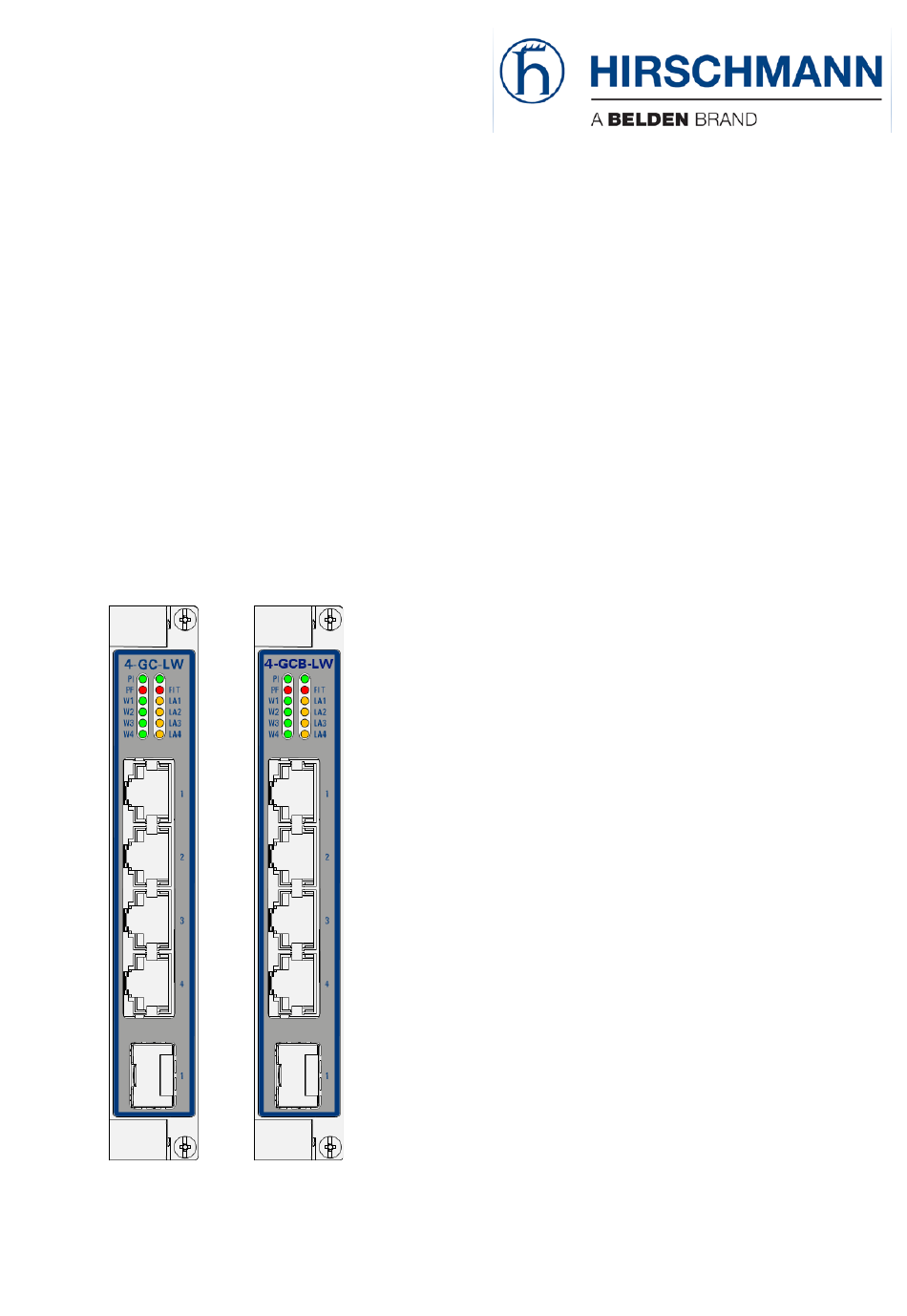

  • Page 1 User Manual Installation Dragon PTN Interface Module PTN-4-GC-LW/PTN-4-GCB-LW Interface Module PTN-4-GC-LW/PTN-4-GCB-LW Technical Support Release 02 11/2018 https://hirschmann-support.belden.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.doc.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents INTRODUCTION ......................5 General ....................5 Manual References ................5 MODULE DESCRIPTION ....................6 Front Panel ................... 6 2.1.1 Insert/Remove Module into/from Node ........... 7 2.1.2 LEDs ......................7 2.1.3 Connectors ....................8 Functional Operation ................9 2.2.1 Media Module for Ethernet: Interfacing to a LAN or WAN Network ..9 2.2.2 Ethernet Service ..................
  • Page 4 List of Tables Table 1 Manual References ......................6 Table 2 LED Indications In Boot Operation ................... 7 Table 3 LED Indications in Normal Operation ................7 Table 4 RJ45 Ethernet port: Pin Assignments ................8 Table 5 Synchronization / Clock Distribution / Network Timing Overview ......... 11 Table 6 Other Specifications ......................

  • Page 5: Introduction

    1. INTRODUCTION 1.1 General This document is valid as of Dragon PTN Release 4.0DR. This document describes the 4-GC-LW and 4-GCB-LW interface module (=IFM). The 4-GC-LW supports PoE whereas the 4-GCB-LW not. These IFMs provide four 1Gbps LAN/WAN ports on the front panel (LAN = Local Area Network;...

  • Page 6: Module Description

    Table 1 Manual References Ref. Number Title DRA-DRM821-&-* Dragon PTN and HiProvision Operation DRA-DRM801-&-* Dragon PTN Installation and Operation DRA-DRM802-&-* Dragon PTN Aggregation Nodes: PTN2210, PTN2209, PTN2206, PTN1104 DRA-DRM803-&-* Dragon PTN Switching Module: PTN-CSM310-A DRA-DRM808-&-* Dragon PTN Interface Module: PTN-1-10G-LW DRA-DRM817-&-* Dragon PTN Interface Module: PTN-4-GO-LW DRA-DRM819-&-* Dragon PTN Interface Module: PTN-8-FXS DRA-DRM811-&-* Dragon PTN TRMs (Transmit Receive Modules: SFP, XFP)

  • Page 7: Insert/Remove Module Into/From Node

    2.1.1 Insert/Remove Module into/from Node See ‘Dragon PTN Installation and Operation Manual’ Ref.[2]. 2.1.2 LEDs The meaning of the LEDs depends on the mode of operation (= boot or normal) in which the 4-GC-LW/4-GCB-LW module currently is running. After plugging in the module or rebooting it, the module turns into the boot operation, see Table 2.

  • Page 8: Connectors

    2.1.3 Connectors This module has following ports: Port1 = Combo Ethernet port: A ‘Combo’ port is a double Ethernet port with an electrical (RJ45) and optical (SFP) port. Only one of the two ports can be active at the same time, either the RJ45 or the SFP port.

  • Page 9: Functional Operation

    2.2 Functional Operation The 4-GC-LW/4-GCB-LW performs following major tasks: 2.2.1 Media Module for Ethernet: Interfacing to a LAN or WAN Network WAN ports interconnect nodes within the Dragon PTN network (MPLS-TP) whereas LAN ports interconnect the nodes with their applications. Each Ethernet front port can be configured individually as LAN or a WAN port in HiProvision.

  • Page 10: Ethernet Service

    WAN: MPLS-TP (on fiber, copper) between Dragon PTN nodes LAN: Ethernet (on copper) external devices WAN (via SFP on fiber) Dragon PTN Node Dragon PTN Node IFC1 IFC2 IFC2 4-GC-LW 4-GC-LW CSM310-A 4-GC-LW CSM310-A Switch Switch ETH ETH MPLS-TP MPLS-TP LAN1 LAN3 LAN2...

  • Page 11: Voice Service

    2.2.3 Voice Service The 4-GC-LW/4-GCB-LW IFM ports can be configured in the Ethernet part of the Voice service. See Ref. [1] and Ref.[7] in Table 1 for more information on the Voice service. 2.2.4 I/O with the Central Switching Module (=CSM) The 4-GC-LW/4-GCB-LW module receives traffic (Ethernet or MPLS-TP) via its front panel ports and forwards this to the CSM via the backplane.

  • Page 12: Poe (=Power Over Ethernet) On 4-Gc-Lw

    2.2.8 PoE (=Power Over Ethernet) on 4-GC-LW NOTE: An NSM-A and 4-GC-LW are required to deliver PoE. NSM-B and 4-GCB-LW do not support PoE. PoE is a technology that allows a Powered Device (=PD, e.g. IP telephones, IP cameras etc.) to receive power from ‘Power Sourcing Equipment’...

  • Page 13: Smart Sfp

    PoE Power & Data 4-GC-LW Data Power External PoE PSUs: AC/DC: 942 235-001 PoE ON DC/DC: 942 235-002 56 VDC PoE OFF 56 VDC PoE Connector Cable 942 256-105 External PSUs Figure 5 PoE Example 2.2.9 Smart SFP Smart SFP is a hot-pluggable optical transceiver that converts incoming STM/OC frames from a fiber-optic SDH/SONET network into Ethernet frames at the 4-GC-LW/4-GCB-LW front port 1 or vice versa for outgoing frames.

  • Page 14: Storm Control On Ethernet Lan Port

    4-GC-LW: 4-GC-LW: Smart SFP on Smart SFP on Port1 (LAN) Port1 (LAN) Dragon PTN MPLS-TP Network STM/OC STM/OC Frames Frames SDH/SONET SDH/SONET Network Network Figure 6 SDH/SONET over Dragon PTN via Smart SFPs 2.2.10 Storm Control on Ethernet LAN Port NOTE: Storm Control is not relevant/supported on WAN Ports;...

  • Page 15: Bpdu Guard On Ethernet Lan Port

    2.2.11 BPDU Guard on Ethernet LAN Port NOTE: BPDU Guard is not relevant/supported on WAN Ports; BPDU Guard (=Bridge Protocol Data Unit) is a LAN port property or feature that: shuts down the LAN port when a BPDU packet enters this port; sends out dummy BPDU packets.

  • Page 16: Onboard Interfaces

    2.3 Onboard Interfaces Hardware Edition Figure 8 4-GC-LW/4-GCB-LW: Side View 2.3.1 Straps No user relevant straps. The straps J3, J9 and J17 in Figure 8 are straps for service engineers only! These straps MUST NOT BE CHANGED, leave them with the default settings as indicated in Figure 8.

  • Page 17: Module Specifications

    3. MODULE SPECIFICATIONS 3.1 General Specifications For general specifications like temperature, humidity, EMI ... see Ref.[9] in Table 1. 3.2 Other Specificiations Table 6 Other Specifications Description Value Weight 4-GC-LW: 0.25 kg / 0.6 lb 4-GCB-LW: 0.18 kg / 0.4 lb MTBF 4-GC-LW: 80 years at 25°C/77°F 4-GCB-LW: pending...

  • Page 18: Abbreviations

    4. ABBREVIATIONS BPDU Bridge Protocol Data Unit Conformité Européenne Central Switching Module EFM-F Ethernet in the First Mile Over Point-to-Point Fiber Electromagnetic Interference Fault International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IETF Internet Engineering Task Force InterFace Module Internet Service Provider Local Area Network Label Edge Router...
  • Page 19 Wide Area Network Interface Module PTN-4-GC-LW/PTN-4-GCB-LW Release 02 11/2018...

This manual is also suitable for:

Dragon ptn-4-gc-lwDragon ptn-4-gcb-lwPtn-4-gc-lwPtn-4-gcb-lw
