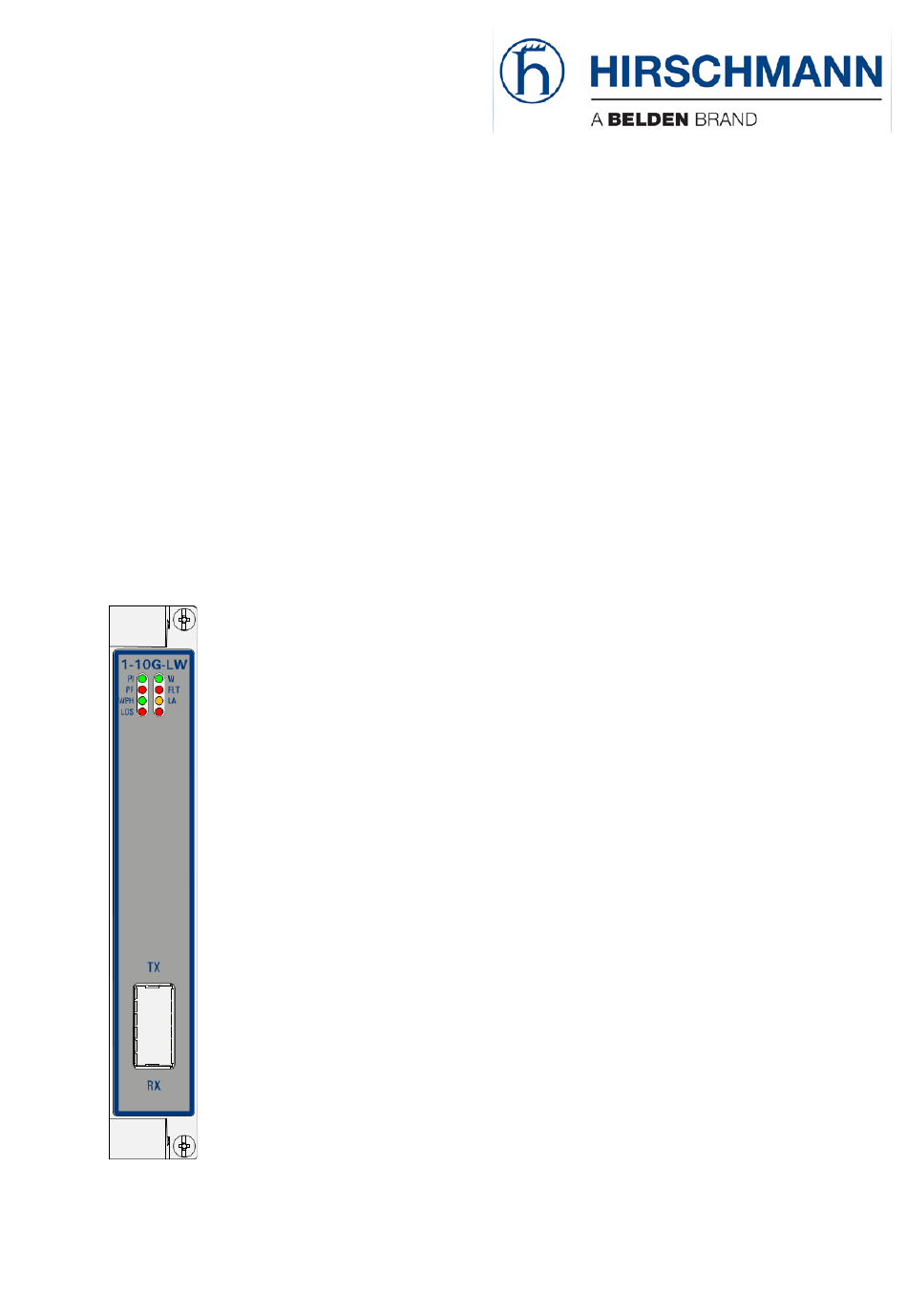

- Page 1 User Manual Installation Dragon PTN Interface Module PTN-1-10G-LW Interface Module PTN-1-10G-LW Technical Support Release 02 11/2018 https://hirschmann-support.belden.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site www.doc.hirschmann.com Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Contents INTRODUCTION ......................5 General ....................5 Manual References ................5 MODULE DESCRIPTION ....................6 Front Panel ................... 6 2.1.1 Insert/Remove Module into/from Node ........... 6 2.1.2 LEDs ......................6 2.1.3 Connectors ....................8 Functional Operation ................8 2.2.1 Media Module for Ethernet: Interfacing to a LAN or WAN Network ..8 2.2.2 LAN/WAN PHY Setting ................ - Page 4 List of Tables Table 1 Manual References ......................5 Table 2 LED Indications In Boot Operation ................... 7 Table 3 LED Indications in Normal Operation ................7 Table 4 Synchronization / Clock Distribution / Network Timing Overview ......... 11 Table 5 Other Specifications ......................14 Interface Module PTN-1-10G-LW Release 02 11/2018...
-
Page 5: Introduction
1. INTRODUCTION 1.1 General This document is valid as of Dragon PTN Release 4.0DR. This document describes the 1-10G-LW interface module (=IFM) which supports 10 Gigabit Ethernet according the IEEE 802.3ae-2002 standard. This standard specifies full duplex point- to-point links. This standard also provides two types of PHY: LAN PHY and WAN PHY. The 10G WAN PHY operates at a data rate compatible with SONET OC-192c. -
Page 6: Module Description
2. MODULE DESCRIPTION 2.1 Front Panel Fastening screw Handle LEDs 1 Optical 10 Gbps Interface Figure 1 Front Panel 2.1.1 Insert/Remove Module into/from Node See ‘Dragon PTN Installation and Operation Manual’ Ref.[2]. 2.1.2 LEDs The meaning of the LEDs depends on the mode of operation (= boot or normal) in which the 1-10G-LW module currently is running. -
Page 7: Table 2 Led Indications In Boot Operation
Table 2 LED Indications In Boot Operation Cycle PI PF W WPH LOS LA Spare LED Slow blinking Fast blinking x : LED is lit / --- : LED is not lit The sub cycle times may vary. The entire boot cycle time [1-->4] takes approximately 2 minutes. Table 3 LED Indications in Normal Operation Color Status... -
Page 8: Connectors
2.1.3 Connectors This module has following port: Port1 = Optical Ethernet port, XFP connector: An XFP transceiver (10 Gigabit Small Form Factor Pluggable) module must be plugged into this port, in order to interconnect the optical fiber with the 1-10G-LW IFM. These XFPs are hot-pluggable and can be replaced from the front, without removing the IFM from the node. -
Page 9: Lan/Wan Phy Setting
HiProvision PC Dragon PTN Node (=Dragon PTN Management) router router Dragon PTN MPLS-TP Network Figure 3 General Example: LAN/WAN WAN: MPLS-TP (on fiber) between XTran nodes 1G LAN: Ethernet (on copper) external devices 10G LAN: Ethernet (on fiber) external devices WAN (via 10G, XFP on fiber) 1-10G-LW 1-10G-LW... -
Page 10: Ethernet Service
Ethernet (LAN Port) MPLS-TP (WAN Port) Ethernet (LAN Port) WAN Port/ Dragon PTN Node with 10G WAN Port 1-10G-LW LAN PHY LAN PHY Dragon 10G WAN Port WAN Port/ WAN PHY WAN PHY DWDM (ROADM) SONET LAN Port/ 10G LAN Port in LAN PHY LAN PHY LAN Port/... -
Page 11: Voice Service
NOTE: The 1-10G-LW IFM has one port that can be used as a LAN or WAN port. For extra LAN or WAN ports, additional IFMs must be installed. 2.2.4 Voice Service The 1-10G-LW IFM port can be configured in the Ethernet part of the Voice service. See Ref. [1] and Ref.[7] in Table 1 for more information on the Voice service. -
Page 12: Mpls-Tp Compliancy
2.2.8 MPLS-TP Compliancy See the CSM manual in Ref.[4], [4b]. 2.2.9 Storm Control on Ethernet LAN Port NOTE: Storm Control is not relevant/supported on WAN Ports; A traffic storm is the growing of excessive network traffic due to Ethernet packets flooding the LAN. -
Page 13: Onboard Interfaces
has one selected MR Manager (MRM) and a number of MR Clients (MRC). The two Dragon PTN nodes act as MRC. See Ref. [1] in Table 1 for more configuration information in HiProvision. HiProvision Dragon PTN Node Entry Node + Ring port Dragon PTN Dragon PTN... -
Page 14: Heat Sink
2.3.1 Heat Sink A heat sink is required for the natural cooling of this 1-10G-LW module. 2.3.2 Straps No user relevant straps. 2.3.3 Rotary DIP Switches a. Hardware Edition The Hardware Edition (labeled as CARD_ID) is set in decimal code using rotary switches S2 to S3 (S3 = most significant). -
Page 15: Abbreviations
4. ABBREVIATIONS BPDU Bridge Protocol Data Unit Conformité Européenne Central Switching Module DWDM Dense Wavelength Division Multiplexing EFM-F Ethernet in the First Mile Over Point-to-Point Fiber Electromagnetic Interference Fault International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IETF Internet Engineering Task Force InterFace Module Internet Service Provider... - Page 16 WAN PHY, Packet over SDH 10 Gigabit Small Form Factor Pluggable Module Interface Module PTN-1-10G-LW Release 02 11/2018...
