Tsurumi Pump F-13 Installation And Operating Instructions

Drainage pump, check valve fitted, light weight, energy efficient, automatic or manual, built-in thermal protection, water-cooled

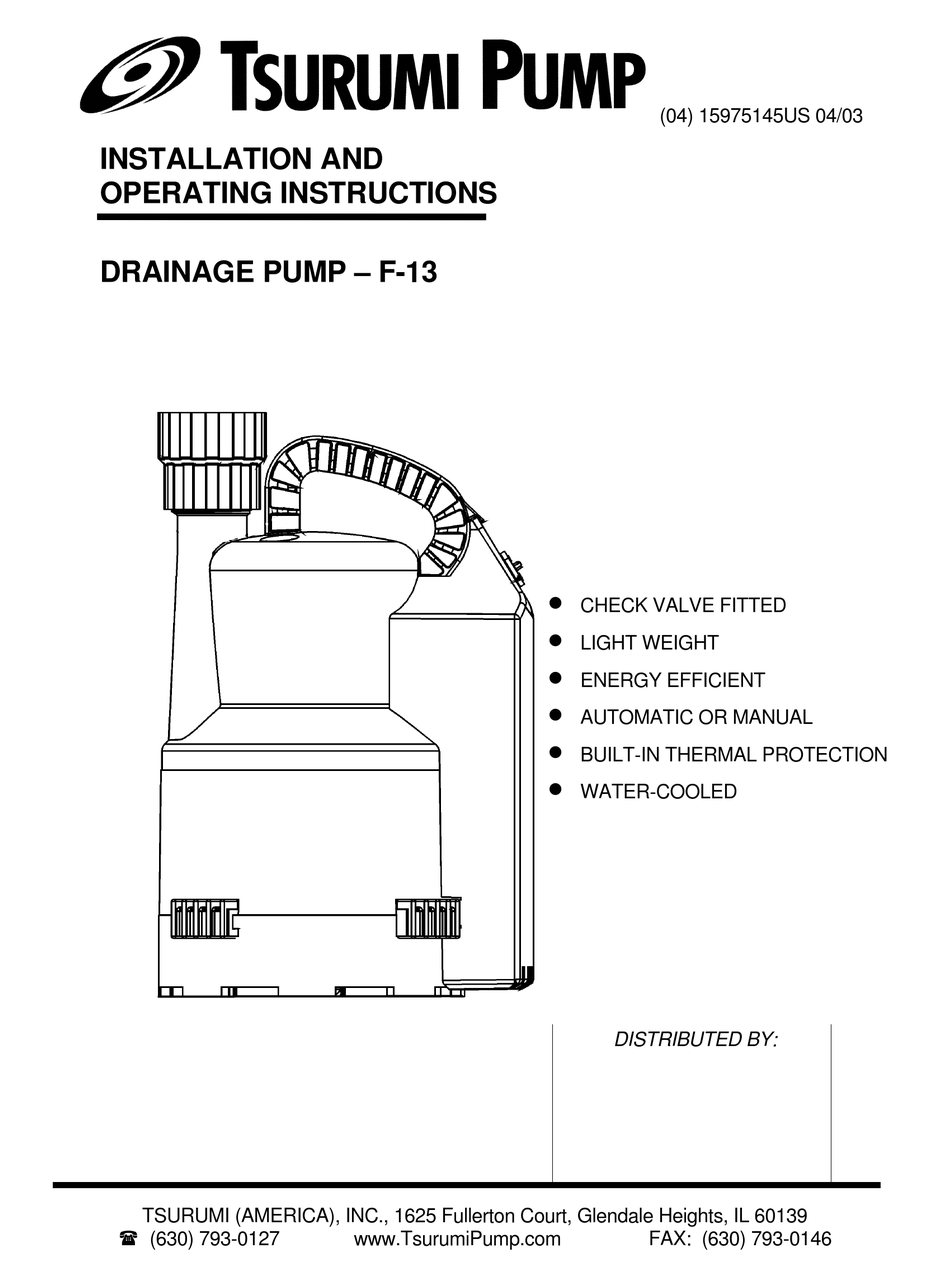

INSTALLATION AND

OPERATING INSTRUCTIONS

DRAINAGE PUMP – F-13

TSURUMI (AMERICA), INC., 1625 Fullerton Court, Glendale Heights, IL 60139

 (630) 793-0127

www.TsurumiPump.com

(04) 15975145US 04/03



CHECK VALVE FITTED



LIGHT WEIGHT



ENERGY EFFICIENT



AUTOMATIC OR MANUAL



BUILT-IN THERMAL PROTECTION



WATER-COOLED

DISTRIBUTED BY:

FAX: (630) 793-0146

Table of Contents

Need help?

Do you have a question about the F-13 and is the answer not in the manual?

Page 1: Installation And Operating Instructions
(04) 15975145US 04/03 INSTALLATION AND OPERATING INSTRUCTIONS DRAINAGE PUMP – F-13  CHECK VALVE FITTED  LIGHT WEIGHT  ENERGY EFFICIENT  AUTOMATIC OR MANUAL  BUILT-IN THERMAL PROTECTION  WATER-COOLED DISTRIBUTED BY: TSURUMI (AMERICA), INC., 1625 Fullerton Court, Glendale Heights, IL 60139 ...
Page 2 APPLICATION Compact submersible drainage pumps from Tsurumi are used where large quantities of clear, rain or dirty water must be pumped quickly and reliably. Permanent installations of pumps include basement sumps for water removal. They are suitable for pumping washing effluent, for the drainage of buildings and for pumping rainwater out of lower level rooms or underpasses.
Page 3 WARRANTY Tsurumi (America), Inc. warrants the F-13 pump to be free from defects in workmanship and material for a period of twelve (12) months from date of sale to end customer. Pumps used in transportable (i.e. contractor / dewatering) applications carry a six (6) month warranty from the date of sale to end customer.
Page 4 TECHNICAL DATA Model F-13 Current Single Phase 3450 Voltage Amps See nameplate Discharge 1¼" /1½" Height 12" (308 mm) Width 7.7" (196 mm) Weight 6.6 lb (3.0 kg) Cable 20 ft. U.L listed F-13...
