3 CONNECTIONS

Wire connections to the TRANSIT Entry are user friendly spring cage terminal
connectors.
Connection procedure with spring cage terminal connectors.
1. Strip wire lead for about 9 mm (
2. Push the screwdriver straight down to release the
spring cage.
screwdriver.
3. Insert the wire lead into the wire terminal.
4. Remove the screwdriver, this clamps the wire.
5. Gently pull on the installed wire to make sure the
connection is reliable.
Note 1: Each connector terminal can accommodate only 1 solid or stranded wire.
Note 2: Wiring is normally done without ferrules. However, it is possible to use
ferrules, provided that they are properly crimped.
See appendix A for recommended maximum and minimum conductor cross
sections and for the recommended wire stripping length.
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO
0.35 inch
Use a slotted, narrow-head
).
Wire
Lead

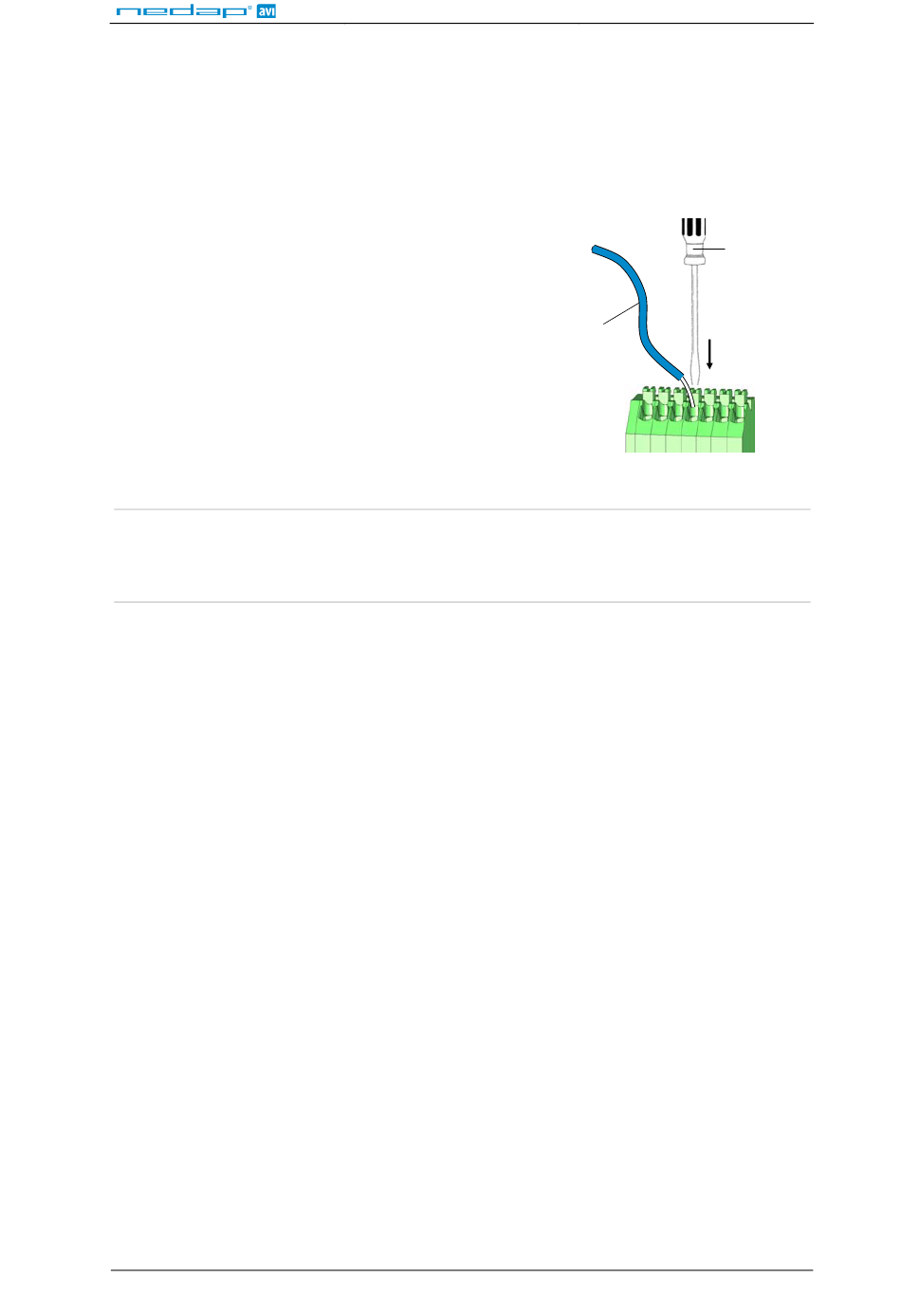

Figure 6: Wiring detail
TRANSIT Entry
Screwdriver
