3.3 DIGITAL I/O

3.3.1 RELAY OUTPUT

The relay output is automatically activated upon identification of a transponder.
This behavior can be changed and configured by means of the firmware. Please
refer to the firmware manual for more details.
The 'smile' on the front cover lights-up simultaneously with the relay
output.
Connections:
NC
Relay contact normally closed
COM
Relay contact common
NO
Relay contact normally open
Contact ratings:
Max. switching current:
Max. switching voltage:
Max. switching power:

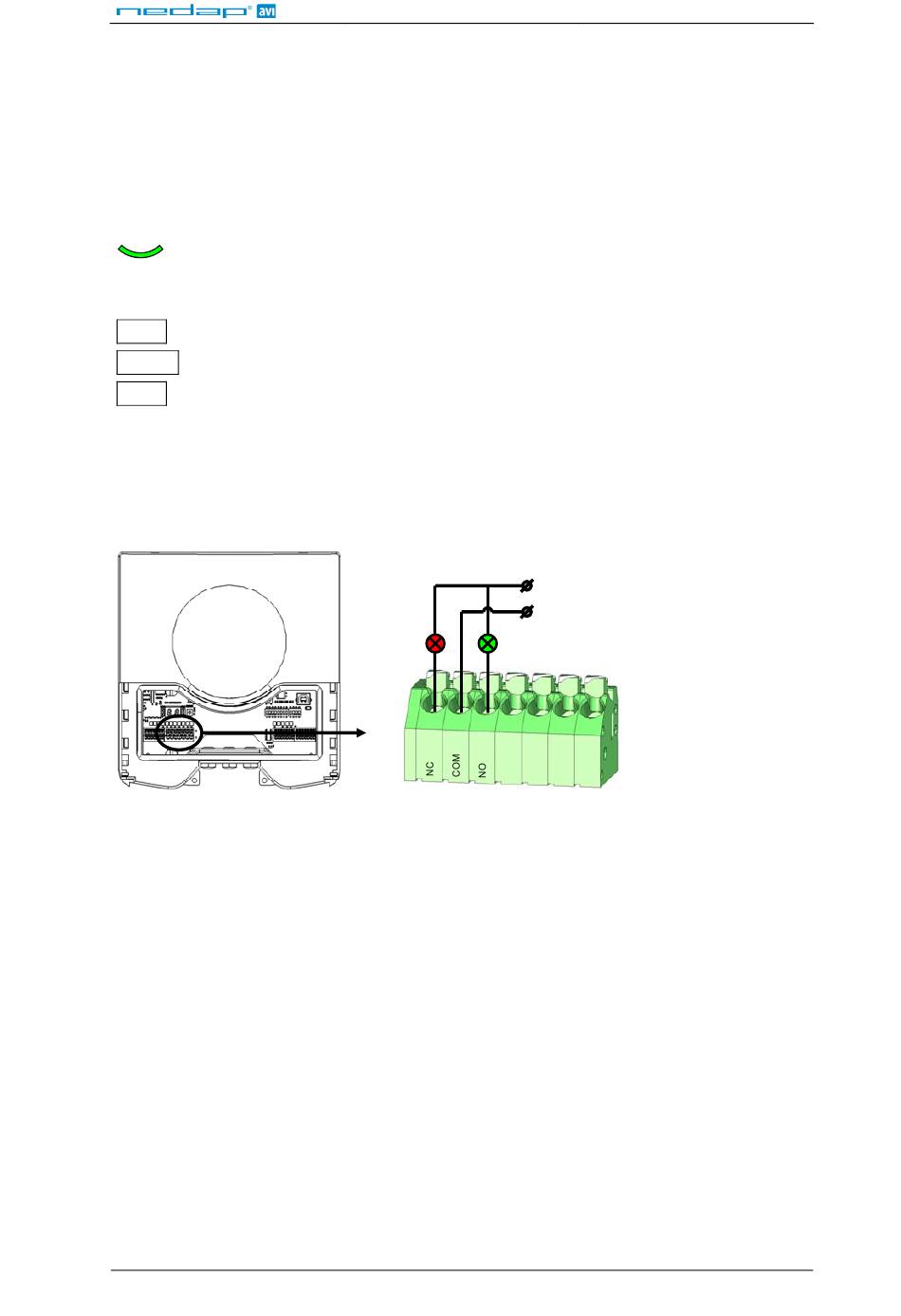

Figure 12: Relay output
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO
2A
250VAC / 220VDC
62.5VA / 60W
CONTACT
SUPPLY
K5
TRANSIT Entry
Page 15 of 27
