3.3.2 READ DISABLE INPUT
The reading of the TRANSIT Entry can be completely disabled with the RDIS input.
This input is commonly used in combination with a sensor (e.g. inductive loop)
that detects the presence of a person or vehicle. Use always a relay contact to
connect the internal 5V to the RDIS input. When the RDIS input is unused the
reader is enabled.
Connections:
RDIS
Read disable input
5V
Internal 5V source for read disable input
Warning:
Using an external 5V supply can damage the unit.

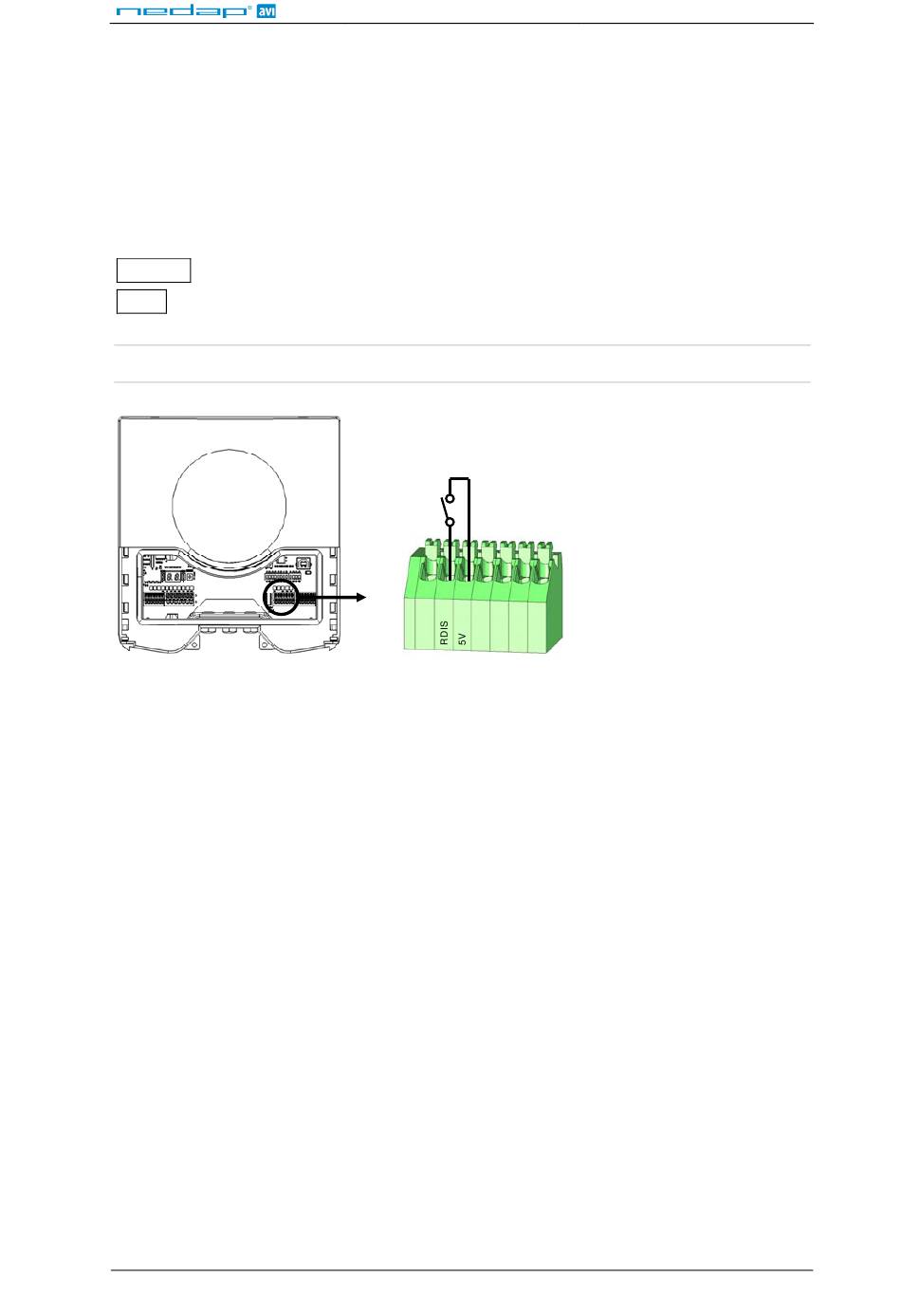

Figure 13: Read disable input
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO
Read disable
input
K3
TRANSIT Entry
Page 16 of 27
