2 INSTALLATION

2.1 SAFETY PRECAUTIONS

The following safety precautions should be observed during normal use, service
and repair.
• The TRANSIT Entry must be connected with safety ground.
• The TRANSIT Entry may only be installed and serviced by qualified service
personnel.
• Disconnect the power supply before removing or installing any parts.
• To be sure of safety, do not modify or add anything to the TRANSIT Entry other
than mentioned in this installation guide or indicated by NEDAP N.V.

2.2 MOUNTING INSTRUCTIONS

The TRANSIT Entry can be mounted to any surface, including directly to metal.
Locate an appropriate position. Use the upper two keyholes (K) to mount the
reader. Open the service cover to secure the reader using the two lower mounting
positions (L).

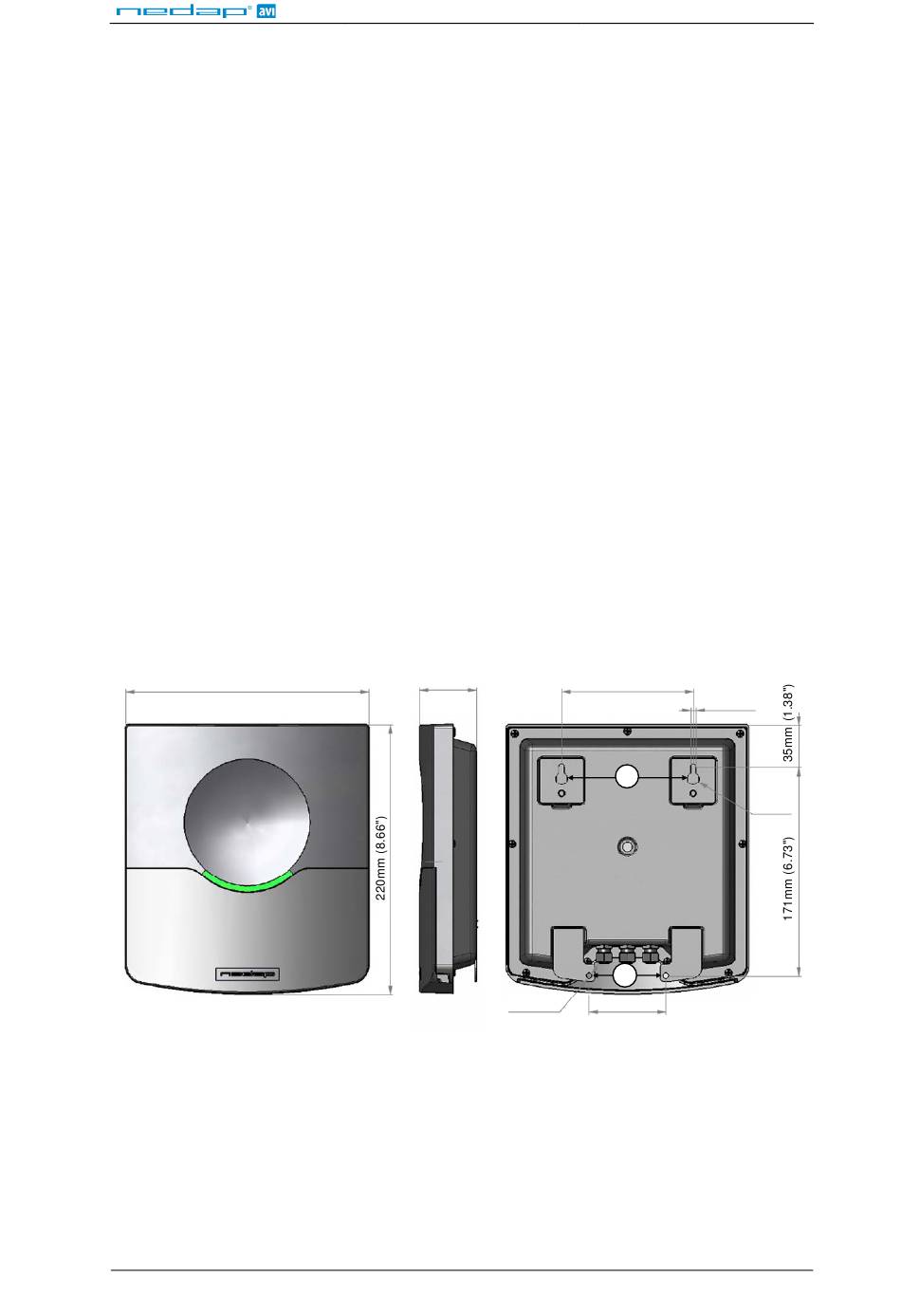

See the picture below for details about the dimensions and the locations of the
mounting positions.
)
200mm (7.87"
service cover
front view
Figure 1: TRANSIT Entry reader dimensions
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO
47mm (1.85")
∅4.5mm
(.17")
side view
TRANSIT Entry
108mm (4.25")
4.5mm (.17")
K
L
63mm (2.48")
rear view
Page 4 of 27
∅5mm
(.20")
