2.5.2 INSTALLATION PROCEDURE
1. Disconnect the power supply.
2. Remove the complete front cover from the TRANSIT Entry.
3. Place the interface board on the 14-pin header K1. Make sure it's firmly
positioned and makes good contact with connector K1.

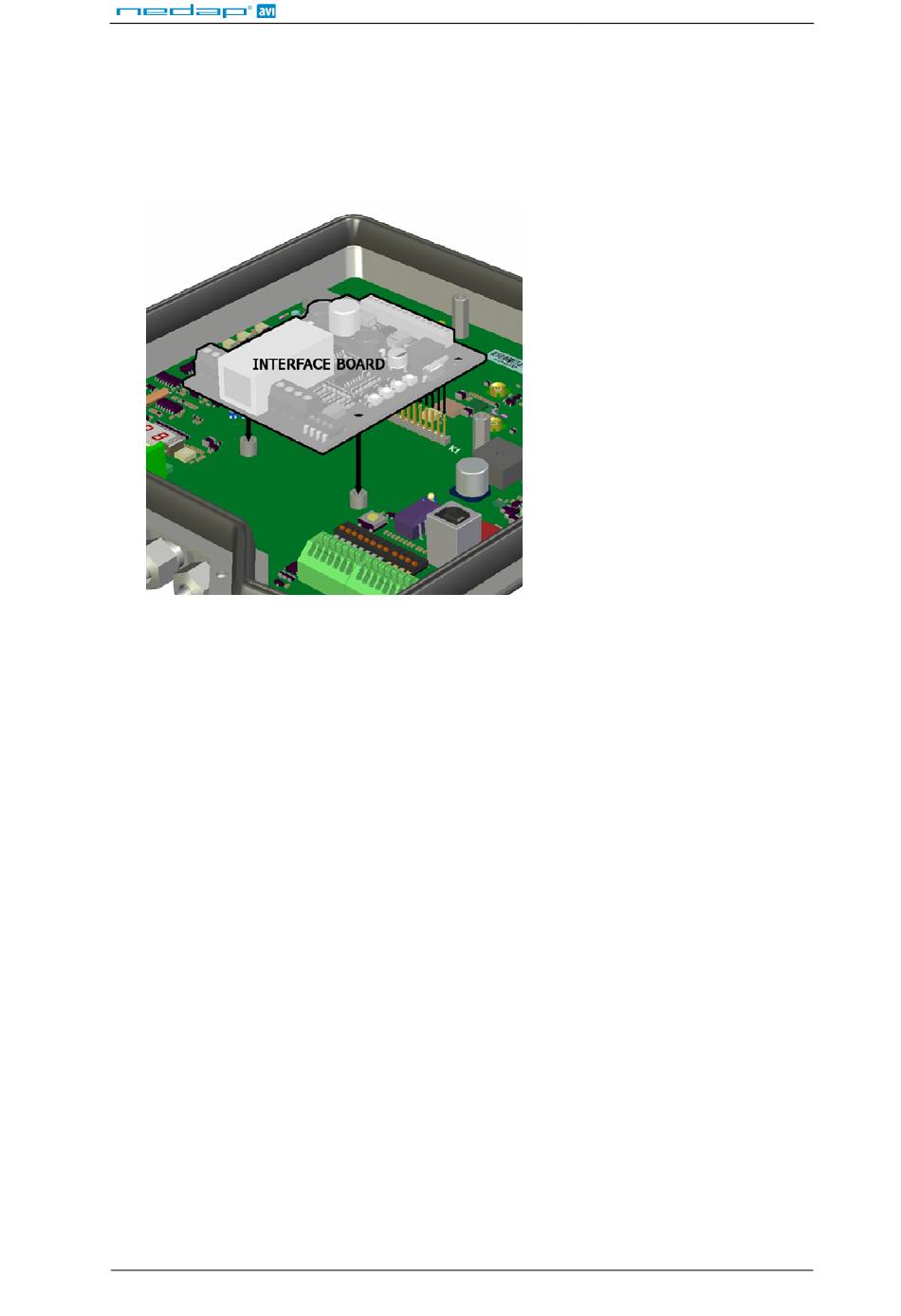

Figure 5: interface board installation
4. Tighten the two screws to fix the board into place.
5. Read the board's installation guide for additional notes like address settings,
jumper settings and wiring details.
6. Replace the front cover on the TRANSIT Entry.
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO
TRANSIT Entry
Page 8 of 27
