4. Configure Tags

4.1

Analog Tag

This example is to configure a Tag that reads an Analog Input (Address
Register 900)
1. Open Internet Explorer.
2. Connect to Project Node.
3. Start WebAccess Configuration.
4. Select Project.
5. Select SCADA Node.
6. Select the Sharp JW10 Device.
7. Select Add Tag.

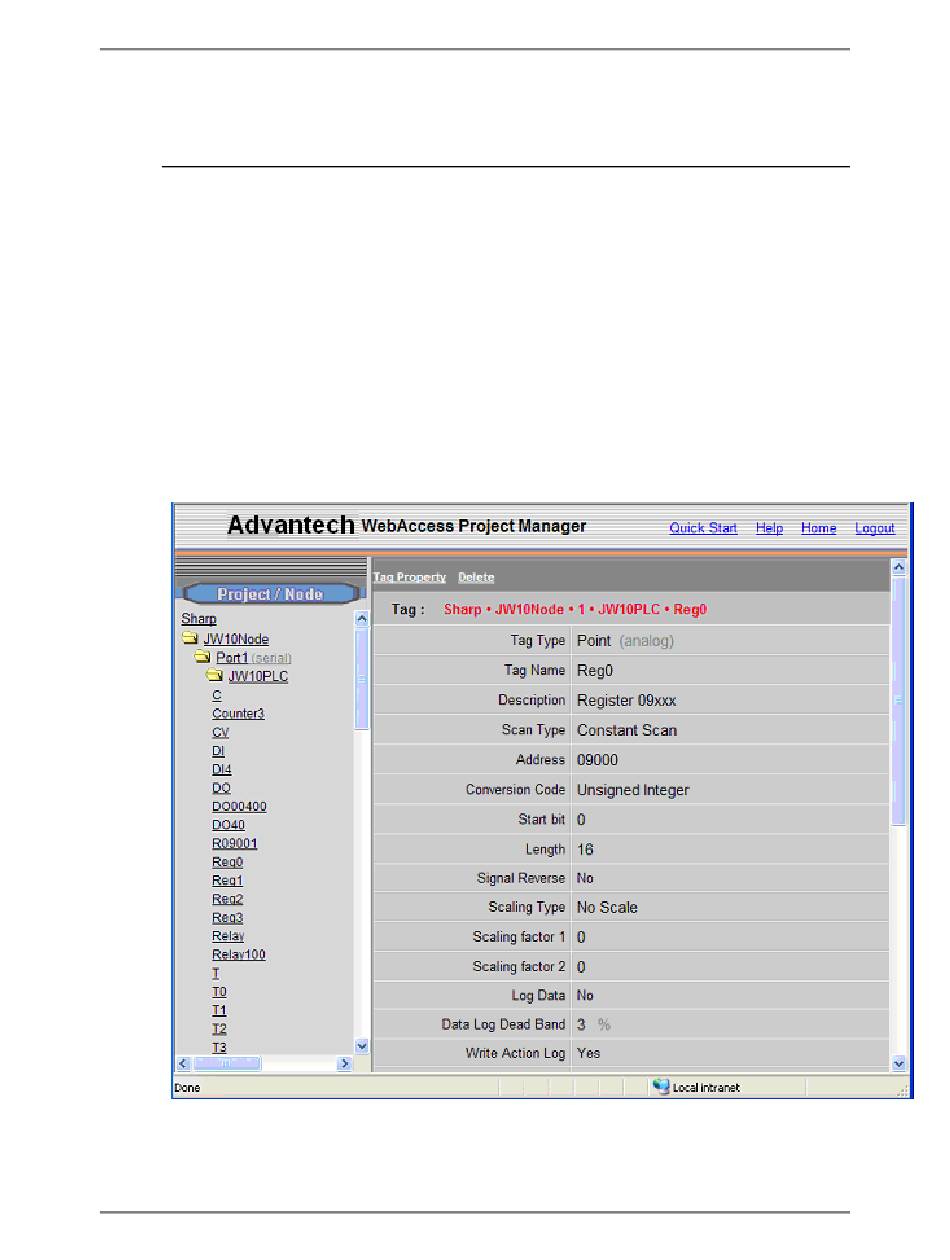

8. From Parameter Pull Down List Select Reg0. This will configure an
Analog Input. Wait for the Page to update.
9. Optionally, select ALARM from the ALARM pulldown list. Wait for the
Page to update with a PINK highlight around alarm (an additional
Alarm Fields at bottom of page).
10. Enter a Tagname users can use to identify this Analog Input
measurement. For example, if this is a Flow measurement, enter
Reg0.
11. Edit the Address to the actual address. From the example, Enter:
