Getting Acquainted with Your Instrument

Getting Acquainted with Your Instrument

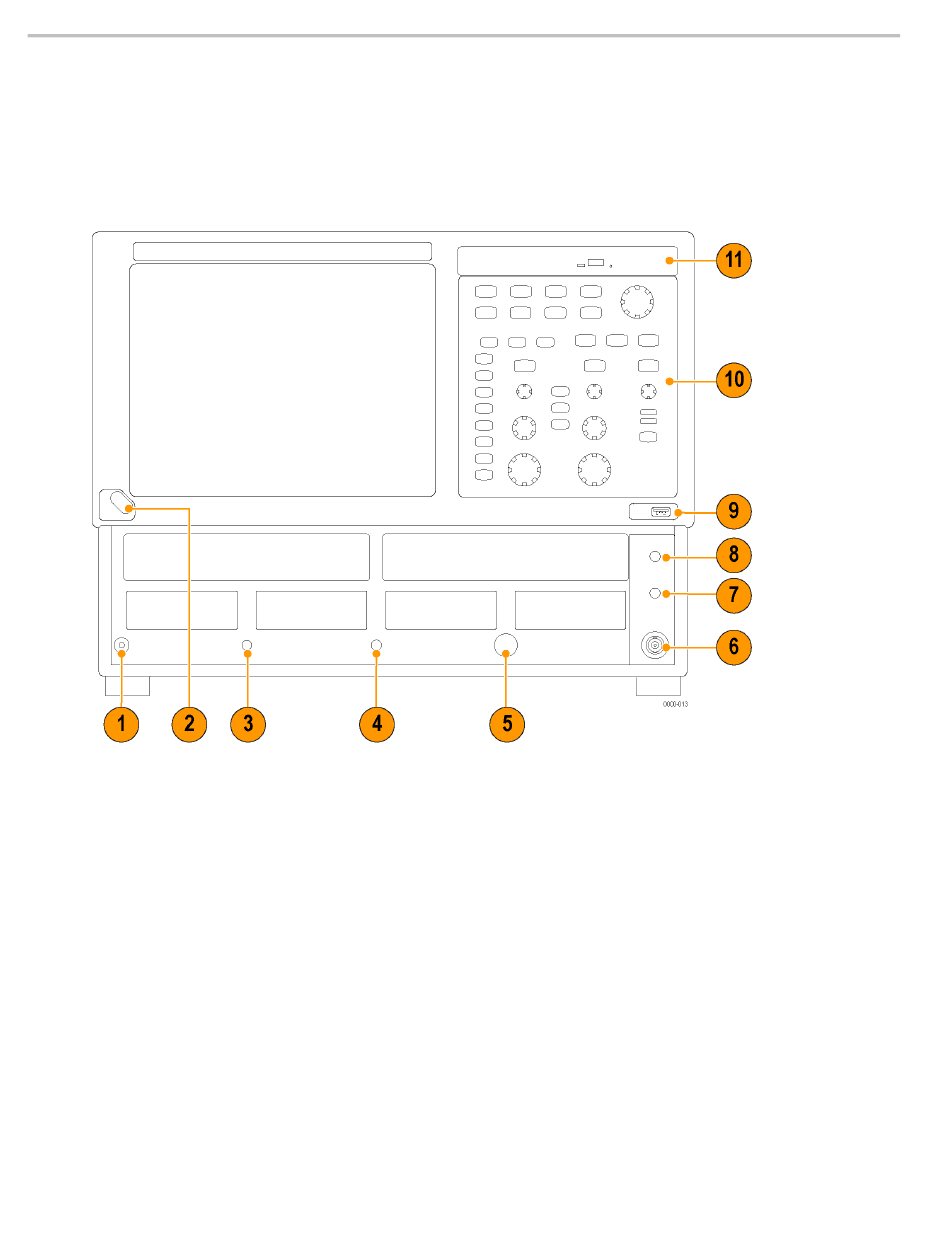

Front Panel

The front panel of your instrument gives you access to the module compartments and the control panel.
1. Antistatic connection terminal (1 MΩ).
2. On/Off switch.
3. Clock Input/Prescale Trigger input.
4. Trigger direct input.
5. Trigger probe power.
6. External 10 MHz reference input.
7. DC calibration output.
8. TDR Clock Out signal.
9. USB port(s).
10. Control panel.
11. DVD-ROM/CD-RW drive.
