Summary of Contents for ROOTS RootsScrub B4545

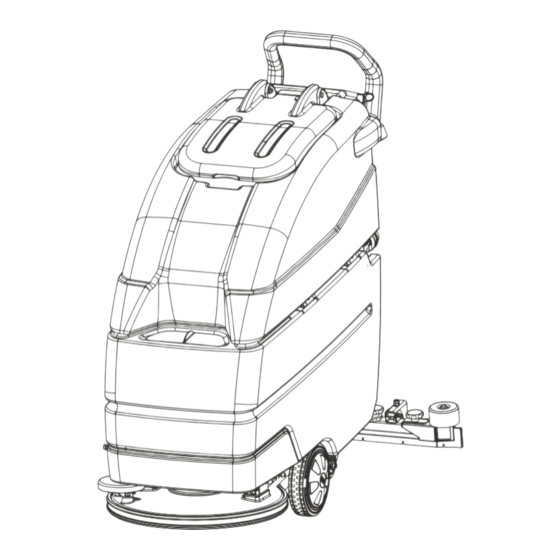

- Page 1 RootsScrub B4545, B4550 & B4560 Walk-Behind Floor Scrubber Drier Battery Read this manual completely and understand the Owner’s Manual instructions before operating the machine. “English Version” RootsScrub B45 Series...
- Page 2 RootsScrub B45 Series...
-
Page 3: Table Of Contents
Operation Squeegee Procedure for Scrubbing Maintenance Battery Instructions Roots Multiclean Ltd (RMCL) is not liable for any legal claims that may arise as a direct or indirect result of the contents of this manual. Roots Multiclean Ltd. RKG Industrial Estate, Coimbatore - 641 006, India. -
Page 4: Introduction
The Owner’s Manual is an integral part of the machine and Usage and Handling must not be misplaced. Roots reserves the right to change the product or contents of Use of the product beyond the specified scope of functioning this manual without prior information. -
Page 5: Know Your Machine
KNOW YOUR MACHINE B 4545 B 4550 B 4560 Disc Type with Disc Type with Twin Disc Type with Straight Squeegee Straight Squeegee Straight Squeegee B 4545 B 4545 Disc Type with Disc Type with Parabolic Squeegee & Parabolic Squeegee & Solenoid Valve Solenoid Valve Type of Brush... -
Page 6: Technical Specification
TECHNICAL SPECIFICATION Description Units B 4545 B 4550 B 4560 Scrubbing width Effective Suction Width Theoretical area coverage 1800 2000 2400 Working Speed, up to km/h Battery Rating V / Ah 12/96 12/96 12/96 Airflow rate L/sec Vacuum Pressure mm of H 1087 1087 1087... -
Page 7: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS - WALK BEHIND SCRUBBER DRIERS Safety & Warning Symbols It is important that operators and all persons likely to use the machine familiarize themselves with all accessories All paragraphs in this manual referring to you personal safety, and controls, as well as their functions, before the safety of your machine and the environment protection commencing operation. - Page 8 GENERAL SAFETY INSTRUCTIONS - WALK BEHIND SCRUBBER DRIERS The operator must always use safety gloves, safety Before operating the machine kindly use these safety helmet, shoes while operating/maintaining the machine. devices: On inclined/tilted surfaces, the tilt angle and the driving direction should not exceed the values given in this a) Shoes manual.
-
Page 9: First Operation
FIRST OPERATION After Unpacking Principle of Operation Verify the machine and accessories with the invoice copy. A squeegee and suitable brushes or pads are required for wet Check the machine for any transit damage, if found contact cleaning of hard floorings. The rotating brush scrubs the floor the branch/dealer immediately. - Page 10 FIRST OPERATION Before Operation Operating & Indicator Elements: Controls - B4545 & B4550 1. Tilt the body of the machine to gain access to the inside of the fresh tank, the tank will stay in its position with a help of a rope assy.
- Page 11 FIRST OPERATION DISPLAY LAYOUT OF LCD Controls - B4545x & B4550x V5.4 LA RootsScrub B 4545 C D2 1 . On Power up- Shows the software version (V5.4) & set LEGEND DESCRIPTION PURPOSE battery type when switched On (while booting) Main Power Initiates power supply to the Switch...
- Page 12 FIRST OPERATION 00 16:10 BATTERY CHARGING 5a. For B4545 & B4550 - Brush Motor & Suction Turbine 9 . On Battery Charging- Displays that the battery is in OFF - The brush motor shuts down immediately charging mode. After the battery is fully charged a “BATTERY FULL”...
-
Page 13: Operation Brush
OPERATION BRUSH Brush Lifting Pedal is used to lift and lower the brush. Ÿ For lowering, first press the pedal a little to outside Ÿ (unlock) and then allow it to move slowly upwards. For lifting, press the pedal slowly downwards and make it Ÿ... -
Page 14: Operation Squeegee
OPERATION SQUEEGEE Parabolic Squeegee The squeegee bracket group fixed to the machine, allowing swiveling and the oscillating movements. The squeegee, Mounting of Squeegee (first time) protruding at the side, evades obstacles in the machines path Lift squeegee bracket group (3) Ÿ... -
Page 15: Procedure For Scrubbing
OPERATION SQUEEGEE Raising / Lowering the Squeegee Use cleaning solution suitable for automatic machines (low foaming) in order to preclude To lower the squeegee pull the handle up from the slot Ÿ damages at the suction turbine. We recommend our and lower squeegee. - Page 16 PROCEDURE FOR SCRUBBING After lowering the brush move the machine Check the strainer upstream of the intake opening in the Ÿ immediately; otherwise the brush might leave fresh water tank; clean if required, as otherwise the traces on the floor. Lift the squeegee during reverse suction efficiency will be affected.
-
Page 17: Maintenance
When brush motor trips identify the cause and correct it before trying to run the machine. factory - for reasons of safety, only genuine Roots spare parts The fuses can be changed by removing the rear panel may be used. - Page 18 MAINTENANCE - Troubleshooting Problem Cause Remedy No power - nothing works Faulty power switch Contact service Battery need to be recharged Recharge battery Faulty battery Replace battery Loose battery cable Tighten loose cable Main fuse blown Replace the fuse Main fuse blown Replace the fuse Faulty brush motor or loose cable Contact service...
-
Page 19: Battery Instructions
BATTERY INSTRUCTIONS Before using the machine Any splashes of acid in the eyes or on the Ÿ skin must be rinsed throughly with plenty of Ensure the battery is in fully charged condition. Ÿ clear pure water. Check the battery electrolyte level, if required refill it. Ÿ... - Page 20 BATTERY INSTRUCTIONS 3. Temperature Lead Acid (LA) Battery Instructions: The battery temperature of 30 °C is rated temperature. 1. Kindly ensure that the Warranty certificate of the battery is Higher temperatures shorten the service life and lower available at your end. temperatures reduce available capacity.
- Page 21 BATTERY INSTRUCTIONS Disposal of Batteries Battery Specifications: Type - Lead Acid Volts - 12V/96Ah No of batteries - 2 per machine Charger Specifications: Old batteries with this sign are recyclable economic Type - On Board goods and should be brought back into the Rating - 20 Amps recycling process.
- Page 22 RootsScrub B45 Series...
- Page 23 Roots Multiclean Ltd. R.K.G. Industrial Estate, Ganapathy, Coimbatore - 641 006, India. Phone: +91 (422) 4330 330, E-mail: rmclsales@rootsemail.com Web: rootsmulticlean.in, Toll Free: 1800 41 99 77 9 RootsScrub B45 Series...
